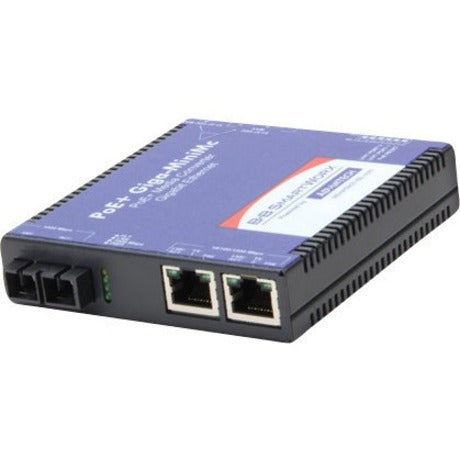

Advantech IMC-390 Transceiver/Media Converter

Advantech IMC-390 Transceiver/Media Converter

SKU: 1067670401      MFR: Advantech Co. Ltd

Product Description

Advantech IMC-390 Transceiver/Media Converter - 2 x Network (RJ-45) - 2x PoE+ (RJ-45) Ports - 1 x SC Ports - Single-mode - Gigabit Ethernet - 10/100/1000Base-T - Wall Mountable DIN Rail Mountable Desktop

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-390-SM

Features

  • Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards
  • Serves as a power sourcing equipment (PSE) device
  • Supports jumbo frame functionality (up to 10240 bytes)
  • Supports multiple mounting options (desktop DIN rail or wall-mount)
  • Features in configurable PoE reset on fiber LOS
  • Supports Link Fault Pass Through (LFPT)

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Product FamilyIMC-390
Number of PoE+ (RJ-45) Ports2
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports3
PoE Port TypePSE
Brand NameAdvantech
Form FactorWall Mountable
Network Technology10/100/1000Base-T
Maximum Distance Supported9.32 Mile
Power SourceAC Adapter
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height0.8"
Width3.6"
Depth3.8"
Product SeriesIMC-390
ManufacturerAdvantech Co. Ltd
Product NameIMC-390 Transceiver/Media Converter
Manufacturer Part NumberIMC-390-SM
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationIntroduction

The IMC-380 and IMC-390 series are compact multi-port media converters that support both IEEE802.3at PoE+ and IEEE802.3af PoE standards. These unmanaged plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks.

Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver 1x9 uplink port for the network connection the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W.

The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair copper interface) and FX LinkLoss (Fiber fiber interface) from both local and remote IMC network media converters when used in pairs. This feature when enabled will pass a link fault through the device at each segment. If a link fails on one interface of the media converter the media converter will force the link down on its link partner and then forward it to the next interface.
Weight (Approximate)15.87 oz
