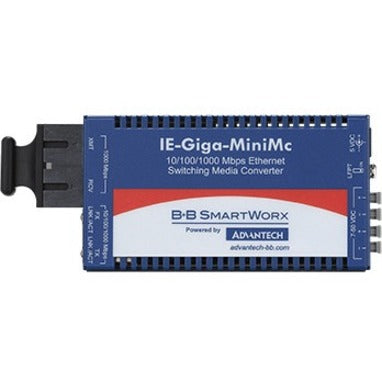

Advantech Industrial Grade 10/100/1000 Mbps Miniature Media Converter

Advantech Industrial Grade 10/100/1000 Mbps Miniature Media Converter

SKU: 1063829623      MFR: Advantech Co. Ltd

Product Description

Advantech Industrial Grade 10/100/1000 Mbps Miniature Media Converter - 1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Gigabit Ethernet - 10/100/1000Base-TX - DIN Rail Mountable Wall Mountable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-370I-SST-PS-A

Features

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature range (IMC-370I series)
  • Provides status LED
  • NEMA TS2 for traffic control
  • Supports multiple power options: AC or DC adapter and dual USB cable
  • Supports Link Fault Pass Through (LFPT)
  • Centralized powered IMC-318I chassis

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyGigabit Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair
Total Number of Ports2
SC Port TypeDuplex
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height0.8"
Width1.8"
Depth3.4"
Product SeriesIMC-370I
Brand NameAdvantech
Form FactorDIN Rail Mountable
ManufacturerAdvantech Co. Ltd
Product NameIndustrial Grade 10/100/1000 Mbps Miniature Media Converter
Network Technology10/100/1000Base-TX
Manufacturer Part NumberIMC-370I-SST-PS-A
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-370 series offers the most compact media converters. They can extend the 10 and 100Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100 auto negotiation on the copper port and 100Mbps full-duplex on the fiber port the IMC-370 series serves as a media and data rate converter that have NEMA TS2 rating making it ideal for use in traffic applications.

The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.

The IMC-370I supports plug-n-play functionality auto negotiation and AutoCross operation. It can be powered by AC/DC power dual USB cable or via installation in the centrallypowered media converter chassis.
Maximum Distance Supported9.32 Mile
Power SourcePower Adapter
Package Contents
  • Industrial Grade 10/100/1000 Mbps Miniature Media Converter
  • Power Adapter
Weight (Approximate)11.29 oz
Product FamilyIMC-370I
