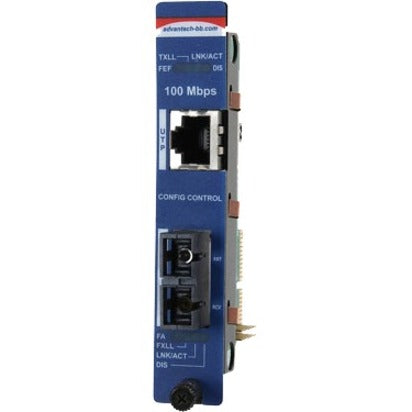

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series

SKU: 1062373333      MFR: Advantech Co. Ltd

Product Description

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series - 1 x Network (RJ-45) - 1 x SC Ports - Fast Ethernet - 100Base-T 100Base-X - Hot-swappable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-751-SSR

Features

  • Variety of choices: multi-mode single-mode and single-strand fiber including SFP form factor
  • Modular hot-swappable architecture reduces operational costs associated with product installation upgrades and maintenance
  • Provides modules with SFP transceivers that support extended operating temperature
  • SNMP manageable
  • Supports configuration control
  • Supports Link Fault Pass Through (LFPT)

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyIMC-751
Number of SC Ports1
Media Type SupportedTwisted Pair
Total Number of Ports2
Brand NameAdvantech
Form FactorHot-swappable
Network Technology100Base-T
Maximum Distance Supported12.43 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height4.2"
Width0.8"
Depth2.8"
Product SeriesIMC-751
ManufacturerAdvantech Co. Ltd
Product NameSlide-In Modular Media Converter 10/100Mbps to Fiber Series
Manufacturer Part NumberIMC-751-SSR
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView Telnet or CLI while installed in a IMC-71x series chassis.

Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.

The IMC-754I-SFP converter is protocol-independent with dual SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber. The SFP port must use an SFP of the same speed while allowing for different fiber types. Additionally the IMC-754I-SFP is an industrial equipment device. The unit operates in environments that demand extended operating temperatures.
Weight (Approximate)3.88 oz
View full details
$371.99 USD
$371.99
Sale Sold out

Dropship

Get it by Sun, Jan 05 - Fri, Jan 10


Update


Shipping calculated at checkout.

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series - 1 x Network (RJ-45) - 1 x SC Ports - Fast Ethernet - 100Base-T 100Base-X - Hot-swappable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-751-SSR

Features

  • Variety of choices: multi-mode single-mode and single-strand fiber including SFP form factor
  • Modular hot-swappable architecture reduces operational costs associated with product installation upgrades and maintenance
  • Provides modules with SFP transceivers that support extended operating temperature
  • SNMP manageable
  • Supports configuration control
  • Supports Link Fault Pass Through (LFPT)

Product Details

Product TypeTransceiver/Media Converter
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Product FamilyIMC-751
Number of SC Ports1
Media Type SupportedTwisted Pair
Total Number of Ports2
Brand NameAdvantech
Form FactorHot-swappable
Network Technology100Base-T
Maximum Distance Supported12.43 Mile
Environmentally FriendlyYes
Environmental CertificationRoHS
Fiber Optic Wavelength1310 nm
Country of OriginTaiwan
Height4.2"
Width0.8"
Depth2.8"
Product SeriesIMC-751
ManufacturerAdvantech Co. Ltd
Product NameSlide-In Modular Media Converter 10/100Mbps to Fiber Series
Manufacturer Part NumberIMC-751-SSR
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView Telnet or CLI while installed in a IMC-71x series chassis.

Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.

The IMC-754I-SFP converter is protocol-independent with dual SFP ports which can provide a single conversion between different wavelengths or single-mode and multi-mode fiber single-mode to single-mode fiber or multi-mode to single-strand single-mode fiber. The SFP port must use an SFP of the same speed while allowing for different fiber types. Additionally the IMC-754I-SFP is an industrial equipment device. The unit operates in environments that demand extended operating temperatures.
Weight (Approximate)3.88 oz
