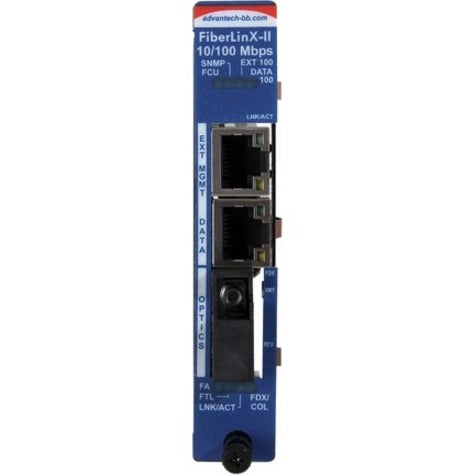

• Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series
    Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series
1 1

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series

SKU: 1062373338      MFR: Advantech Co. Ltd

Product Description

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Fast Ethernet - 10/100Base-T 10/100Base-X - Hot-swappable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-762-SSET

Features

  • SNMP manageable
  • OAM IEEE802.3ag/ah (operation administration and management)
  • Supports per-port bi-directional bandwidth control
  • Supports powerful LinkLoss FiberAlert and Loopback troubleshooting functions
  • All management traffic remains isolated from the remote LAN
  • The modular hot-swappable architecture reduces operational costs associated with product installation upgrades and maintenance

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
Fiber Optic Wavelength1550 nm
Height4.2"
Width0.8"
Depth2.8"
Product SeriesIMC-760
Brand NameAdvantech
Form FactorHot-swappable
ManufacturerAdvantech Co. Ltd
Product NameSlide-In Modular Media Converter 10/100Mbps to Fiber Series
Network Technology10/100Base-T
Manufacturer Part NumberIMC-762-SSET
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting including OAM (operation administration and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.

The SNMP software iView2 allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run providing vital information on link conditions and reporting data on traffic statistics. With iView2 the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
Maximum Distance Supported24.85 Mile
Weight (Approximate)3.88 oz
Product FamilyIMC-760
View full details
$631.99 USD
$631.99
Sale Sold out

Dropship

Get it by Sun, Jan 05 - Fri, Jan 10


Update


Shipping calculated at checkout.

Advantech Slide-In Modular Media Converter 10/100Mbps to Fiber Series - 1 x Network (RJ-45) - 1 x SC Ports - Single-mode - Fast Ethernet - 10/100Base-T 10/100Base-X - Hot-swappable

Manufacturer : Advantech Co. Ltd

Manufacturer Part No : IMC-762-SSET

Features

  • SNMP manageable
  • OAM IEEE802.3ag/ah (operation administration and management)
  • Supports per-port bi-directional bandwidth control
  • Supports powerful LinkLoss FiberAlert and Loopback troubleshooting functions
  • All management traffic remains isolated from the remote LAN
  • The modular hot-swappable architecture reduces operational costs associated with product installation upgrades and maintenance

Product Details

Product TypeTransceiver/Media Converter
Environmentally FriendlyYes
Environmental CertificationRoHS
Ethernet TechnologyFast Ethernet
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedOptical Fiber
Fiber Mode SupportedSingle-mode
Total Number of Ports2
Fiber Optic Wavelength1550 nm
Height4.2"
Width0.8"
Depth2.8"
Product SeriesIMC-760
Brand NameAdvantech
Form FactorHot-swappable
ManufacturerAdvantech Co. Ltd
Product NameSlide-In Modular Media Converter 10/100Mbps to Fiber Series
Network Technology10/100Base-T
Manufacturer Part NumberIMC-762-SSET
Manufacturer Website Addresshttp://www.advantech.com
Marketing InformationThe IMC-760 series of intelligent media converters connect a host/remote Ethernet network over a fiber optic or CAT5 copper connection. It combines media conversion with an advanced-feature set for network management and troubleshooting including OAM (operation administration and management). Administrators can observe the end-points over the fiber segment between them as a single management entity. Bandwidth scalability and support for MIBs II makes this modular device a cost-effective solution.

The SNMP software iView2 allows for remoteconfiguration and alerts administrators to any potential problems on the long-haul fiber run providing vital information on link conditions and reporting data on traffic statistics. With iView2 the central location can manage all host/remote pairs installed in the IMC-71x series with the single IP address of the chassis.
Maximum Distance Supported24.85 Mile
Weight (Approximate)3.88 oz
Product FamilyIMC-760
