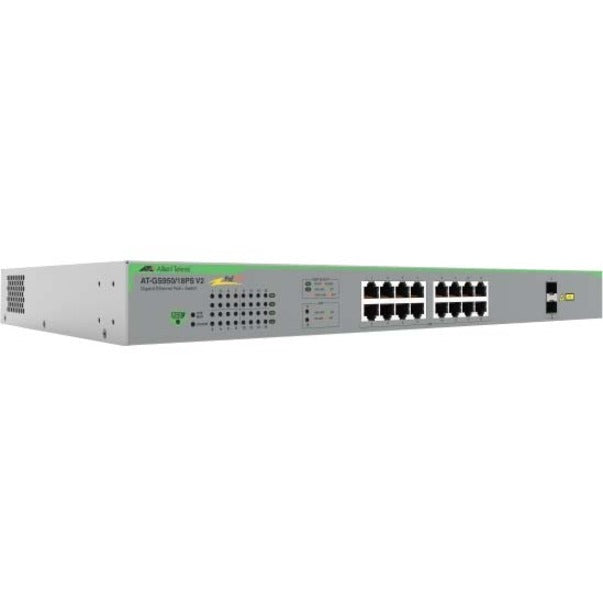

Allied Telesis GS950/18PS V2 Ethernet Switch - 16 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T 100/1000Base-X - 2 Layer Supported - Modular - 2 SFP Slots - 75 W Power Consumption - 185 W PoE Budget - Twisted Pair Optical Fiber - PoE Ports - Wall Mountable Rack-mountable Desktop

Manufacturer : Allied Telesis Inc

Manufacturer Part No : AT-GS950/18PS V2-10

Features

• VLAN: IEEE 802.1Q tagged - Port-based - Up to 256 groups
• Quality of Service Classification: IEEE 802.1p tagging - Port-based priority - Four priority queues per port
• IP Multicast Support (IPv4) - IGMP snooping (v1/v2) - Static multicast group (up to 256) - Spanning-Tree IEEE 802.1d/w/s
• IEEE 802.3ad Link Aggregation: Manual - LACP
• IEEE 802.1x Port-based MAC-based and Network Access Control: Local authentication server (MD5 only) - Remote authentication through RADIUS - Dynamic VLAN assignment - RADIUS Client
• Other: IEEE 802.3x flow control or HOL blocking prevention ( when flow control is off) - Port mirroring - Destination MAC filtering - Ingress/egress rate limiting - Broadcast storming control - 100 FX SFP support - Jumbo Frames - up to 10K
• Management Features: SSH - Telnet - Web-based configuration - CLI configuration - SNMP trap view - LLDP - Firmware upgrade by FTP and HTTP - Configuration backup/restore by FTP and HTTP - Factory reset - Password access control and restricted - IP access list - SNMPv1/v2c/v3 - DHCP client - Syslog support - System time configuration (SNTP manual) - Statistics Charts in Web
• MIBs : RFC 1213 MIB-II - RFC 1643 Ethernet MIB - RFC 1493 Bridge MIB - RFC 2131 DHCP client - Private Enterprise MIB (Allied Telesis provides the spec)
• RMON Groups (1 2 3 9): Stats - History - Alarms - Events
• ACL: Support (number of entries 188)
