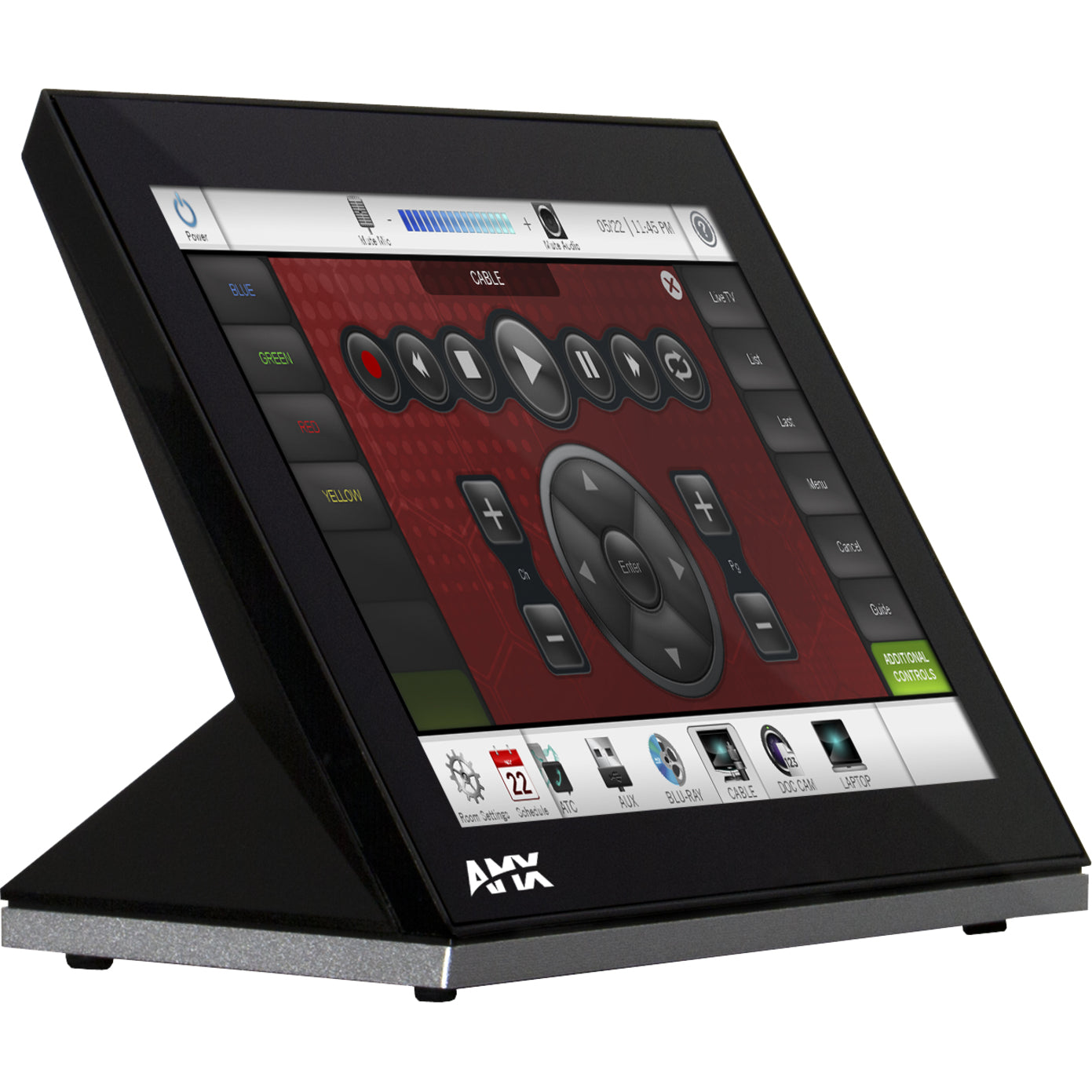

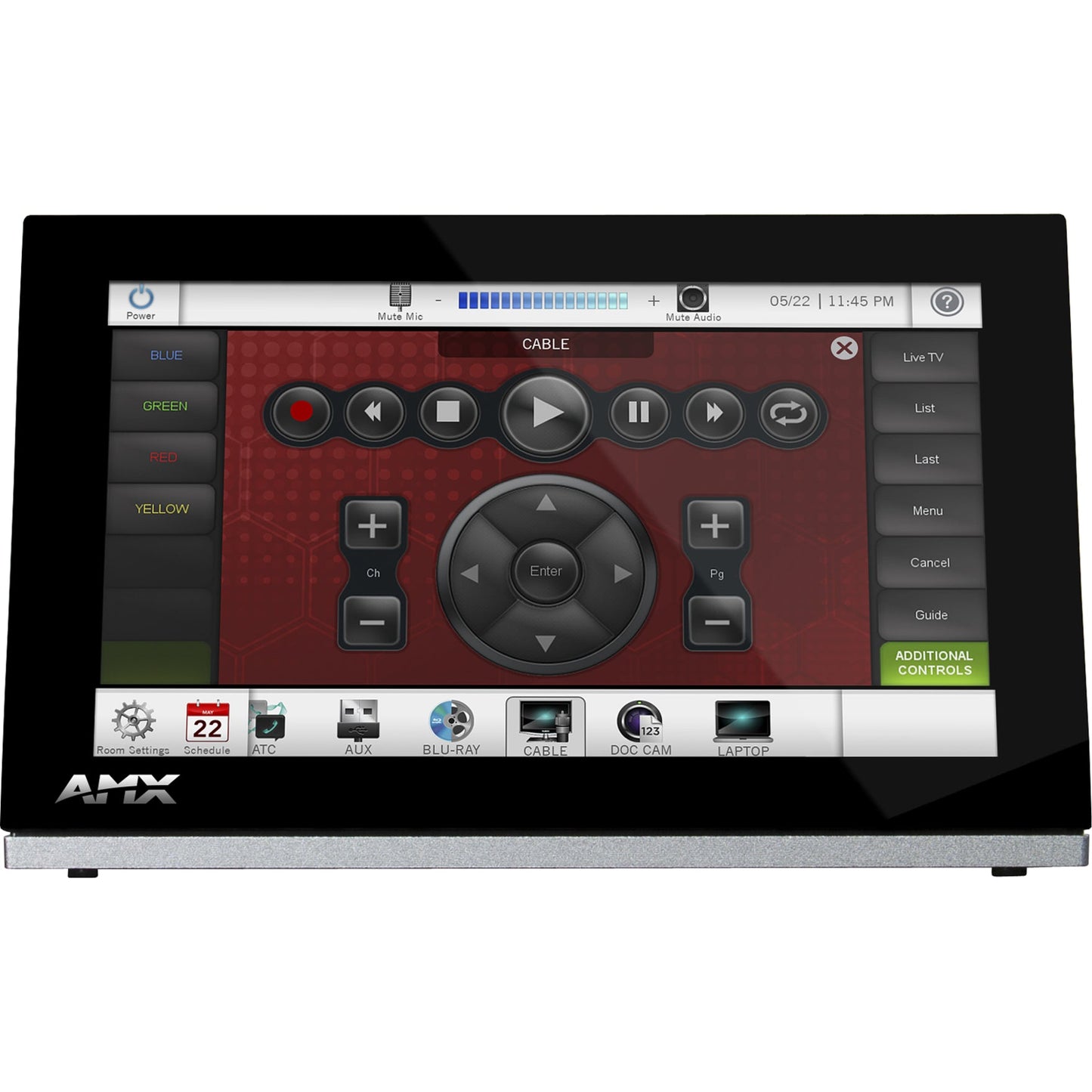

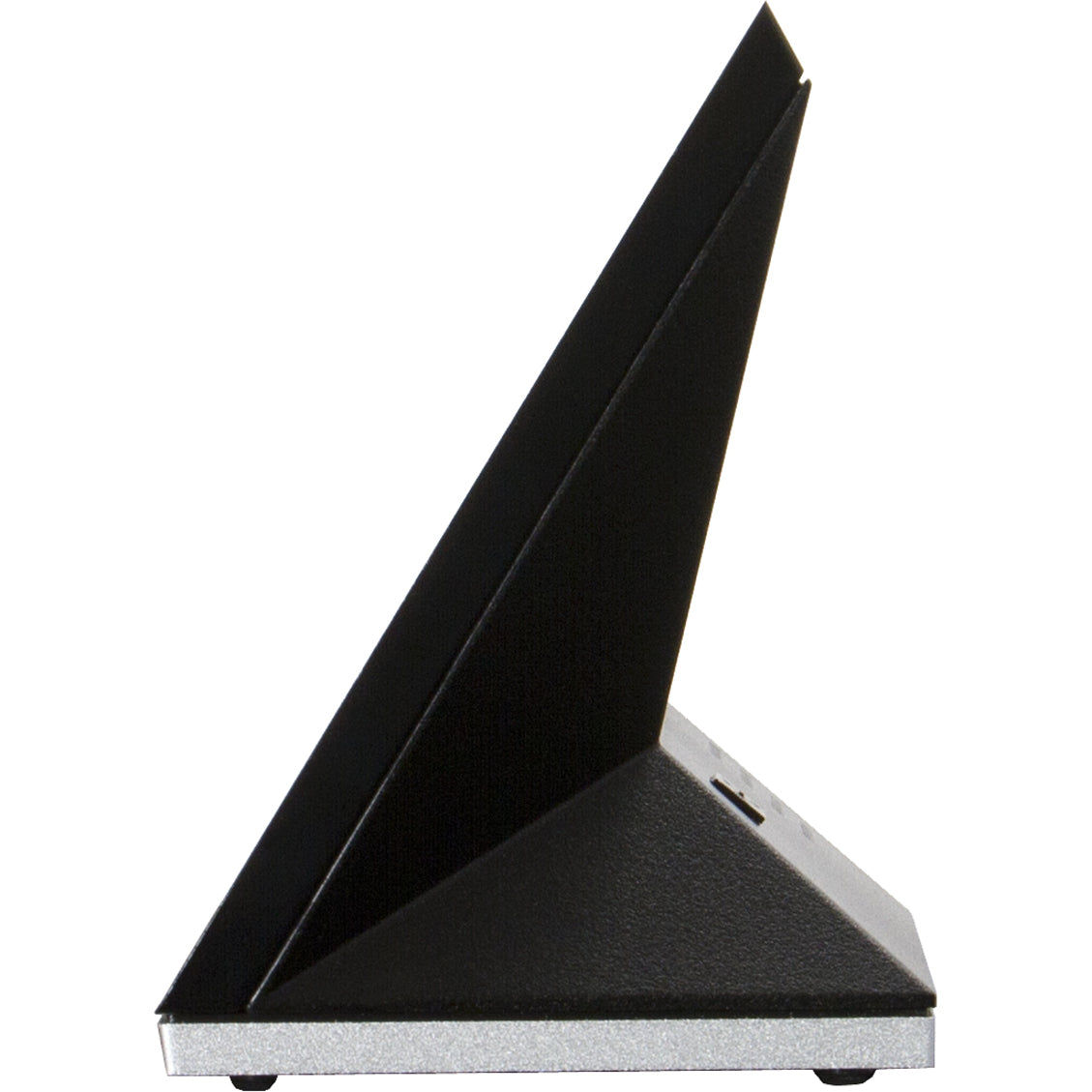

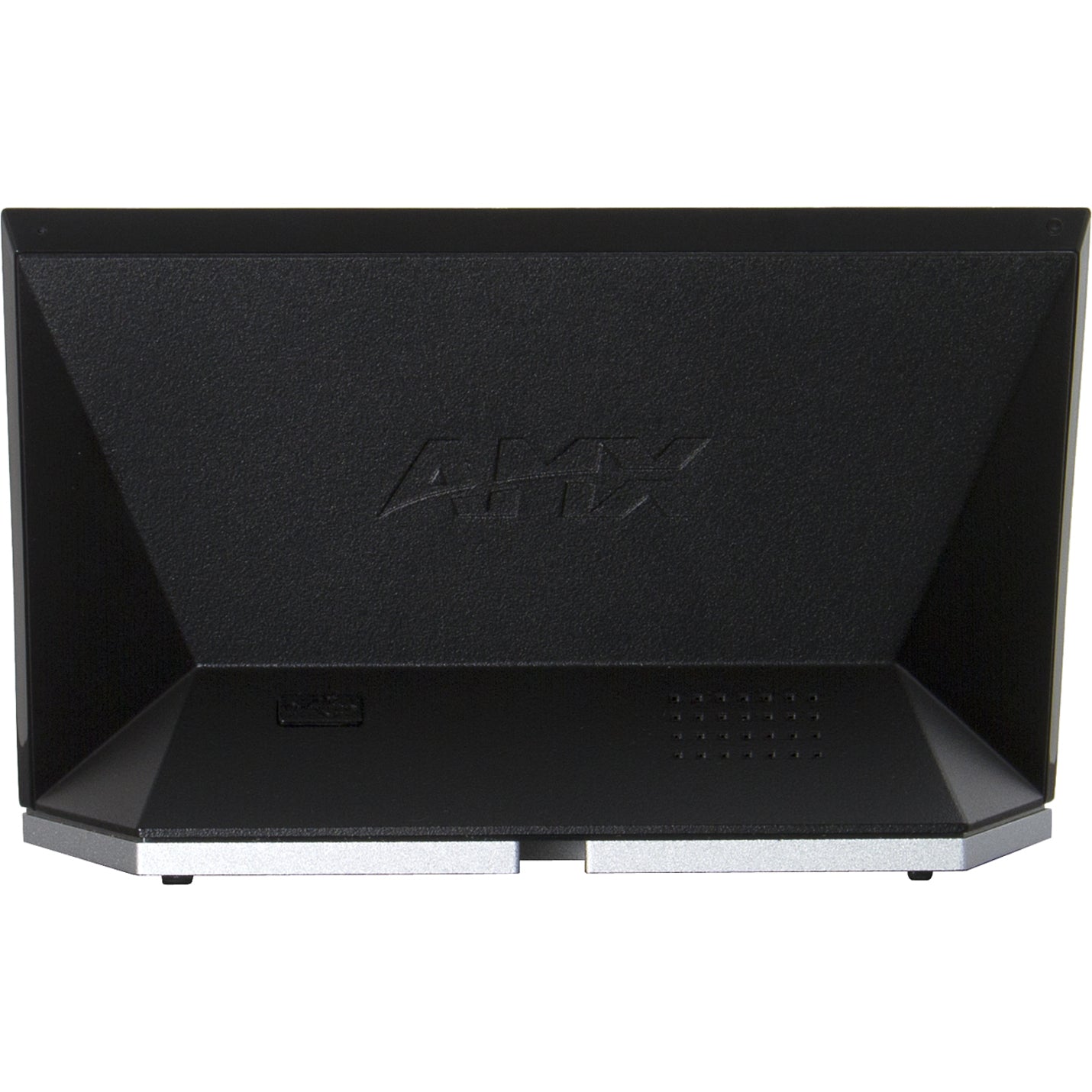

• 7" Modero S Series Tabletop Touch Panel
• USB Port Cover Kit

• Architectural Design Consistency - Install both Modero S and Modero X touch panels throughout a facility for consistent style on any budget
• Secure Table Mounting Option - Our beautifully styled secure mounting plate attaches to the Modero S tabletop touch panels and secures with under-table tamper resistant bolts making it virtually theft proof; if it's not possible or desirable to mount the touch panel to the table the secure plate can also be used in conjunction with a Kensington Lock or mount it and use the lock together for extra security
• Powerful Graphics - Powered by G4 the Modero S Series features streaming video and brilliant 24-bit color depth
• Full-On Power Consumption: 13 W
• Display Type: TFT Active Matrix Color LCD with Fringe Field Switching (FFS) - Wide viewing angle technology
• Resolution: 1024x600
• Aspect Ratio: 16:9
• Brightness: 400 cd/m2
• Contrast Ratio: 800:1
• Color Depth: 16.7M colors
• Illumination: LED
• Touch Overlay: Resistive
• View Angle: 89°/89°/89°/89° (Up/Down/Left/Right)
• SDRAM: 512 MB
• Flash: 4 GB
• Maximum Project Size: 2.4 GB flash available to user
• Ethernet: 10/100 port RJ-45 connector. Supported IP and IP-based protocols: UCP TCP ICMP ICSP IGMP DHCP Telnet FTP DNS RFB (for VNC) HTTP
• USB: (1) USB host 2.0 Type A port: Firmware upgrade touch panel file transfer JPEG image viewer HID Peripherals USB audio output for headsets
• Remote Management: VNC Server G4 Web Control
• Panel-to-Panel Conferencing: Receives audio and video and returns audio for panel-to-panel communication
• Audio Conferencing: Audio (Full Duplex Intercom)
• Sleep Button: Sleep button to activate sleep mode and powering off. Also provides access to setup pages (can be disabled)
• Ethernet: 10/100 port RJ-45 connector
• USB: (1) USB host 2.0 Type A port
• Power: PoE (Power over Ethernet) 802.3af class 3
