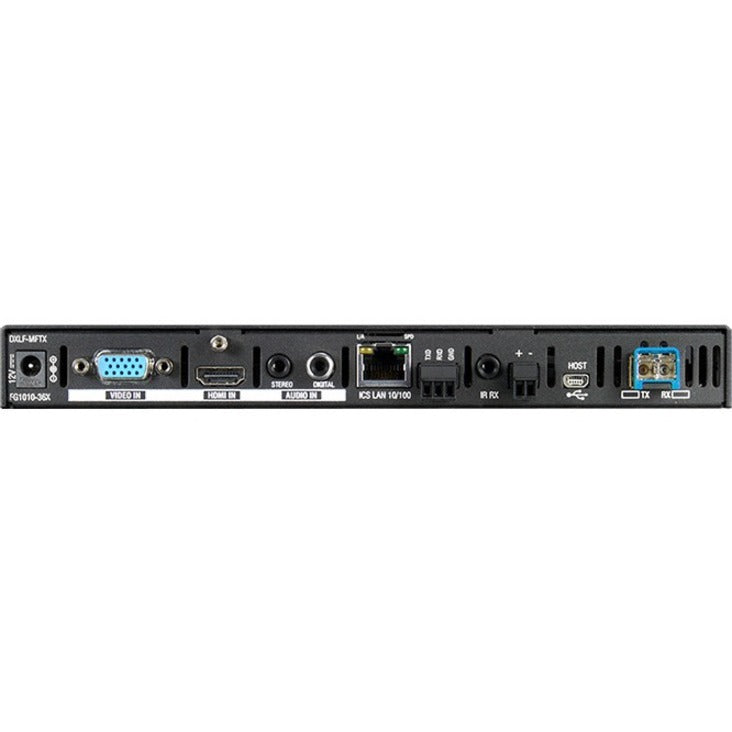

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex

SKU: 1075744895      MFR: Harman International Industries Inc

GTIN: 718878023051

Product Description

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex - 2 Input Device - 1 Output Device - 32808.40 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p 480i 576i 1080i - WUXGA - 1920 x 1200 - Optical Fiber Twisted Pair

Manufacturer : Harman International Industries Inc

Manufacturer Part No : FG1010-360FX

Features

  • HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
  • Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • InstaGate Pro® Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays no tools no delays and no key constraints - it just works
  • Native NetLinx® Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
  • Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
  • Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV Component S-Video and Composite and digital HDMI/HDCP DisplayPort and DVI signals
  • Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel plug in a WAP or stream IP audio/video to a Ethernet enabled source device

Product Details

Product TypeVideo Extender Transmitter
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Maximum Operating Distance32808.40 ft
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
VGA InYes
HDMI InYes
HDMI OutYes
Media Type SupportedOptical Fiber
Number of Output Devices Supported1
Number of Input Devices Supported2
Transmitter Height1"
Transmitter Width8.71"
Transmitter Depth5.15"
Number of VGA Inputs1
Supported Video Modes480p
Connectivity TechnologyWired
Brand NameAMX
ManufacturerHarman International Industries Inc
Product ModelDXF-TX-SMD
Product NameDXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex
Product LineDXLink
Manufacturer Part NumberFG1010-360FX
Manufacturer Website Addresshttp://www.harman.com
Marketing Information

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8 16 32 or 64 to transmit clear uncompressed video beyond 6 miles at the fastest data rate in the industry - 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.

Common Applications

The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms secure military applications casinos arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
Product FamilyDXLink
View full details
$2,589.99 USD
$2,589.99
Sale Sold out

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17


Update


Shipping calculated at checkout.

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex - 2 Input Device - 1 Output Device - 32808.40 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p 480i 576i 1080i - WUXGA - 1920 x 1200 - Optical Fiber Twisted Pair

Manufacturer : Harman International Industries Inc

Manufacturer Part No : FG1010-360FX

Features

  • HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
  • Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
  • Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
  • InstaGate Pro® Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays no tools no delays and no key constraints - it just works
  • Native NetLinx® Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
  • Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
  • Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV Component S-Video and Composite and digital HDMI/HDCP DisplayPort and DVI signals
  • Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel plug in a WAP or stream IP audio/video to a Ethernet enabled source device

Product Details

Product TypeVideo Extender Transmitter
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Maximum Operating Distance32808.40 ft
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
VGA InYes
HDMI InYes
HDMI OutYes
Media Type SupportedOptical Fiber
Number of Output Devices Supported1
Number of Input Devices Supported2
Transmitter Height1"
Transmitter Width8.71"
Transmitter Depth5.15"
Number of VGA Inputs1
Supported Video Modes480p
Connectivity TechnologyWired
Brand NameAMX
ManufacturerHarman International Industries Inc
Product ModelDXF-TX-SMD
Product NameDXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter Duplex
Product LineDXLink
Manufacturer Part NumberFG1010-360FX
Manufacturer Website Addresshttp://www.harman.com
Marketing Information

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8 16 32 or 64 to transmit clear uncompressed video beyond 6 miles at the fastest data rate in the industry - 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.

Common Applications

The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms secure military applications casinos arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
Product FamilyDXLink
