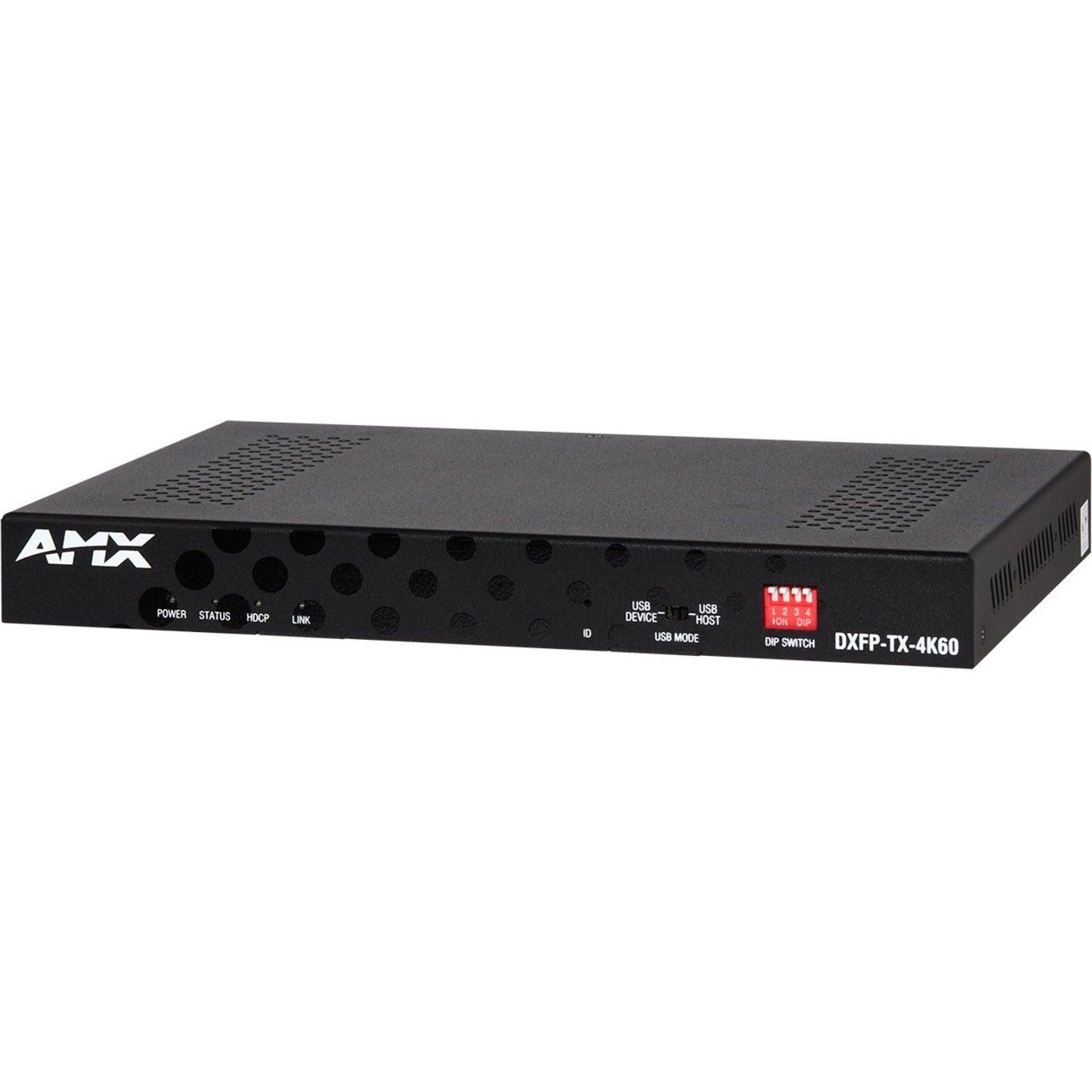

The DXLink 4K60 HDMI Fiber Transmitter is HDMI 2.0 and HDCP 2.2 compliant. It supports 4K60 4:4:4 video and High Dynamic Range (HDR) for pixel-for-pixel image reproduction without chroma subsampling. It transmits audio video control USB 2.0 and Ethernet over duplex fiber to a DXLink Fiber receiver up to 550 meters away. This module includes a Multi-Mode Duplex (MMD) SFP+ module which can be replaced with a Single-Mode Duplex (SMD) SFP+ module if needed.

Common Applications

Fiber uses light to distribute data rather than electric signals making it both the highest quality and most secure way to transport video as it is not susceptible to electronic noise or non-intrusive physical wiretapping. This module is compatible with DGX DXLink 4K60 Fiber input cards and DXLink 4K60 Fiber receivers. It is ideal for applications where the demands of high-resolution video clarity long distance transmission and maximum security need to be met without compromise including campus-wide distribution of sources that are shared between classrooms secure military applications casinos arenas and museums.

• DXLink 4K60 HDMI Fiber Transmitter Module
• Power Supply With Power Cord
