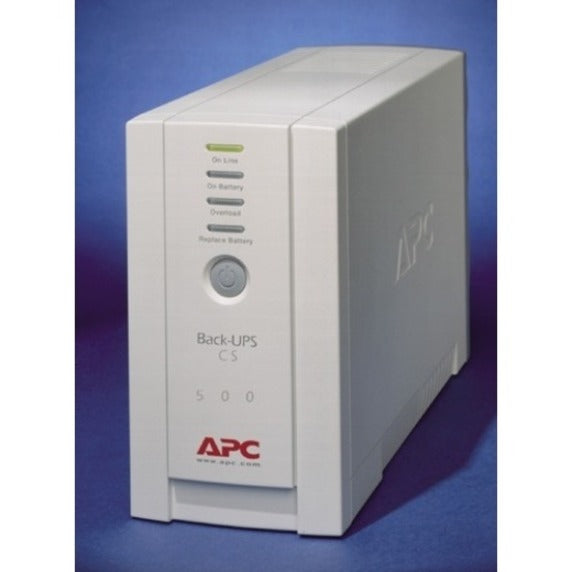

APC Back-UPS CS 500VA

APC Back-UPS CS 500VA

SKU: 10000660      MFR: Schneider Electric SA

GTIN: 731304016304

Product Description

APC Back-UPS CS 500VA - Tower - 8 Hour Recharge - 3 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-15R 3 x NEMA 5-15R

Manufacturer : Schneider Electric SA

Manufacturer Part No : BK500

Features

  • Building Wiring Fault Indicator - This LED informs users of potentially dangerous wiring problems in the wall circuit.
  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Dataline surge protection - Provides protection of connected equipment from power surges on the data lines.
  • Disconnected battery notification - Warns when a battery is not available to provide backup power.
  • Hot-swappable batteries - Ensures clean uninterrupted power to protected equipment while batteries are being replaced
  • Lifetime data recovery warranty - Provides peace of mind by providing professional data recovery services in the event data is lost due to the failure of the unit.
  • Serial connection - Use your PC to access additional power protection and management features for your UPS via a serial port.
  • Simple battery replacement - Increases UPS availability by allowing quick easy battery replacement.
  • Transformer-block spaced outlets - Protect equipment with input transformer blocks without blocking access to other receptacles.
  • USB connection - Use your PC to access additional power protection and management features for your UPS via a USB Port.

Product Details

Product TypeLine-interactive UPS
Additional Warranty Information

3 years warranty

Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Environmental CertificationENERGY STAR
USBYes
Maximum Operating Temperature113°F (45°C)
Serial PortYes
Backup/Run Time (Half Load)15 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsSpill-proof Maintenance-free
Energy StarYes
Typical Battery Recharge Time8 Hour
Receptacle Detail3 x NEMA 5-15R
Country of OriginPhilippines
Cord Length6 ft
RecycledNo
Assembly RequiredNo
Height6.5"
Width3.6"
Depth11.2"
ColorBeige
AlarmOn Battery
Certifications & Standards
  • FCC Part 15 Class B
  • Industry Canada
  • UL 1778
  • cUL Listed
Product SeriesCS
Brand NameAPC by Schneider Electric
Plug/Connector TypeNEMA 5-15P
Dataline ProtectionRJ-11
Form FactorTower
Status IndicatorsLED status display with On Line On Battery Replace Battery Site wiring fault and Overload Indicators
Load Capacity500 VA
ManufacturerSchneider Electric SA
Product NameBK500 120V Backup System
Power Consumption300 W
Product LineBack-UPS
Surge Energy Rating480 J
Thermal Dissipation7.03 W
Waveform TypeStepped Sine Wave
Input Voltage110 V AC
Manufacturer Part NumberBK500
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

Protect your electronics with this 6-outlet 120-volt battery backup system. 300-watt back-UPS features a surge energy rating of 480 joules. Serial connection lets you use your PC to access additional power protection and management features for your uninterruptible power supply (UPS) through a serial port. Disconnected battery notification warns you when a battery is not available to provide backup power. Cold-start capability provides temporary battery power when the utility power is out. Dataline surge protection protects connected equipment from power surges on the data lines. Hot-swappable batteries ensure clean uninterrupted power to your protected equipment while the batteries are being replaced. Wiring fault indicator informs you of potentially dangerous wiring problems in the wall circuit.

Sound Emission45 dB(A)
Packaged Quantity1 Each
Battery ChemistrySealed Lead Acid (SLA)
Package Contents
  • BK500 120V Backup System
  • CD with software
  • Cord management straps
  • USB cable
  • User manual
  • Limited Warranty3 Year
    Additional Information
    • Additional Surge Protected Outlets
    • Cord Management
    • Software
    • USB compatible
    Output Voltage120 V AC
    Weight (Approximate)13.80 lb
    Product FamilyBack-UPS CS
    Load Capacity (VA)500 VA
    View full details
    Regular price $222.99 USD
    Regular price Sale price $222.99
    Sale Sold out

    Dropship


    Update



    Shipping calculated at checkout.
