• DIN RAIL PANEL MOUNT UPS WITH
    DIN RAIL PANEL MOUNT UPS WITH
1 1

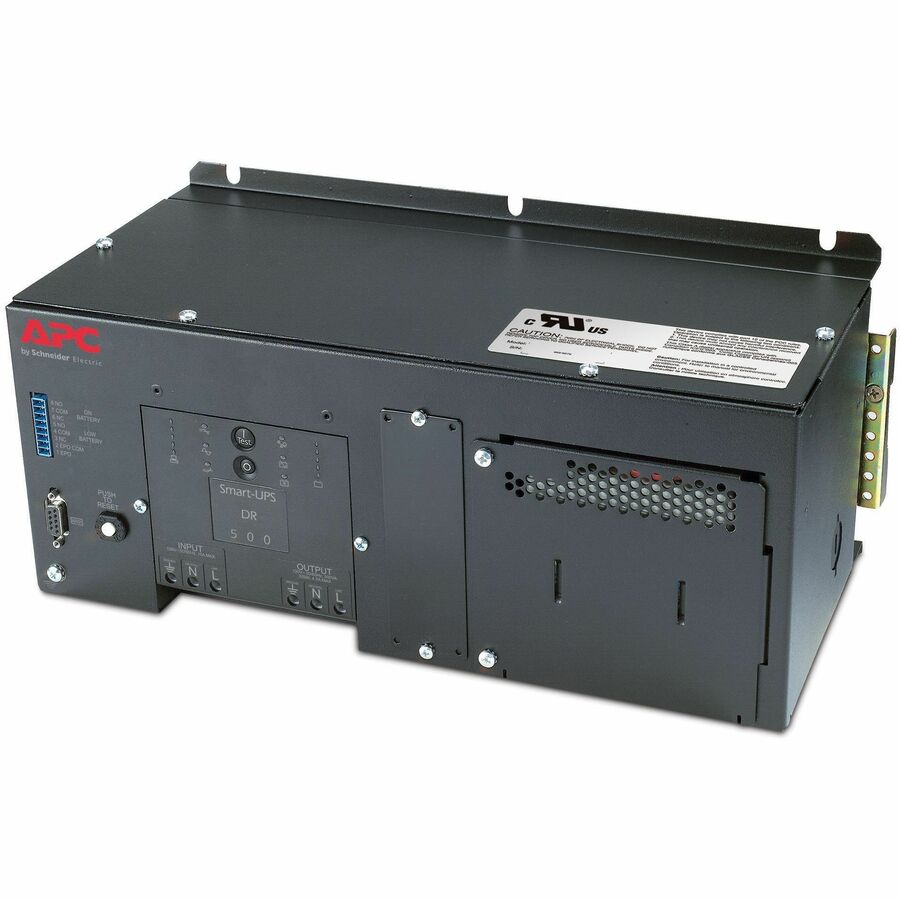

APC by Schneider Electric 500VA Panel Mount UPS

APC by Schneider Electric 500VA Panel Mount UPS

SKU: 1025215174      MFR: Schneider Electric SA

GTIN: 785901473626

Product Description

APC by Schneider Electric 500VA Panel Mount UPS - Tower - 2 Hour Recharge - 8.10 Minute Stand-by - 120 V AC Input - 120 V AC Output - 1 x Hard Wire 3-wire (H N + G)

Manufacturer : Schneider Electric SA

Manufacturer Part No : SUA500PDR-H

Features

  • User-replaceable batteries - Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Product Details

Product TypeLine-interactive UPS
Backup/Run Time (Full Load)8.10 Minute
Battery CharacteristicsMaintenance-free Sealed Leak-proof
Replaceable BatteryYes
EPO PortYes
Maximum Operating Elevation9842.52 ft
Maximum Storage Elevation49212.60 ft
Storage Relative Humidity0% - 95%
Storage Temperature23°F (-5°C) - 131°F (55°C)
Transfer Time0 ns
Typical Battery Recharge Time2 Hour
Input Frequency60 Hz
Receptacle TypeHard Wire 3-wire (H N + G)
Environmentally FriendlyYes
Environmental CertificationREACH
Battery Capacity432 kJ
Maximum Operating Temperature122°F (50°C)
Serial PortYes
Number of Batteries1
Backup/Run Time (Half Load)24.40 Minute
Receptacle Detail1 x Hard Wire 3-wire (H N + G)
Plug/Connector TypeHard Wire 3 wire (1PH+N+G)
Input Voltage Range82 V AC - 144 V AC
Form FactorTower
Status IndicatorsLED Status Display:
  • On Line
  • On Battery
  • Replace Battery
  • Overload
Load Capacity500 VA/325 W
ManufacturerSchneider Electric SA
Product Name500VA Panel Mount UPS
Network ManagementDB9 RS-232/SmartSlot
Surge Energy Rating540 J
Thermal Dissipation26.38 W
Waveform TypeSine Wave
Application/UsageIndustry
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberSUA500PDR-H
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

Industrial UPS

Proven Industrial UPS power protection for control applications and harsh environments.

Continuity of process control is critical across a wide range of Industrial segments: Water/Waste Water Biotech / Pharmaceutical Transportation Chemical Food & Beverage Semiconductor Automotive Renewable Energy. Equipment utilized in these segments is often subjected to harsh environments including wide temperature ranges or air characteristics with elevated moisture and salt content. APC offers a range of UPS solutions for industrial control applications including communication accessories for dry contact I/O Modbus and network management. During a power event whether the requirement is safe shutdown or maintaining data integrity the APC industrial UPS solution provides reliable protection.
Sound Emission55 dB(A)
Battery ChemistryLead Acid
Package Contents
  • 500VA Panel Mount UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Smart UPS signalling RS-232 cable
    •
    Limited Warranty2 Year
    Output Voltage120 V AC
    Weight (Approximate)25.26 lb
    Country of OriginPhilippines
    Height5.8"
    Width14.2"
    Depth6.7"
    AlarmOn Battery
    Certifications & StandardsUL recognized
    Brand NameAPC by Schneider Electric
    Load Capacity (VA)500 VA
    Load Capacity (W)325 W
    Input Voltage Range82 V AC 144 V AC
