APC by Schneider Electric ACF001 Airflow Cooling System

APC by Schneider Electric ACF001 Airflow Cooling System

SKU: 10072050      MFR: Schneider Electric SA

GTIN: 731304120742

Product Description

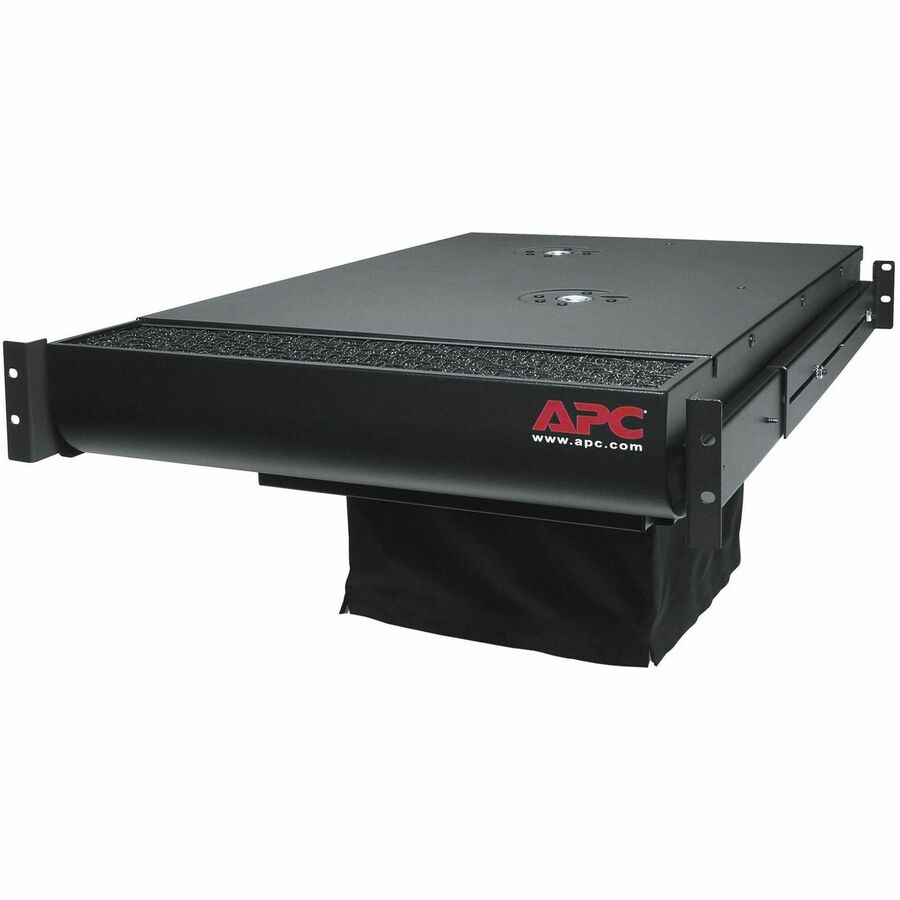

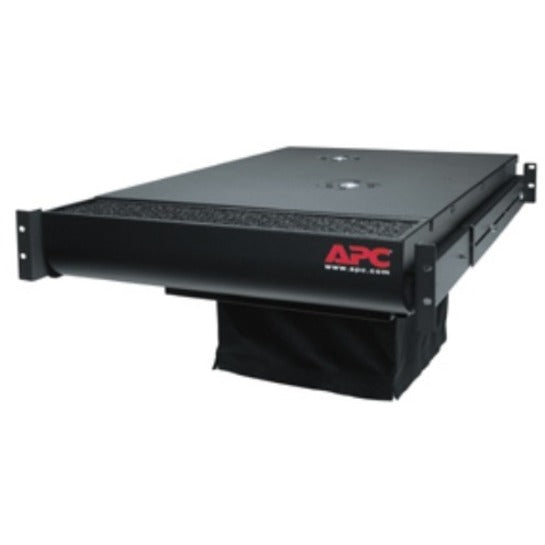

APC by Schneider Electric ACF001 Airflow Cooling System - 503 CFM - Black - 3500 W - Black - 2U - 120 V AC - 2 A - 240 W

Manufacturer : Schneider Electric SA

Manufacturer Part No : ACF001

Features

  • Dual fans - Provides fault tolerance in the event of a fan failure.
  • Fan control switches - Users can turn one or both fans on and off depending on the heat load.
  • Fan guards - A safety measure that provides protection from the fan opening by covering the inlet.
  • Mounting rails - Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19"" EIA-310-D enclosures.
  • Promotes Proper Airflow - Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Product Details

Product TypeAirflow Cooling System
Compatible Rack Height2U
ColorBlack
Brand NameAPC by Schneider Electric
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Air Flow503 CFM
Cooling Power Consumption3500 W
Height3.5"
Width1.7"
Depth29"
Input Current2 A
ManufacturerSchneider Electric SA
Product ModelACF001
Product NameACF001 Airflow Cooling System
Power Consumption240 W
Input Voltage120 V AC
Manufacturer Part NumberACF001
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

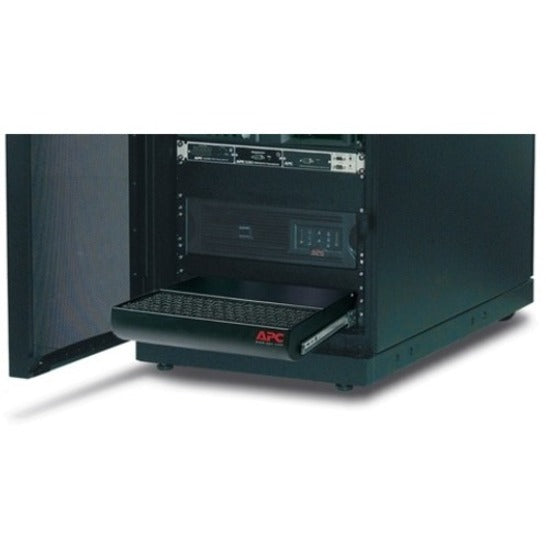

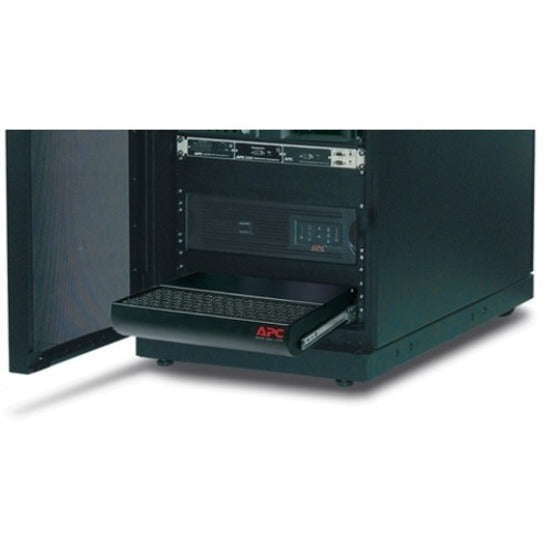

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
Package Contents
  • ACF001 Airflow Cooling System
  • Rack Mounting brackets
  • User Manual
Limited Warranty2 Year
Weight (Approximate)41.09 lb
Plug TypeNEMA 5-15P
Certifications & StandardsUL Recognized
View full details
$1,500.99 USD
$1,500.99
Sale Sold out

Back Order

Get it by Wed, Aug 05 - Mon, Aug 10


Update


Shipping calculated at checkout.

APC by Schneider Electric ACF001 Airflow Cooling System - 503 CFM - Black - 3500 W - Black - 2U - 120 V AC - 2 A - 240 W

Manufacturer : Schneider Electric SA

Manufacturer Part No : ACF001

Features

  • Dual fans - Provides fault tolerance in the event of a fan failure.
  • Fan control switches - Users can turn one or both fans on and off depending on the heat load.
  • Fan guards - A safety measure that provides protection from the fan opening by covering the inlet.
  • Mounting rails - Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19"" EIA-310-D enclosures.
  • Promotes Proper Airflow - Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Product Details

Product TypeAirflow Cooling System
Compatible Rack Height2U
ColorBlack
Brand NameAPC by Schneider Electric
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Air Flow503 CFM
Cooling Power Consumption3500 W
Height3.5"
Width1.7"
Depth29"
Input Current2 A
ManufacturerSchneider Electric SA
Product ModelACF001
Product NameACF001 Airflow Cooling System
Power Consumption240 W
Input Voltage120 V AC
Manufacturer Part NumberACF001
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
Package Contents
  • ACF001 Airflow Cooling System
  • Rack Mounting brackets
  • User Manual
Limited Warranty2 Year
Weight (Approximate)41.09 lb
Plug TypeNEMA 5-15P
Certifications & StandardsUL Recognized
