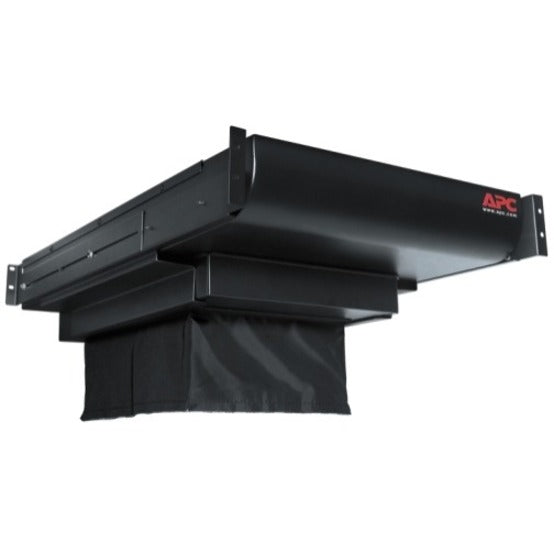

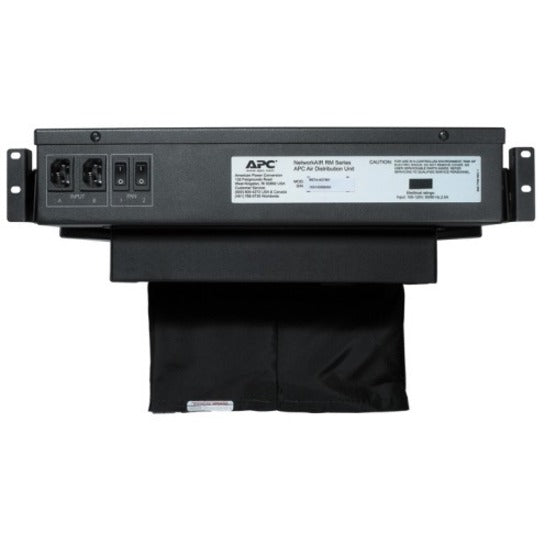

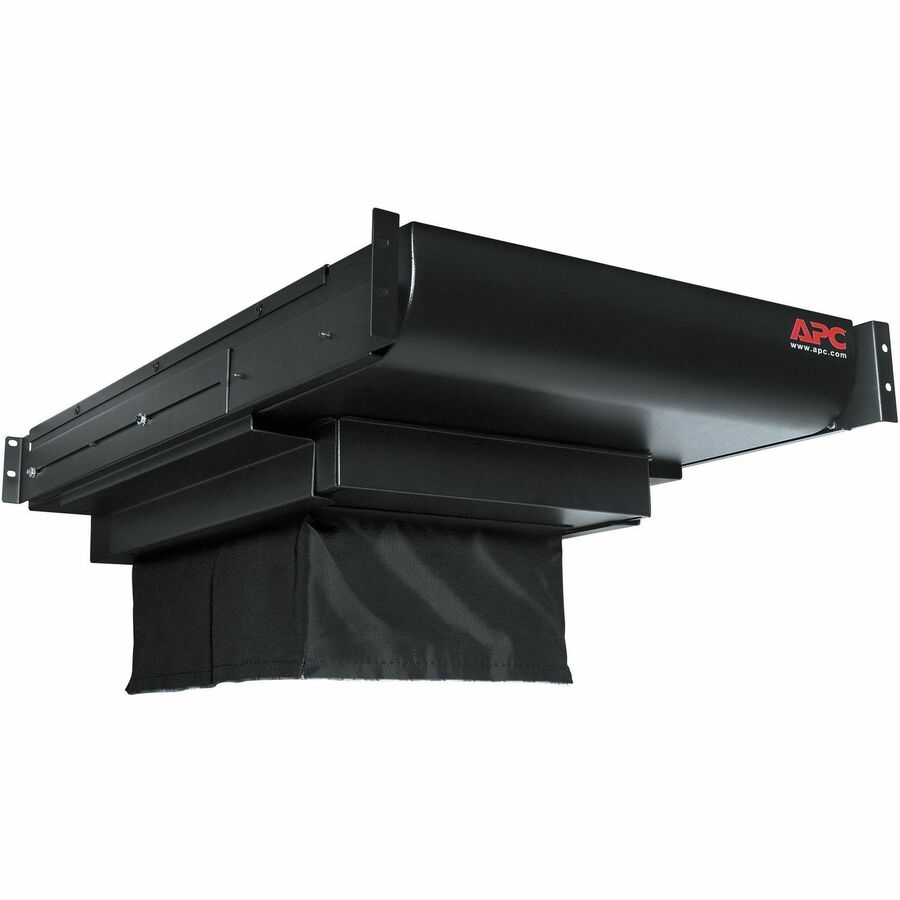

APC by Schneider Electric ACF002 Rack Air Distribution System

APC by Schneider Electric ACF002 Rack Air Distribution System

SKU: 10156701      MFR: Schneider Electric SA

GTIN: 731304120827

Product Description

APC by Schneider Electric ACF002 Rack Air Distribution System - 420 CFM - Rack-mountable - Black - IT - Black - Air Cooler - 2U - 230 V AC - 230 W

Manufacturer : Schneider Electric SA

Manufacturer Part No : ACF002

Features

  • Dual fans - Provides fault tolerance in the event of a fan failure.
  • Fan control switches - Users can turn one or both fans on and off depending on the heat load.
  • Fan guards - A safety measure that provides protection from the fan opening by covering the inlet.
  • Mounting rails - Adjustable depth allows the unit to fit APC NetShelter enclosures or other 19"" EIA-310-D enclosures.
  • Promotes Proper Airflow - Helps to maintain proper rack temperatures within the enclosure by promoting top to bottom airflow movement.

Product Details

Product TypeAirflow Cooling System
Receptacle TypeIEC 60320 C14
Environmentally FriendlyYes
Environmental CertificationRoHS
Compatible Rack Height2U
Maximum Air Flow420 CFM
Height3.5"
Width1.7"
Depth2.9"
ColorBlack
Cooler TypeAir Cooler
Certifications & Standards
  • CE
  • UL
Brand NameAPC by Schneider Electric
Form FactorRack-mountable
ManufacturerSchneider Electric SA
Product ModelACF002
Product NameACF002 Rack Air Distribution System
Power Consumption230 W
Application/UsageIT
Input Voltage230 V AC
Manufacturer Part NumberACF002
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

The Rack Air Distribution Unit is a 2U fan unit that connects into the raised floor and pulls supply air directly into the enclosure. This prevents the conditioned air from mixing with warmer room air before reaching the equipment. This minimizes temperature differences between the top and bottom of the enclosure while also preventing hot exhaust air recirculation to the inlet of the enclosure. The product is recommended for rack enclosures with loads greater than 1.5kW and can provide airflow for loads up to 3.5kW. It is also ideal for enclosures in raised floor environments where underfloor air distribution is inadequate.
Package Contents
  • ACF002 Rack Air Distribution System
  • Rack Mounting Brackets
  • User Manual
Limited Warranty2 Year
Weight (Approximate)41.89 lb
