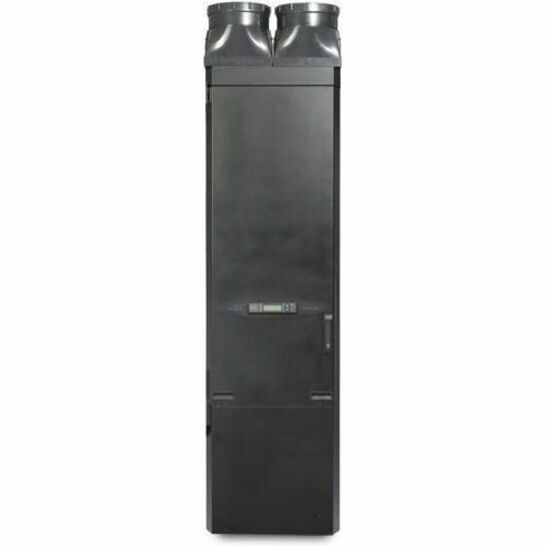

APC by Schneider Electric ACF400 Airflow Cooling System

APC by Schneider Electric ACF400 Airflow Cooling System

SKU: 11309375      MFR: Schneider Electric SA

Product Description

APC by Schneider Electric ACF400 Airflow Cooling System - 1600 CFM - Black - 16.50 kW - Black - 230 V AC - 1200 W

Manufacturer : Schneider Electric SA

Manufacturer Part No : ACF400

Features

  • Adjustable mounting frame - The frame can mount on Netshelter SX or VX enclosures and extends to accommodate 42U 47U or 48U rack heights.
  • Ducted Exhaust System - Removes hot air from the data center to prevent re-circulation and eliminate air mixing.
  • Fan guards - A safety measure that provides protection from the fan opening by covering the inlet.
  • Fault-tolerant fan system - In the event of a fan failure the remaining fan(s) will continue to operate.
  • Field replaceable components - Fans and electronics module can be readily replaced without uninstalling the unit.
  • Increased capacity - Higher rate of heat removal allows more equipment to be installed in each rack.
  • LCD display - Alpha-Numeric Display which displays system parameters and alarms.
  • Temperature monitoring - Changes in temperature are reported via the user interface or e-mail.

Product Details

Product TypeAirflow Cooling System
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Air Flow1600 CFM
Plug TypeNEMA 5-15P
Cooling Power Consumption16.50 kW
Height75.5"
Width23.5"
Depth10"
ColorBlack
Indicators & Controls

Multi-function LCD status and control console
Certifications & Standards
  • cUL Listed
  • CEEN 55022 Class A
  • EN 55024
  • FCC Part 15 Class A
  • ICES-003
  • IEC 61000-3-2
  • IEC 61000-3-3
  • UL Listed
  • VDE
  • VCCI
Brand NameAPC by Schneider Electric
ManufacturerSchneider Electric SA
Product ModelACF400
Product NameACF400 Airflow Cooling System
Power Consumption1200 W
Input Voltage230 V AC
Manufacturer Part NumberACF400
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

High-density equipment creates an environment where traditional air distribution methods are often not effective. Densely packed enclosures can cause IT equipment to overheat resulting in downtime. The Rack Air Removal Unit SX captures exhaust heat returns the warm air to the plenum and eliminates hot spots from the data center. Through automatic fan speed control based upon temperature the fans will self-adjust for optimal performance. With a unit-mounted LCD display users can view temperatures at the rack monitor alarm conditions and adjust unit set points. The integrated network management card allows for remote monitoring and control. This space-saving solution mounts to the back of either the NetShelter SX or VX enclosure requiring zero U space.
Package Contents
  • ACF400 Airflow Cooling System
  • Documentation CD
  • Installation Guide
  • Operations and Maintenance Manual
Limited Warranty1 Year
Weight (Approximate)148 lb
