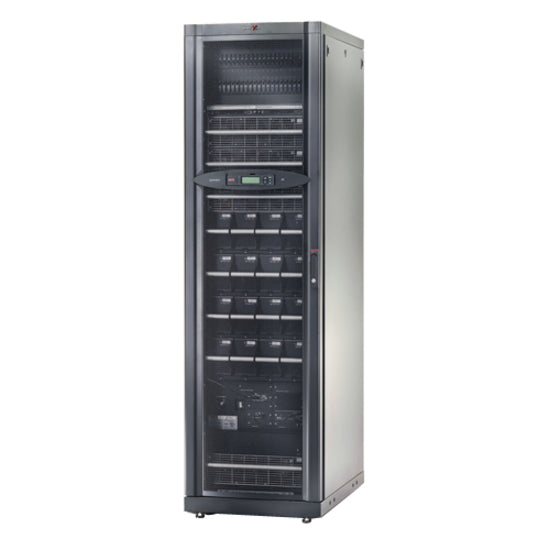

The APC InfraStruXure ISX20K20F Battery Cabinet is on-demand architecture for network-critical physical infrastructure (NCPI). The InfraStruXure ISX20K20F Battery Cabinet design which integrates power cooling rack management and services allows the selection of standardized components to create a solution through modular and mobile configurations. This standardization enables an easily scalable architecture designed to meet changing needs and future expansion.

• InfraStruXure ISX20K20F Battery Cabinet
• Installation guide
• Pre-installed whips
• Start-Up Service
• User Manual
• Web/SNMP Management Card

• Emergency Power Off (EPO): Yes
• Rack Height: 42U
• Number of Racks: 1
• Color: Black

Output:

• Configured Power: 20 kW / 20 kVA
• Max Configurable Power: 20 kW / 20 kVA
• Nominal Output Voltage: 120V208V208V 3PH
• Bypass: Built-in Maintenance BypassBuilt-in Static Bypass
• Output Connections: 9 x NEMA L21-20

Input:

• Input Frequency: 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections: Hard Wire 5-wire (3PH + N + G)

Batteries & Runtime:

• Battery Type: Maintenance-free sealed Lead-Acid battery with suspended electrolyte leakproof
• Battery Volt-Amp-Hour Capacity: 5376
• Typical recharge time: 2.65 hour(s)
• Replacement Battery: SYBT4
• RBC Quantity: 1

Regulatory Approvals:

• CSA
• FCC Part 15 Class A
• IEC 61000-3-2
• IEC 61000-3-3
• UL 1778
