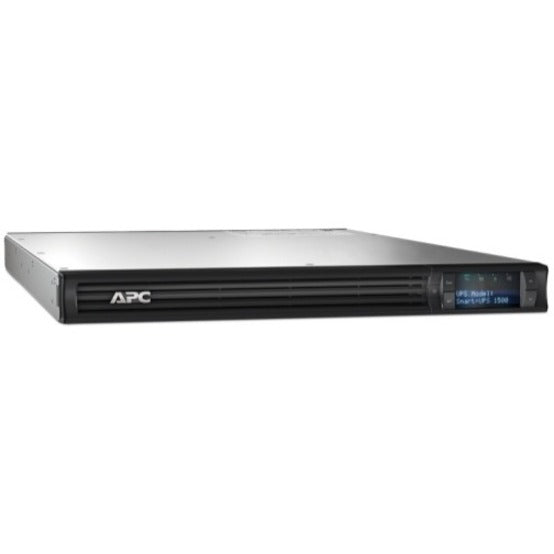

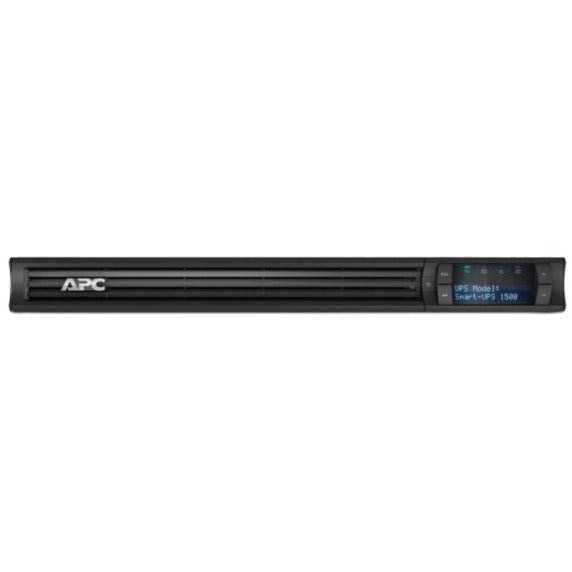

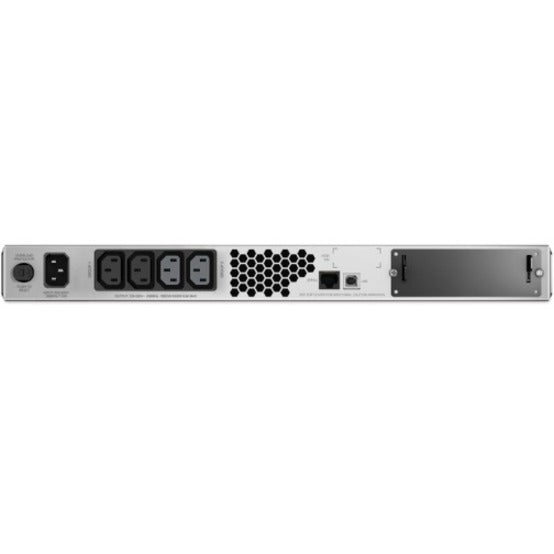

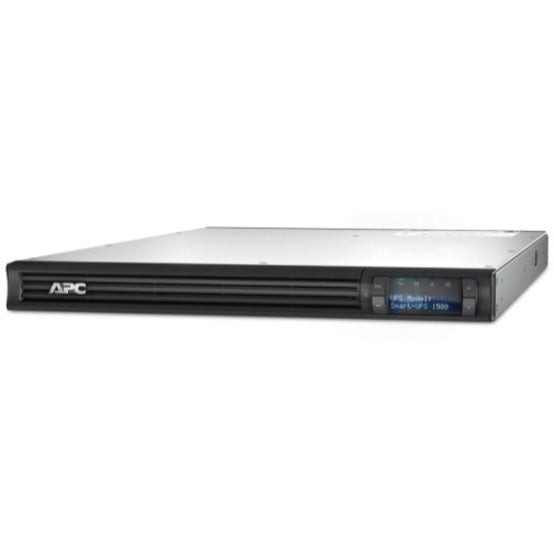

APC by Schneider Electric Smart-UPS 1500VA LCD RM 1U 230V

APC by Schneider Electric Smart-UPS 1500VA LCD RM 1U 230V

SKU: 1025182683      MFR: Schneider Electric SA

GTIN: 731304299400

Product Description

APC by Schneider Electric Smart-UPS 1500VA LCD RM 1U 230V - 1U Rack-mountable - 4 Hour Recharge - 5 Minute Stand-by - 220 V AC Input - 230 V AC Output - 4 x IEC 60320 C13

Manufacturer : Schneider Electric SA

Manufacturer Part No : SMT1500RMI1U

Features

  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • High online efficiency - Reduces utility costs generates less heat.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices sequenced on/off and non-critical load shedding.
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • SmartSlot - Customize UPS capabilities with management cards.

Product Details

Product TypeLine-interactive UPS
Receptacle TypeIEC 60320 C13
Environmentally FriendlyYes
Environmental CertificationRoHS
USBYes
Maximum Operating Temperature113°F (45°C)
Network (RJ-45)Yes
Serial PortYes
Backup/Run Time (Half Load)17 Minute
Backup/Run Time (Full Load)5 Minute
Battery CharacteristicsSpill-proof Maintenance-free
Total Number of Expansion Slots1
Typical Battery Recharge Time4 Hour
Receptacle Detail4 x IEC 60320 C13
Cord Length8.01 ft
Height1.7"
Width17"
Depth26.2"
ColorBlack
AlarmOn Battery
Certifications & StandardsUL 1449
Rack Height1U
Brand NameAPC by Schneider Electric
Circuit BreakerYes
Plug/Connector TypeIEC 60320 C14
Form FactorRack-mountable
Input Current12 A
Load Capacity1500 VA/1000 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS 1500VA LCD RM 1U 230V
Product LineSmart-UPS
Protection TypeSurge
Surge Energy Rating540 J
Thermal Dissipation34 W
Waveform TypeSine Wave
Hot SwappableYes
Input Voltage220 V AC
Manufacturer Part NumberSMT1500RMI1U
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing InformationAPC award-winning Smart-UPS® is the most popular UPS in the world for servers storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability Smart-UPS have extremely high efficiency at low medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower rack mount rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display extended range automatic voltage regulation (AVR) and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches networking devices and point-of-sale (POS) equipment.
Sound Emission46 dB(A)
Battery ChemistrySealed Lead Acid (SLA)
Package Contents
  • Smart-UPS 1500VA LCD RM 1U 230V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Warranty card
  • Limited Warranty3 Year
    Output Voltage230 V AC
    Weight (Approximate)53.11 lb
    Product FamilySmart-UPS
    Load Capacity (VA)1500 VA
    Load Capacity (W)1000 W
    View full details
    Regular price $2,015.99 USD
    Regular price Sale price $2,015.99
    Sale Sold out

    Out Of Stock


    Update



    Shipping calculated at checkout.
