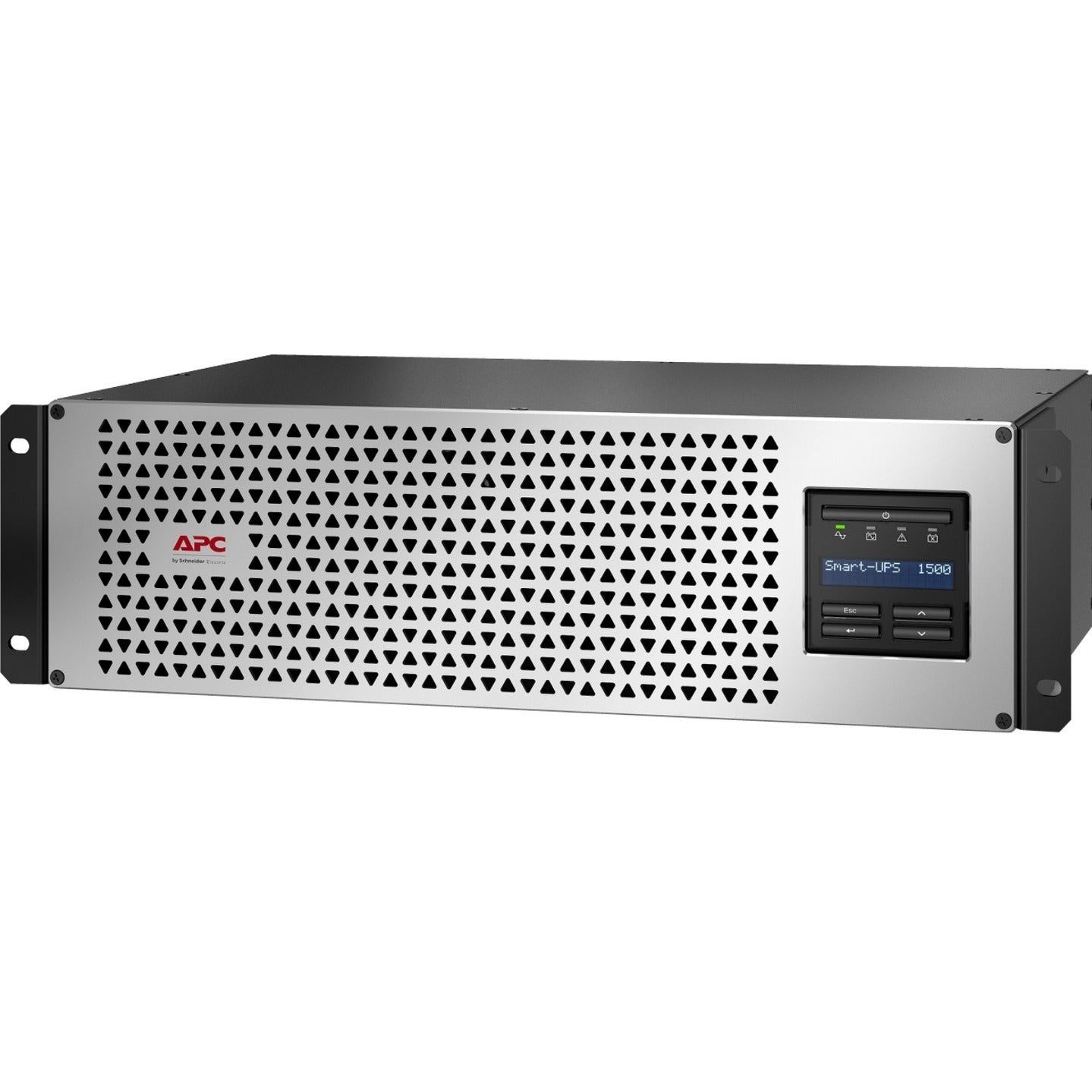

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS

SKU: 1068641459      MFR: Schneider Electric SA

GTIN: 731304435471

Product Description

APC by Schneider Electric Smart-UPS 1500VA Rack-mountable UPS - 3U Rack-mountable - 3 Hour Recharge - 3.03 Minute Stand-by - 120 V AC Input - 120 V AC Output - 6 x NEMA 5-15R

Manufacturer : Schneider Electric SA

Manufacturer Part No : SMTL1500RM3UCNC

Features

  • Works adequately in situations where the supply is prone to sags and surges
  • Up to 3.03 minute runtime on full load to preserve critical data from power shortage interruptions

Product Details

Typical Battery Recharge Time3 Hour
Receptacle Detail6 x NEMA 5-15R
Height5.2"
Width17.2"
ColorBlack
AlarmLow Battery
Rack Height3U
Brand NameAPC by Schneider Electric
Plug/Connector TypeNEMA 5-15P
Input Voltage Range75 V AC -154 V AC
Dataline ProtectionRJ-45
Form FactorRack-mountable
Status IndicatorsMultifunction LCD Status and Control Console
Load Capacity1500 VA/1350 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS 1500VA Rack-mountable UPS
Overload ProtectionYes
Product LineSmart-UPS
Surge Energy Rating680 J
Thermal Dissipation39.56 W
Waveform TypeSine Wave
Input Voltage120 V AC
Manufacturer Part NumberSMTL1500RM3UCNC
Manufacturer Website Addresshttp://www.schneider-electric.com
Sound Emission45 dB(A)
Battery ChemistryLithium Ion (Li-Ion)
Package Contents
  • Smart-UPS 1500VA Rack-mountable UPS
  • Installation Guide
  • Rack Mounting Support Rails
  • USB Cable
Limited Warranty5 Year
Output Voltage120 V AC
Product TypeLine-interactive UPS
Receptacle TypeNEMA 5-15R
Network (RJ-45)Yes
Product FamilySmart-UPS
Backup/Run Time (Half Load)8.87 Minute
Backup/Run Time (Full Load)3.03 Minute
Load Capacity (VA)1500 VA
Load Capacity (W)1350 W
Input Frequency60 Hz
Environmentally FriendlyYes
Environmental CertificationWEEE
Battery Capacity864 kJ
Maximum Operating Temperature104°F (40°C)
Serial PortYes
DC System Voltage36 V DC
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation25000 ft
Storage Relative Humidity0% - 95%
Storage Temperature-40°F (-40°C) - 95°F (35°C)
Transfer Time6 ms
Input Voltage Range75-154V AC
