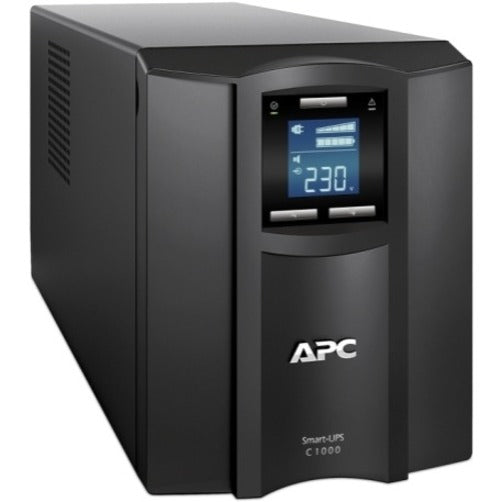

APC by Schneider Electric Smart-UPS C 1000VA LCD 230V

APC by Schneider Electric Smart-UPS C 1000VA LCD 230V

SKU: 1025458617      MFR: Schneider Electric SA

GTIN: 731304303688

Product Description

APC by Schneider Electric Smart-UPS C 1000VA LCD 230V - Tower - 3 Hour Recharge - 6.10 Minute Stand-by - 230 V AC Input - 230 V AC Output - 2 x IEC Jumper 8 x IEC 60320 C13

Manufacturer : Schneider Electric SA

Manufacturer Part No : SMC1000I

Features

  • Cold-start capable - Provides temporary battery power when the utility power is out.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency - Reduces utility costs generates less heat.
  • LCD Status Display - Provides key UPS status at a glance. Multiple status indicators with load and battery bar graphs.
  • Pure sine wave output on battery - Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.

Product Details

Product TypeLine-interactive UPS
Input Frequency60 Hz
Receptacle TypeIEC Jumper
Environmentally FriendlyYes
Environmental CertificationRoHS
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries1
Backup/Run Time (Half Load)16.18 Minute
Backup/Run Time (Full Load)6.10 Minute
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Operating Humidity0% - 95%
Storage Temperature5°F (-15°C) - 113°F (45°C)
Typical Battery Recharge Time3 Hour
Receptacle Detail2 x IEC Jumper
Height8.6"
Width6.7"
Depth17.3"
ColorBlack
Output Frequency60 Hz
AlarmOn Battery
Brand NameAPC by Schneider Electric
Plug/Connector TypeIEC 60320 C14
Input Voltage Range170 V AC - 300 V AC
Form FactorTower
Status Indicators

Multifunction LCD status and control console

Load Capacity1000 VA/600 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS C 1000VA LCD 230V
Product LineSmart-UPS
Surge Energy Rating455 J
Thermal Dissipation29.31 W
Waveform TypeSine Wave
Hot SwappableYes
Input Voltage230 V AC
Manufacturer Part NumberSMC1000I
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability Smart-UPS have extremely high efficiency at low medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower rack mount rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display extended range automatic voltage regulation (AVR) and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches networking devices and point-of-sale (POS) equipment.

Sound Emission41 dB(A)
Battery ChemistryLead Acid
Package Contents
  • Smart-UPS C 1000VA LCD 230V
  • CD with software
  • Documentation CD
  • USB cable
  • Limited Warranty2 Year
    Output Voltage230 V AC
    Weight (Approximate)38.07 lb
    Product FamilySmart-UPS
    Load Capacity (VA)1000 VA
    Load Capacity (W)600 W
    Input Voltage Range170 V AC 300 V AC
