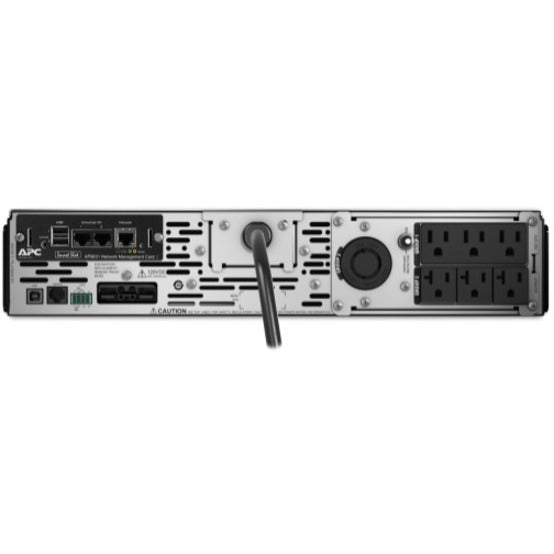

APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS

APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS

SKU: 1061202332      MFR: Schneider Electric SA

GTIN: 731304343271

Product Description

APC by Schneider Electric Smart-UPS X 1920VA Rack/Tower UPS - 2U Rack-mountable - AVR - 3 Hour Recharge - 10.90 Minute Stand-by - 120 V AC Input - 120 V AC Output - 3 x NEMA 5-15R 1 x NEMA L5-20R 3 x NEMA 5-20R

Manufacturer : Schneider Electric SA

Manufacturer Part No : SMX2KR2UNCX145

Features

  • Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
  • Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
  • APC USB communications - Enables communications with SMX SMT SRT and SURTD Smart-UPS models using historical APC proprietary USB usages.
  • Audible alarms - Provides notification of changing utility power and UPS power conditions
  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replaced.
  • Battery failure notification - Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
  • Cold-start capable - Provides temporary battery power when the utility power is out.

Product Details

Product TypeLine-interactive UPS
Input Frequency60 Hz
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Environmental CertificationRoHS
Battery Capacity2484 kJ
Maximum Operating Temperature104°F (40°C)
Network (RJ-45)Yes
Serial PortYes
Number of Batteries1
Backup/Run Time (Half Load)27.60 Minute
Backup/Run Time (Full Load)10.90 Minute
Battery CharacteristicsMaintenance-free Sealed Leak-proof
Replaceable BatteryYes
AVRYes
USB (HID Compliant) PortYes
Maximum Operating Elevation9842.52 ft
Maximum Storage Elevation49212.60 ft
Storage Relative Humidity0% - 95%
Storage Temperature5°F (-15°C) - 113°F (45°C)
Transfer Time4 ms
Typical Battery Recharge Time3 Hour
Receptacle Detail3 x NEMA 5-15R
Height3.3"
Width17"
Depth26.3"
ColorBlack
Output Frequency60 Hz
AlarmOn Battery
Product SeriesX
Rack Height2U
Brand NameAPC by Schneider Electric
Plug/Connector TypeNEMA 5-20P
Input Voltage Range70 V AC - 153 V AC
Form FactorRack-mountable
Status Indicators

LED Status Indicators:

  • Unit Status
  • Power Status
  • On Line
  • On Battery
  • Replace Battery
  • Overload
Load Capacity1920 VA/1800 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS X 1920VA Rack/Tower UPS
Network ManagementUSB
Product LineSmart-UPS
Surge Energy Rating540 J
Thermal Dissipation59.49 W
Waveform TypeSine Wave
Application/UsageServer
Hot SwappableYes
Input Voltage120 V AC
Manufacturer Part NumberSMX2KR2UNCX145
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers point-of-sale routers switches hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level standard and extended run) there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers security and communication systems through outages that could last hours.

Sound Emission55 dB(A)
Battery ChemistryLead Acid
Package Contents
  • Smart-UPS X 1920VA Rack/Tower UPS
  • CD with software
  • Documentation CD
  • Installation guide
  • Network management card
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Limited Warranty3 Year
    Software IncludedPowerchute® Business Edition Software
    Output Voltage120 V AC
    Weight (Approximate)84.77 lb
    Product FamilySmart-UPS X
    Load Capacity (VA)1920 VA
    Load Capacity (W)1800 W
    Input Voltage Range70 V AC 153 V AC
    View full details
    Regular price $2,860.99 USD
