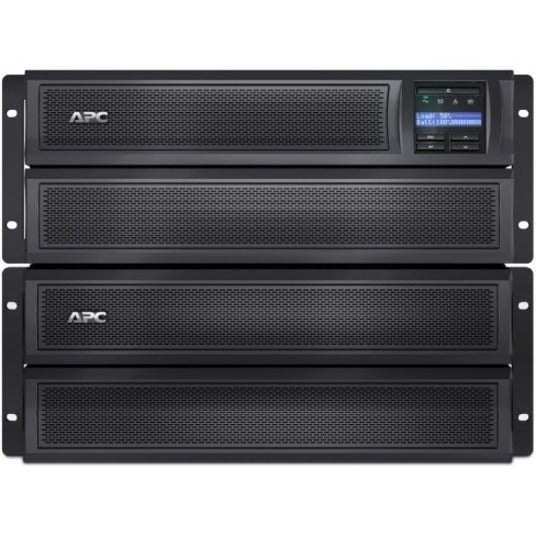

APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V

APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V

SKU: 1025118894      MFR: Schneider Electric SA

GTIN: 012303052198

Product Description

APC by Schneider Electric Smart-UPS X 2000VA Rack/Tower LCD 100-127V - 4U Rack-mountable - 3 Hour Recharge - 11 Minute Stand-by - 110 V AC Input - 120 V AC Output - 3 x NEMA 5-20R 6 x NEMA L5-20R 1 x NEMA 5-15R

Manufacturer : Schneider Electric SA

Manufacturer Part No : SMX2000LV

Features

  • Auto recognition of external batteries - UPS recognizes when external battery packs are attached and automatically adjusts runtime.
  • Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
  • Energy meter - Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode - Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High frequency design - Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
  • High online efficiency - Reduces utility costs generates less heat.
  • Intuitive LCD interface - Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Load shedding - Turn off select outlet groups in a pre-determined sequence to shed less critical equipment and conserve runtime (UPSs with switched outlet groups).
  • Multiple switched outlet groups - Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices sequenced on/off and non-critical load shedding.
  • Outlet group control - Turn on/off reboot or shut down select outlet groups to save dispatching technicians to remote locations (for UPSs with switched outlet groups).
  • Predictive replace battery date - Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Product Details

Product TypeLine-interactive UPS
Receptacle TypeNEMA 5-20R
Environmentally FriendlyYes
Environmental CertificationRoHS
USBYes
Serial PortYes
Number of Batteries1
Backup/Run Time (Half Load)28 Minute
Backup/Run Time (Full Load)11 Minute
Battery CharacteristicsSpill-proof Maintenance-free
Total Number of Expansion Slots1
Transfer Time4 ms
Typical Battery Recharge Time3 Hour
Receptacle Detail3 x NEMA 5-20R
Height17"
Width7"
Depth19"
ColorBlack
Certifications & Standards
  • BSMI
  • CSA
  • EN 50091-2
  • EN 55022 Class A
  • FCC Part 15 Class A
  • NOM
  • TUV
  • UL 1778
  • VCCI Class A
  • UL 1449
Rack Height4U
Brand NameAPC by Schneider Electric
Plug/Connector TypeNEMA 5-20P
Emergency Power OFFYes
Form FactorRack-mountable
Load Capacity1920 VA/1800 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS X 2000VA Rack/Tower LCD 100-127V
Product LineSmart-UPS
Waveform TypeSine Wave
Hot SwappableYes
Input Voltage110 V AC
Manufacturer Part NumberSMX2000LV
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

Over 20 million units sold - the UPS you can trust
APC award-winning Smart-UPS® is the most popular UPS in the world for servers storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability Smart-UPS have extremely high efficiency at low medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower rack mount rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display extended range automatic voltage regulation (AVR) and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches networking devices and point-of-sale (POS) equipment.

Battery ChemistrySealed Lead Acid (SLA)
Package Contents
  • Smart-UPS X 2000VA Rack/Tower LCD 100-127V
  • CD with software
  • Documentation CD
  • Installation guide
  • Rack mounting brackets
  • Rack mounting hardware
  • Rack mounting support rails
  • Removable support feet
  • Smart UPS signalling RS-232 cable
  • USB cable
  • Limited Warranty3 Year
    Output Voltage120 V AC
    Weight (Approximate)85.19 lb
    Product FamilySmart-UPS
    Load Capacity (VA)1920 VA
    Load Capacity (W)1800 W
