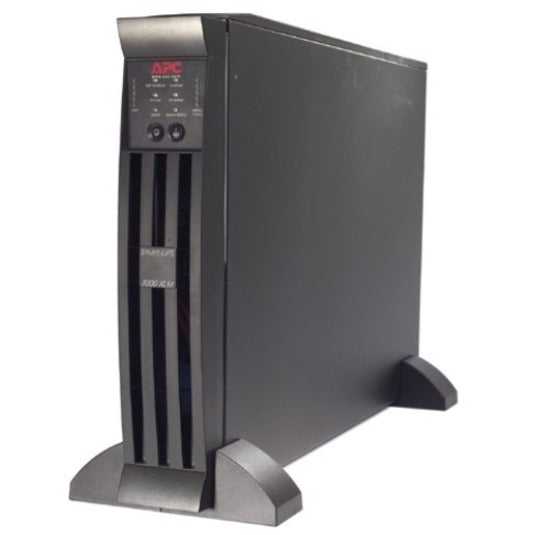

APC Smart-UPS XL 3000VA Rack Mountable/Tower

APC Smart-UPS XL 3000VA Rack Mountable/Tower

SKU: 10461597      MFR: Schneider Electric SA

GTIN: 731304224570

Product Description

APC Smart-UPS XL 3000VA Rack Mountable/Tower - 3000VA/2850W - 3.5 Minute Full Load - 7 x IEC 320-C13 - Battery/Surge-protected 1 x IEC 320-C19 - Battery/Surge-protected 4 x - Battery/Surge-protected

Manufacturer : Schneider Electric SA

Manufacturer Part No : SUM3000RMXLI2U

Features

  • Automatic internal bypass - Pure static bypass switch without bridging contactor securing a fast and reliable transfer to and from bypass rated for 125% nominal load.
  • Modular design - Enables IT projects that were previously infeasible or cost-prohibitive.
  • Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
  • USB connectivity - Provides management of the UPS via a USB port (not available on all models).

Product Details

Product TypeLine-interactive UPS
Battery ManagementIntelligent Battery Management
Receptacle TypeIEC 60320 C19
Environmentally FriendlyYes
USBYes
Maximum Operating Temperature113°F (45°C)
Network (RJ-45)Yes
Serial PortYes
Backup/Run Time (Half Load)11.90 Minute
Backup/Run Time (Full Load)3.50 Minute
Receptacle Detail7 x IEC 60320 C19
Cord Length10 ft
Height3.4"
Width17"
Depth26.7"
ColorBlack
AlarmOn Battery
Bypass SwitchAutomatic & Manual
Certifications & Standards
  • C-tick
  • CE
  • EN 50091-2
  • EN 55022 Class A
  • EN 61000-3-2
  • GOST
  • UL 1449
Product SeriesXL
Rack Height2U
Brand NameAPC by Schneider Electric
Plug/Connector TypeIEC 320-C20
Emergency Power OFFOptional
Form FactorRack-mountable
Status Indicators
  • Load Bar-graphs
  • Battery Bar-graphs
  • On Line
  • On Battery
  • Replace Battery
  • Overload
  • Bypass
Load Capacity3000 VA/2850 W
ManufacturerSchneider Electric SA
Product NameSmart-UPS XL 3000VA Rack Mountable/Tower
Product LineSmart-UPS
Surge Energy Rating490 J
Thermal Dissipation87.92 W
Waveform TypeSine Wave
Hot SwappableYes
Input Voltage220 V AC
Manufacturer Part NumberSUM3000RMXLI2U
Manufacturer Website Addresshttp://www.schneider-electric.com
Marketing Information

APC Smart-UPS XL 3000VA protects your data by supplying reliable network-grade power with scalable run-time in tower and rack mount form factors. With optional matching battery packs run-time can be easily extended and optimized for the application. APC understands long run-time requirements so; Smart-UPS XL's can be configured with up to 10 additional battery packs - for run-times exceeding 24 hours if necessary. The convergence of voice and data networks is placing higher demands on availability expectations - and the Smart-UPS XL delivers. Voice over Internet Protocol (VoIP) e-commerce WiFi ("hotspots" WLAN/ WWAN and mixed wireless) and data enabled PBX's are a few of the applications driving the need for Smart-UPS XL. APC Smart-UPS XL is also the perfect UPS for fileservers (Intel or UNIX based) minicomputers Network switches and hubs ATM's telecommunications systems and other mission-critical applications requiring longer runtime.
Battery ChemistrySealed Lead Acid (SLA)
Package Contents
  • Smart-UPS XL 3000VA Rack Mountable/Tower
  • CD with software
  • Rack mounting brackets
  • Rack mounting support rails
  • Smart UPS signalling RS-232 cable
  • USB cable
  • User manual
    •
    Limited Warranty2 Year
    Additional Information
    • Replacement battery cartridge: 1
    • Battery Modules Shipped with Unit: 1
    • Efficiency at full load: 89%
    • Output Voltage Distortion: Less than 5% at full load
    • Crest Factor: up to 5:1
    • Units per Pallet: 8
    • Adjustable voltage sensitivity
    • Adjustable voltage-transfer points
    • Automatic restart of loads after UPS shutdown
    • Automatic self-test
    • Boost and Trim Automatic Voltage Regulation (AVR)
    • Cold-start capable
    • Disconnected battery notification
    • Generator compatible
    • Scalable runtime
    Output Voltage230 V AC
    Output Voltage240 V AC
    Weight (Approximate)103 lb
    Product FamilySmart-UPS XL
    Load Capacity (VA)3000 VA
    Load Capacity (W)2850 W
    View full details
