• Aruba 8360-48Y6C v2 Ethernet Switch

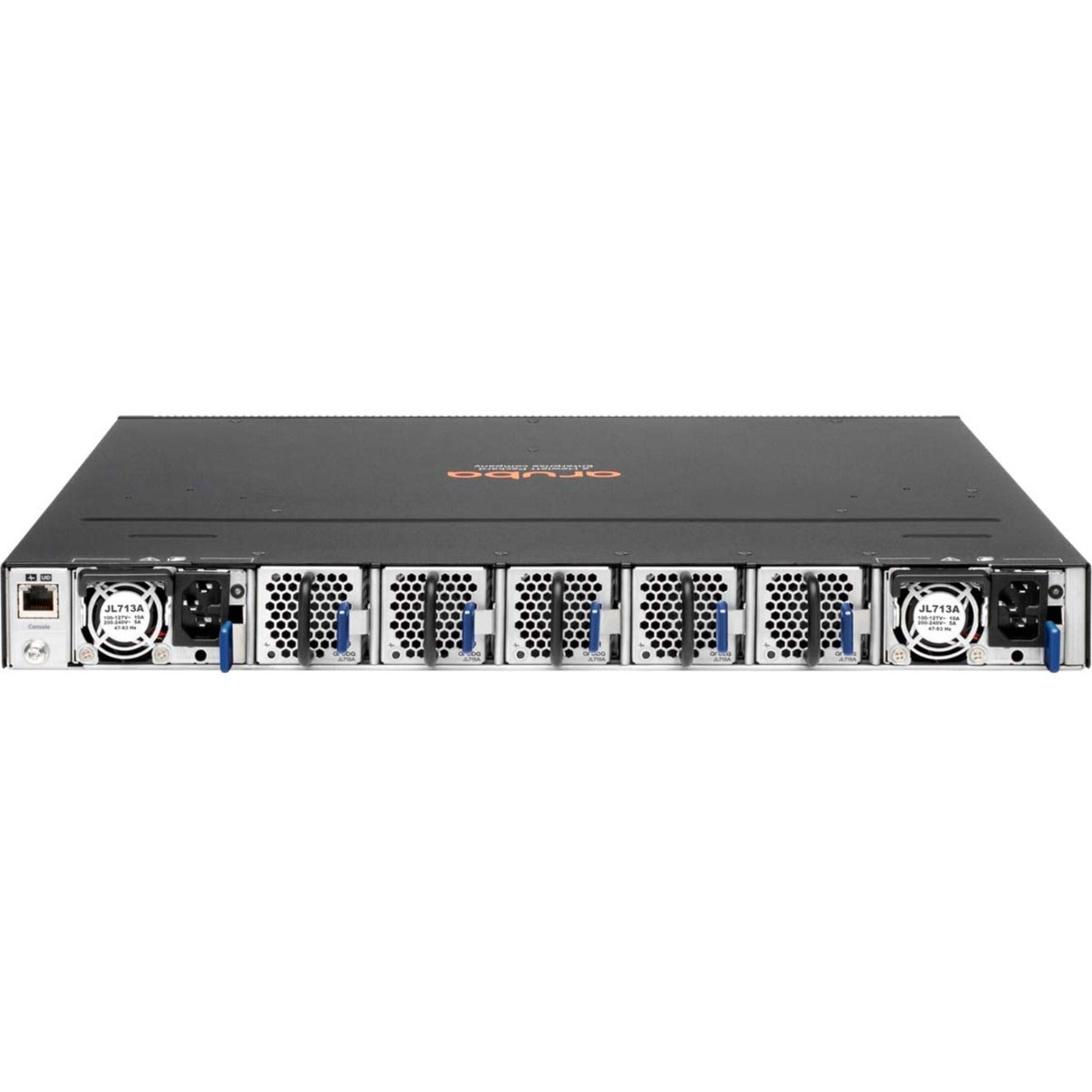

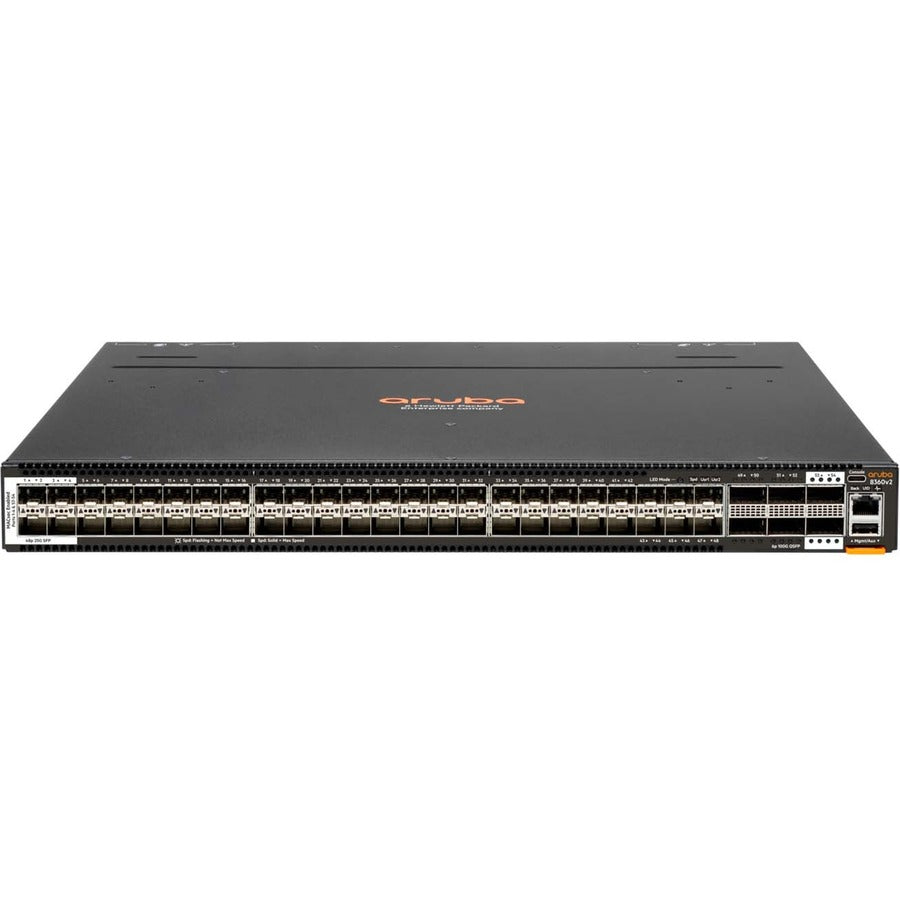

    Aruba 8360-48Y6C v2 Ethernet Switch
  • Aruba 8360-48Y6C v2 Ethernet Switch
1 2

Aruba 8360-48Y6C v2 Ethernet Switch

Aruba 8360-48Y6C v2 Ethernet Switch

SKU: 1073213721      MFR: Hewlett Packard Enterprise

GTIN: 190017599526

Product Description

Aruba 8360-48Y6C v2 Ethernet Switch - Manageable - 25 Gigabit Ethernet 100 Gigabit Ethernet - 25GBase-X 100Base-X - TAA Compliant - 3 Layer Supported - Modular - 725 W Power Consumption - Optical Fiber - 1U High - Rack-mountable Surface Mount Cabinet Mount - Lifetime Limited Warranty

Manufacturer : Hewlett Packard Enterprise

Manufacturer Part No : R9G23A#ABA

Features

  • High-performance 4.8Tbps and 2678 Mpps
  • Intelligent monitoring and visibility with Aruba Network Analytics Engine
  • High availability with industry leading VSX redundancy and redundant power supplies and fans
  • Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
  • MACsec secured connectivity over untrusted domains
  • ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
  • Advanced Layer 2/3 feature set includes BGP OSPF VRF and IPv6
  • 50G support on 8360-48Y6C 32Y4C and 16Y2C switches
  • Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C

Product Details

Product TypeEthernet Switch
ManageableYes
Ethernet Technology25 Gigabit Ethernet
Number of Total Expansion Slots54
Product FamilyCX 8360
Media Type SupportedOptical Fiber
Redundant Power Supply SupportedYes
TAA CompliantYes
Expansion Slot TypeQSFP28
Brand NameAruba
Form FactorRack-mountable
Power Consumption725 W
Power SourcePower Supply
Layer Supported3
Environmentally FriendlyYes
Environmental CertificationRoHS
Compatible Rack Unit1U
Number of Power Supplies Supported2
Maximum Data Transfer Rate12.50 GB/s
ModularYes
Uplink PortYes
Port/Expansion Slot Details48 x 25 Gigabit Ethernet Expansion Slot
Networking StandardsIEEE 802.1ab
Height1.7"
Width17.4"
Depth22"
Product SeriesCX 8360
ManufacturerHewlett Packard Enterprise
Product Model8360-48Y6C v2
Product Name8360-48Y6C v2 Ethernet Switch
Network Technology25GBase-X
Input Voltage120 V AC
Manufacturer Part NumberR9G23A#ABA
Manufacturer Website Addresshttp://www.hpe.com
Marketing Information

The Aruba CX 8360 v2 Switch Series offers a flexible and innovative approach to addressing the application security and scalability demands of the mobile cloud and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses as well as virtual and highly dynamic data center environments. They provide up to 3.6Tbps of capacity with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5 5 Gbps) 10Gbps 25Gbps 40Gbps 50 Gbps and 100Gbps.

The 8360 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE or from 10GbE/40GbE uplinks to 50/100GbE ports. In addition the 48 and 32 x 25G port 8360 models support low- density MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains. And MACsec with 2 x40/100G port with the 48x25 8360 model

PRODUCT DIFFERENTIATORS

The Aruba CX 8360 switch series is based on ArubaOS-CX a modern database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.

Modular Architecture with native cloud-native ArubaOS-CX

ArubaOS-CX is built on a modular Linux architecture with OVSDB providing the following unique capabilities: ?

  • Safe and powerful access to all state at all times allows unique visibility and analytics capabilities.
  • REST APIs and Python scripting provide fine-grained microservices architecture enabling full integration with other workflow systems and services
  • Supports Aruba Fabric Composer - a software-defined orchestration solution that simplifies and accelerates leaf-spine network provisioning and day-to-day operations across rack-scale compute and storage infrastructure.
  • Continual state synchronization provides superior fault tolerance and high availability ?
  • All software processes communicate with the database rather than with each other ensuring high stability with minimal inter-process communication
Aruba Network Analytics Engine

ArubaOS-CX includes Aruba's Network Analytics Engine (NAE) for advanced telemetry and automation. The NAE framework is an industry-first monitoring and troubleshooting system providing greatly improved network operations. NAE uniquely provides the ability to monitor and easily troubleshoot network health and congestion issues. The Time Series Database (TSDB) may be used to store configuration and operational state.
Package Contents
  • 8360-48Y6C v2 Ethernet Switch
  • 5 Fans
  • 2 x Power Supplies
Limited WarrantyLifetime
Weight (Approximate)23.65 lb
Product ColorBlack
Frequency63 Hz
Frequency47 Hz
View full details
$46,645.99 USD
$46,645.99
Sale Sold out

Back Order

Get it by Mon, Jul 27 - Sat, Aug 01


Update


Shipping calculated at checkout.
