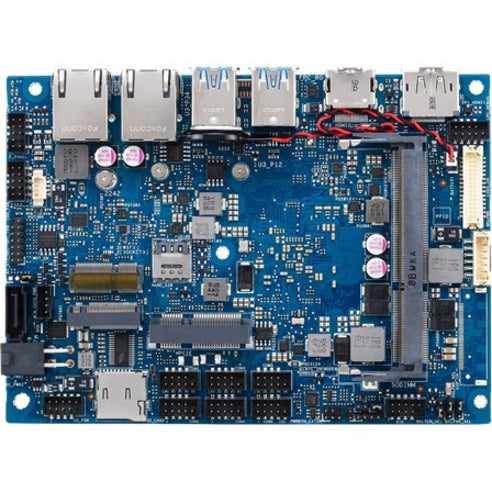

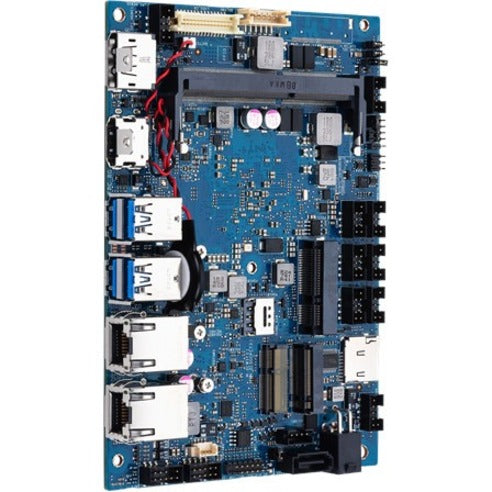

Asus E393S-IM-AA Single Board Computer Motherboard - Intel Chipset - Socket BGA-1296 - 3.5" SBC

Asus E393S-IM-AA Single Board Computer Motherboard - Intel Chipset - Socket BGA-1296 - 3.5" SBC

SKU: 1066385396      MFR: ASUS Computer International

GTIN: 192876592083

Product Description

Asus E393S-IM-AA Single Board Computer Motherboard - Intel Chipset - Socket BGA-1296 - 3.5" SBC - Intel Atom x5-E3930 - 8 GB DDR3L SDRAM Maximum RAM - SoDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 1 x SATA Interfaces

Manufacturer : ASUS Computer International

Manufacturer Part No : E393S-IM-AA

Features

  • Supports Intel®Apollo Lake-I x5-E3930 CPU and achieve high performance with full CPU utilication
  • Wide range of power inputs (12~24V) and operating temperatures (-40°~85°)
  • Diverse I/O interface and expansion options for multiple markets
  • World-class after-sales service and long-term availability guarantee
  • Supports I2C SMBus and GPIO

Product Details

Product TypeSingle Board Computer Motherboard
Environmentally FriendlyYes
Environmental CertificationRoHS
Chipset ManufacturerIntel
Number of Memory Slots2
Graphics Controller ManufacturerIntel
Graphics Controller ModelHD Graphics 505
Audio Channels7.1
Gigabit EthernetYes
Number of SATA Interfaces1
Onboard VideoOn-board Video Chipset
Number of Total Expansion Slots1
HDMIYes
Number of Network (RJ-45) Ports2
DisplayPortYes
Total Number of USB Ports4
Total Number of Onboard USB Ports2
Number of Onboard USB 2.0 Ports2
Total Number of PCI Express Slots1
Integrated Processor ManufacturerIntel
Integrated Processor TypeAtom
Integrated Processor Modelx5-E3930
Integrated Processor Speed1.30 GHz
Integrated Processor Cache2 MB
Integrated Processor CoreDual-core (2 Core)
Memory Form FactorSoDIMM
Number of M.2 Interfaces2
Brand CompatibilityIntel
Number of USB 3.1 Ports4
Memory Speed Supported1866 MHz
Memory Speed Supported1600 MHz
Memory Speed Supported1333 MHz
Country of OriginChina
Width5.7"
Depth4.1"
Memory TechnologyDDR3L SDRAM
Processor SocketSocket BGA-1296
Brand NameAsus
Form Factor3.5" SBC
ManufacturerASUS Computer International
Product ModelE393S-IM-AA
Product NameE393S-IM-AA Single Board Computer Motherboard
Total Processor Supported1
Controller TypeSerial ATA/600
Manufacturer Part NumberE393S-IM-AA
Manufacturer Website Addresshttp://usa.asus.com
Marketing Information

ASUS E393S-IM-AA is a 3.5" SBC industrial motherboard featuring rich I/O capabilities advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering up to 6 COM ports(2 x RS-232/422/485) and supports dual display configuration by multiple interface: HDMI/DP and integrated CPU. This product is designed for high performance and silent operation in harsh environment. ASUS E393S-IM-AA is an ideal choice for a wide range of embedded applications.

As the world's No.1 motherboard brand ASUS offers industrial motherboards with durable industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise world-class after sales service material supply flexibility the ability to respond rapidly to forecast changes and long-term technical support enabling customers to find the perfect solution to match their requirements.
Maximum Memory Supported8 GB
Package Contents
  • E393S-IM-AA Single Board Computer Motherboard
  • 1 x IO Shield
  • 1 x SATA 6G Cable
  • 2 x M.2 Screw Pack
