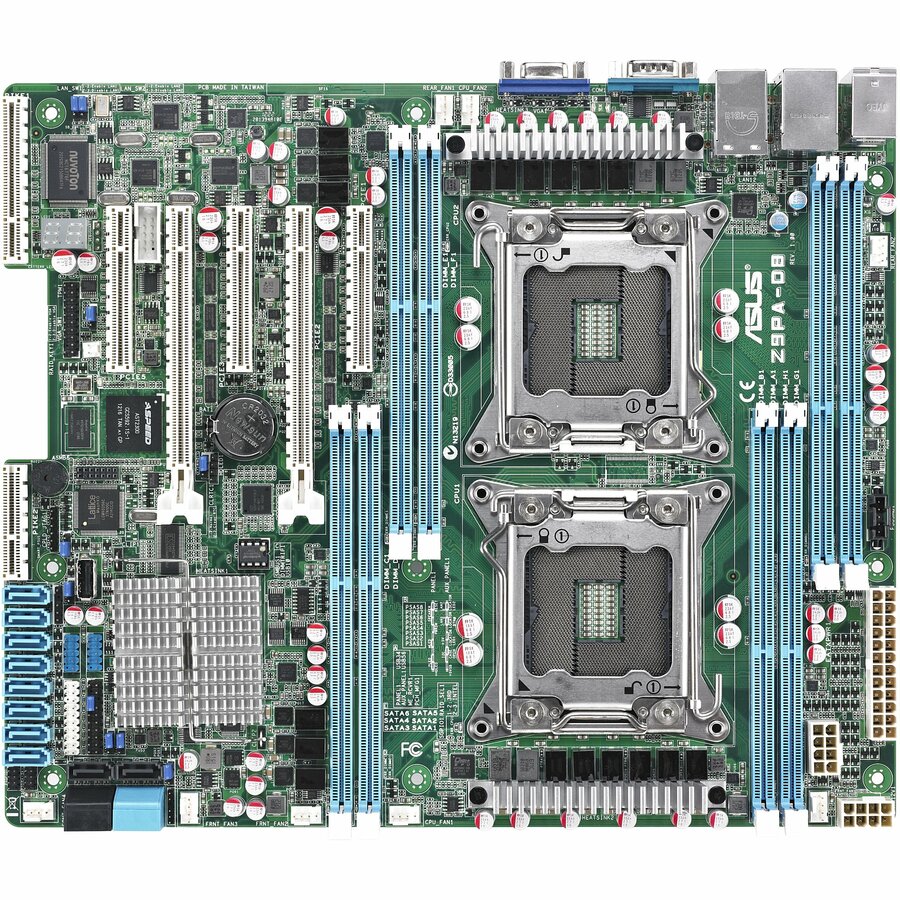

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX

SKU: 1023296067      MFR: ASUS Computer International

GTIN: 886227320561

Product Description

Asus Z9PA-D8 Server Motherboard - Intel C602-A Chipset - Socket R LGA-2011 - ATX - 256 GB DDR3 SDRAM Maximum RAM - DDR3-1600/PC3-12800 DDR3-1333/PC3-10600 DDR3-1066/PC3-8500 - DIMM RDIMM UDIMM LRDIMM - 8 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Manufacturer : ASUS Computer International

Manufacturer Part No : Z9PA-D8(ASMB6-IKVM)

Features

  • Experience high performance built-in security and remote management capabilities with compatible Intel Xeon processor
  • DDR3 SDRAM compatible slot - Installs memory that reduces processor's idle time and enhances computer's performance
  • RAID supported levels provide data reliability and fault tolerance
  • Supports ASPEED AST2300 controller to provide excellent ability in a variety of server applications
  • With 2 USB 3.0 port(s) copying files quickly and establishing connections between audio and video devices is as seamless as it gets
  • Retrieve a significant number of PCI slots expansion slots and peripheral ports that have an enhanced heat dissipation capability with the ATX server motherboard
  • With 2 USB 2.0 ports transfer several documents without error

Product Details

Product TypeServer Motherboard
Environmentally FriendlyYes
Environmental CertificationRoHS
64-bit ProcessingYes
Chipset ManufacturerIntel
Chipset ModelC602-A
Number of Memory Slots8
Graphics Controller ManufacturerASPEED
Graphics Controller ModelAST2300
Graphics Controller Memory16 MB
Gigabit EthernetYes
Number of SATA Interfaces6
Graphics Memory TechnologyVRAM
QuickPath Interconnect8 GT/s
Onboard VideoOn-board Video Chipset
RAID SupportedYes
Number of Total Expansion Slots6
Number of PCI Express x8 Slots3
Number of PCI Express x16 Slots2
VGAYes
Number of Network (RJ-45) Ports3
Network (RJ-45)Yes
Audio Line InNo
Audio Line OutNo
Serial PortYes
Microphone PortNo
Total Number of USB Ports4
Number of USB 2.0 Ports2
Number of USB 3.0 Ports2
PS/2 PortYes
Number of PS/2 Ports1
Total Number of Onboard USB Ports5
Onboard LEDs HeaderYes
PCI Express StandardPCI Express 2.0
Total Number of PCI Express Slots6
Memory Form FactorDIMM
Onboard Serial HeaderYes
Memory Speed Supported1600 MHz
Memory Speed Supported1333 MHz
Memory Speed Supported1066 MHz
Memory StandardDDR3-1600/PC3-12800
Width12"
Depth10"
Memory TechnologyDDR3 SDRAM
Certifications & Standards
  • US (FCC CFR47 Part 15 Class B)
  • Europe (CE EN55022 & EN55024)
  • C-Tick
  • BSMI
Processor SocketSocket R LGA-2011
Brand NameAsus
Form FactorATX
ManufacturerASUS Computer International
Product ModelZ9PA-D8
Product NameZ9PA-D8 Server Motherboard
Package TypeRetail
Power Supply SupportedATX12V
Processor SupportedXeon
RAID Levels0
Total Processor Supported2
Controller TypeSerial ATA/600
Manufacturer Part NumberZ9PA-D8(ASMB6-IKVM)
Manufacturer Website Addresshttp://usa.asus.com
Marketing InformationMost Powerful Dual LGA2011 Serverboard in 12"x10" Compact Size

ASUS proudly to announce new server board Z9PA-D8 based on Intel® E5-2600 + C602 PCH platform. The board integrates versatile features into a compact 12"x10" size which allows this board to fit into ATX chassis. Through innovative and top-notch engineering design this board is able to support dual Intel® Xeon® E5-2600 processors up to 135W CPU. With adequately developed thermal solution in 1U rack mount the system may support up to 115W CPU.
Maximum Memory Supported256 GB
Packaged Quantity1
Package Contents
  • Z9PA-D8 Server Motherboard
  • ASMB6-IKVM Remote Server Management
  • 6 x SATA Data Cables
  • 1 x I/O Shield
  • 1 x Support CD
  • 1 x User's Guide
  • 1 x USB to SATA DOM Power Cable
