Intel Xeon Quad-Core CPU

The Lockerstor 12R/16R Pro features a powerful Intel 9th generation Xeon with four cores. Not only is the Xeon extremely fast in both read and write speeds but also lends incredible performance to virtual machines and Docker apps.

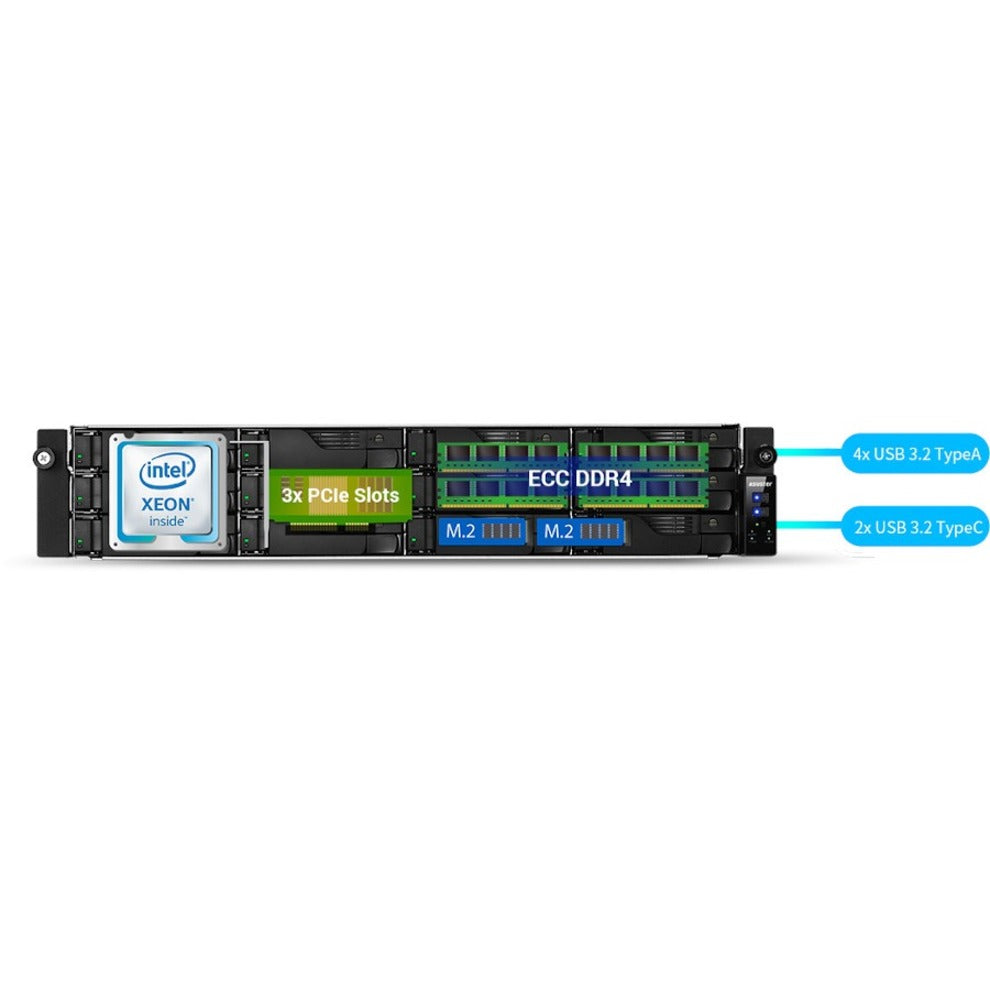

Powerful Hardware and Top flight performance

Intel Xeon 9th generation Quad-Core CPU
Supports and uses ECC RAM.

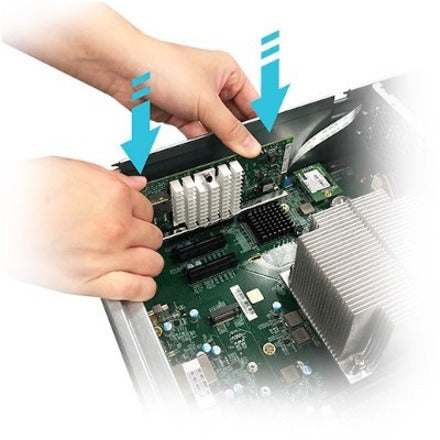

PCIe support for 10/25/40/50 GbE cards as well as SAS cards.
Dual M.2 NVMe SSD ports for fast caching.
USB 3.2 Gen-2 Type A/Type C

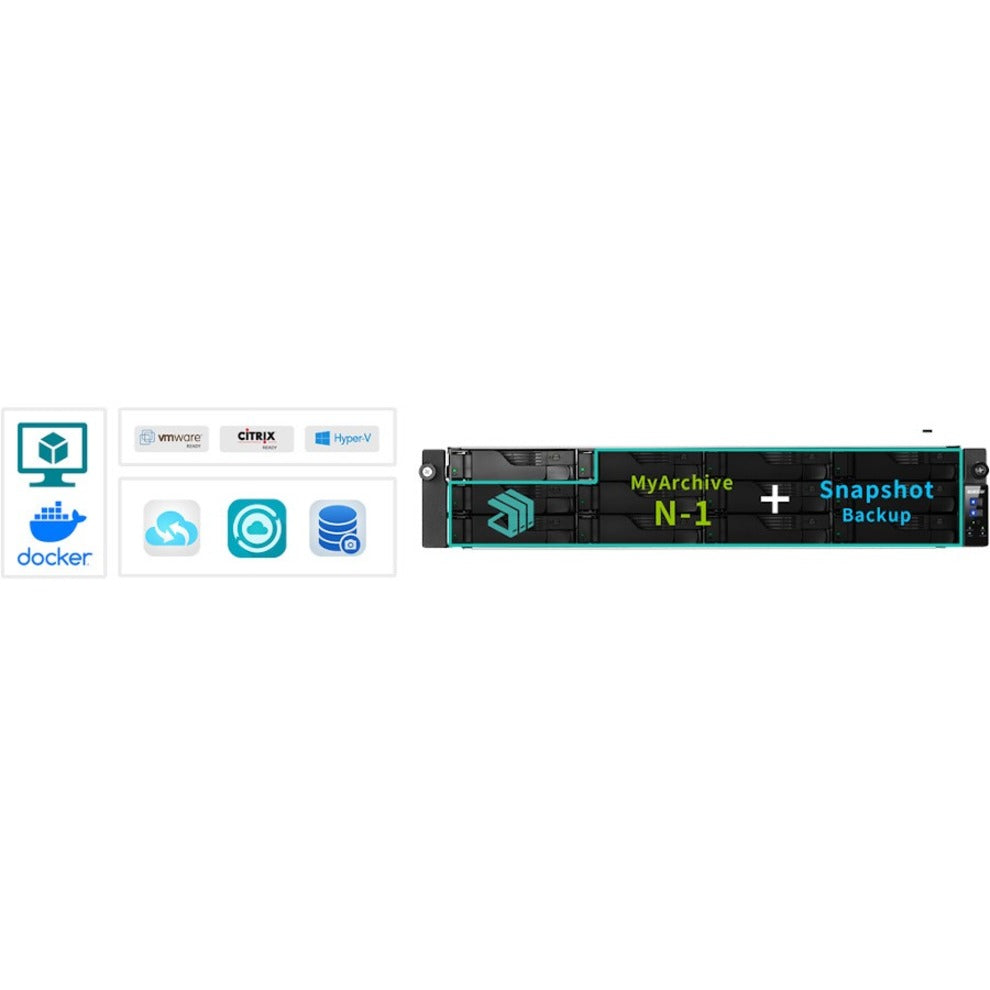

360° Backup solution and enterprise virtualization application

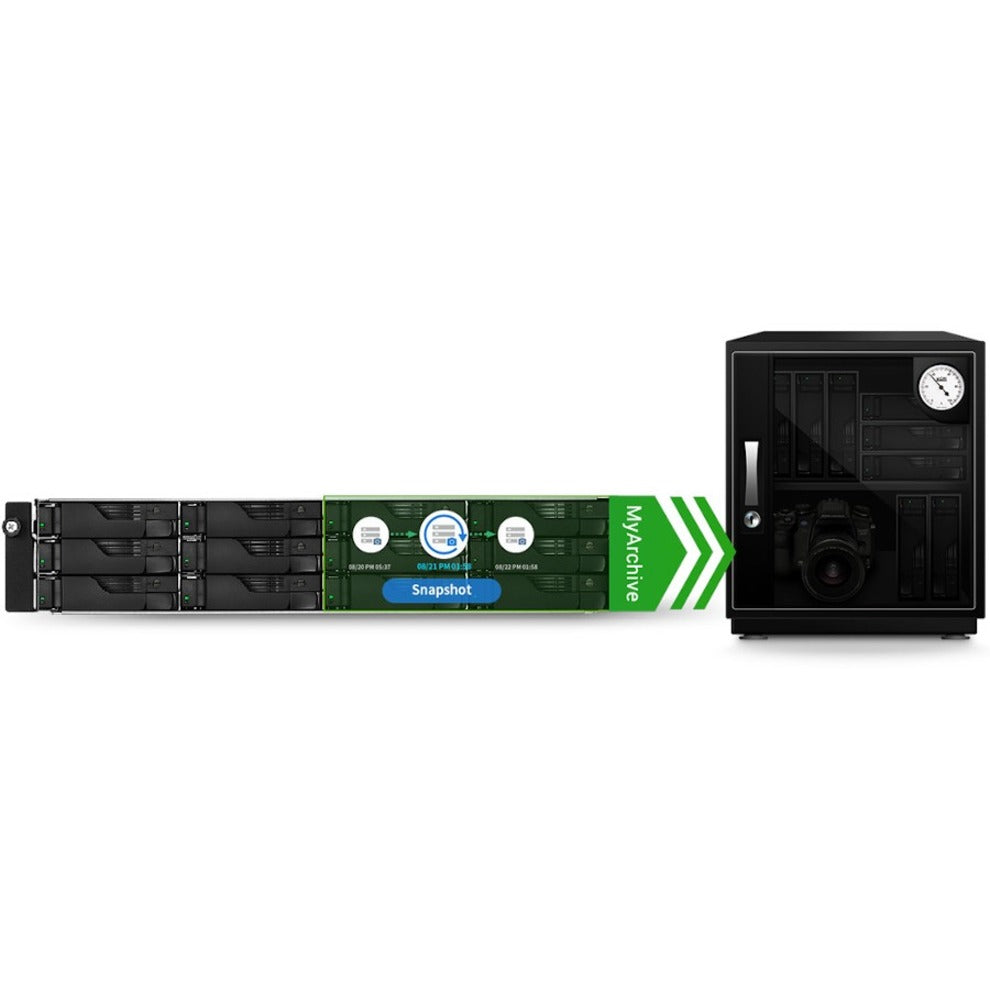

• MyArchive cold storage backups
• Snapshot Center Cloud Backup Center DataSync Center
• Complete iSCSI/IP-SAN and NFS support

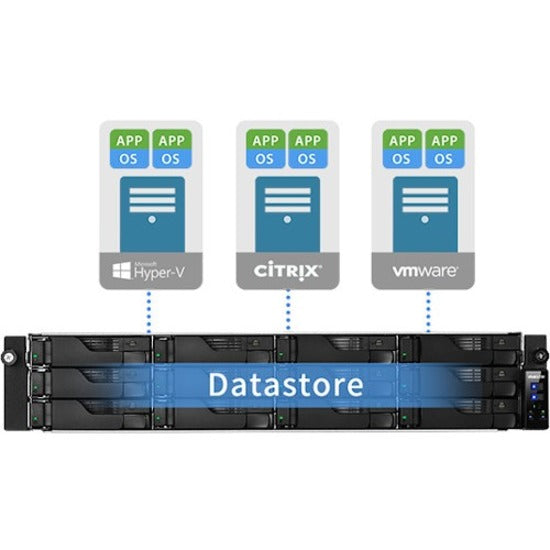

• VMware Citrix and Hyper-V ready
• Supports Virtualization and Docker apps

Server-grade ECC memory

ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes making the NAS the Lockerstor 12R pro our most stable NAS ever.

High efficient and energy saving

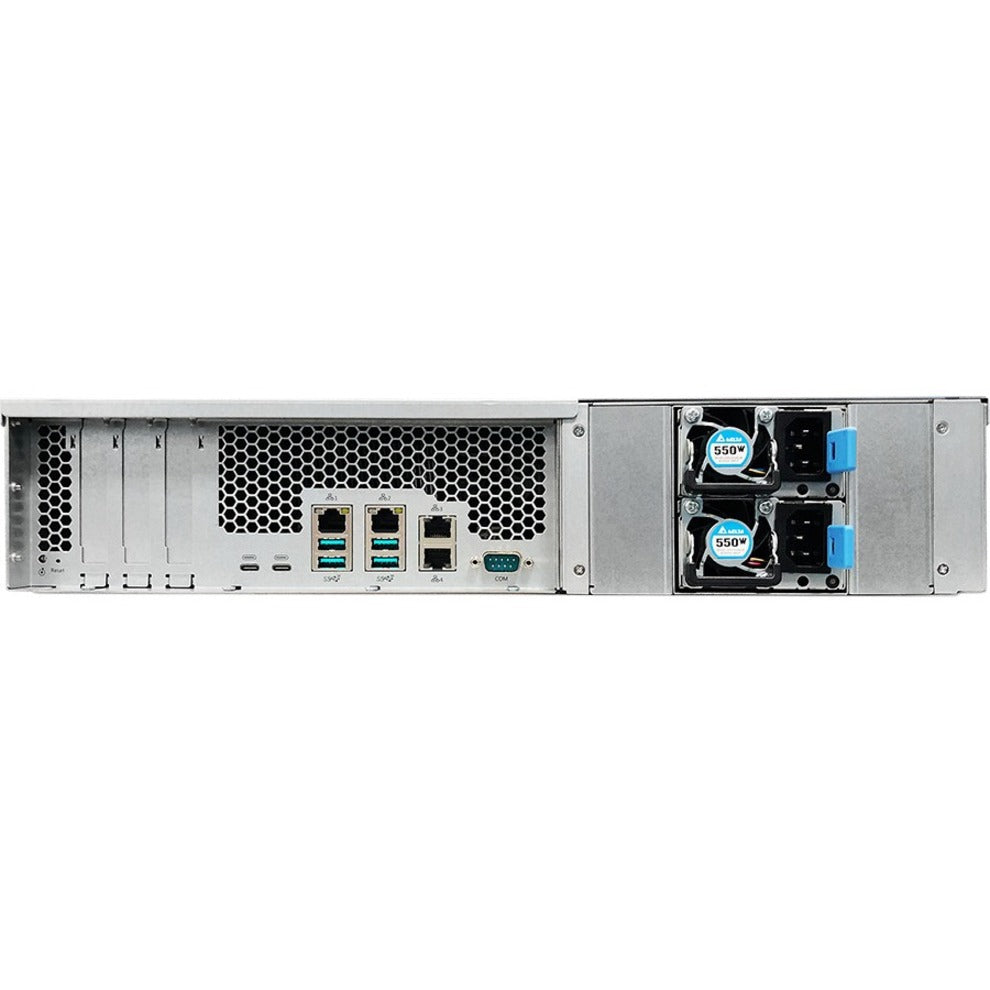

The Lockerstor 12R Pro and 16R Pro are equipped with server-grade redundant 80 PLUS Platinum PSUs. The efficient power supplies installed ensure stability when running your NAS for various apps like virtualization. The included power supplies also increase energy efficiency as they are up to 94% efficient in 50% load and remain efficient at almost any load. This enables enterprise customers to save power and money while also being green. With internal hard drive hibernation the Lockerstor 12R Pro and 16R Pro consume only 45.5 W of power while normal operation only consumes 92.4 W of power.

Enterprise Backup

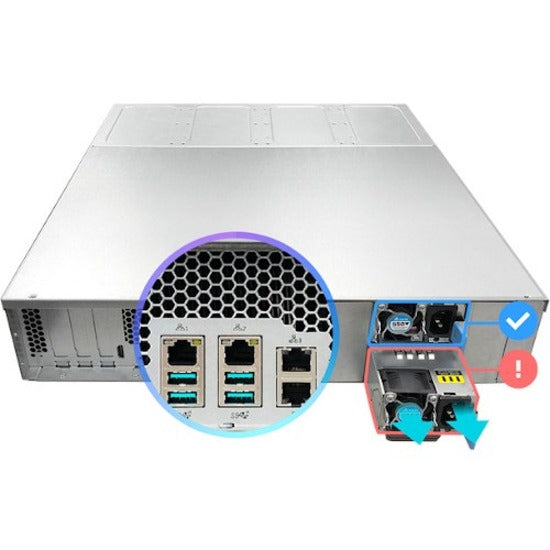

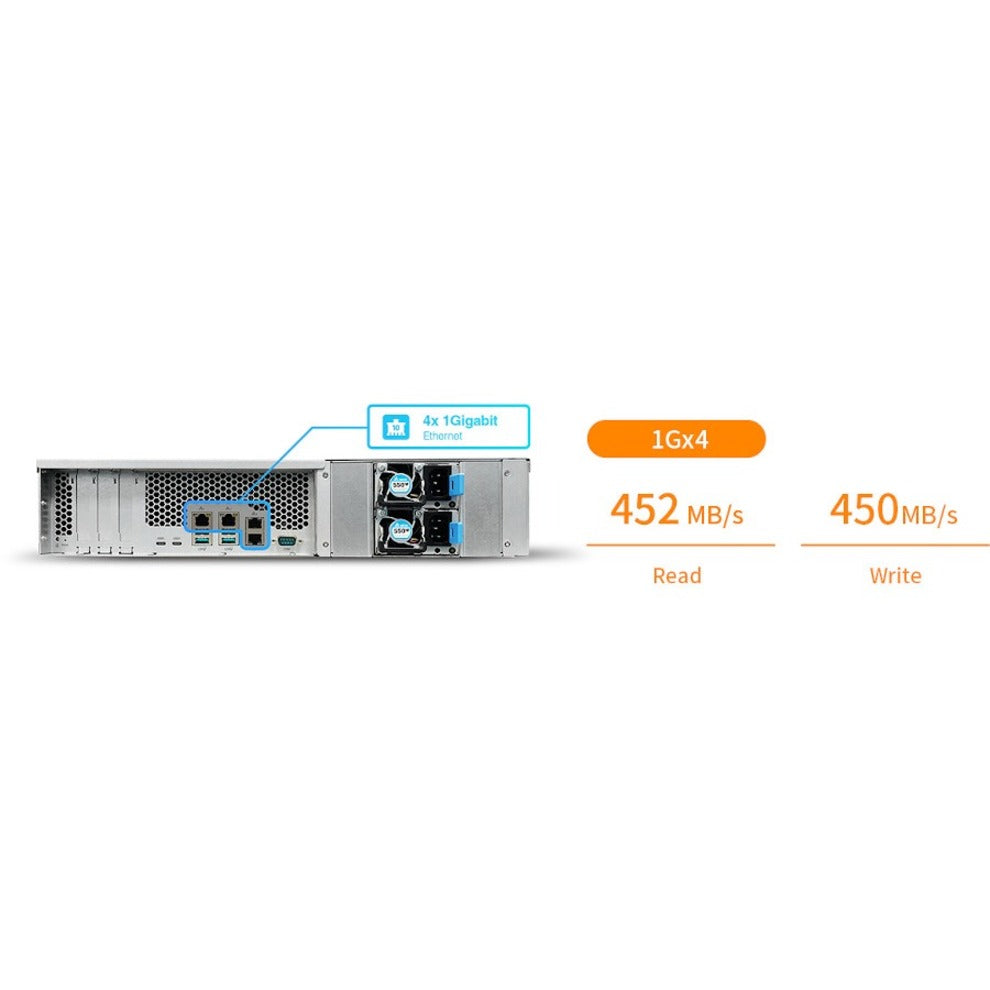

The Lockerstor 12R Pro(2U) features comprehensive backup solutions. The built-in redundant power supply and 4 Gigabit Ethernet ports effectively increase reliability data integrity and execution speeds. The Ethernet ports and power supply all feature failover capabilities (when one fails the other can continue to operate) in order to ensure for continuous data availability.

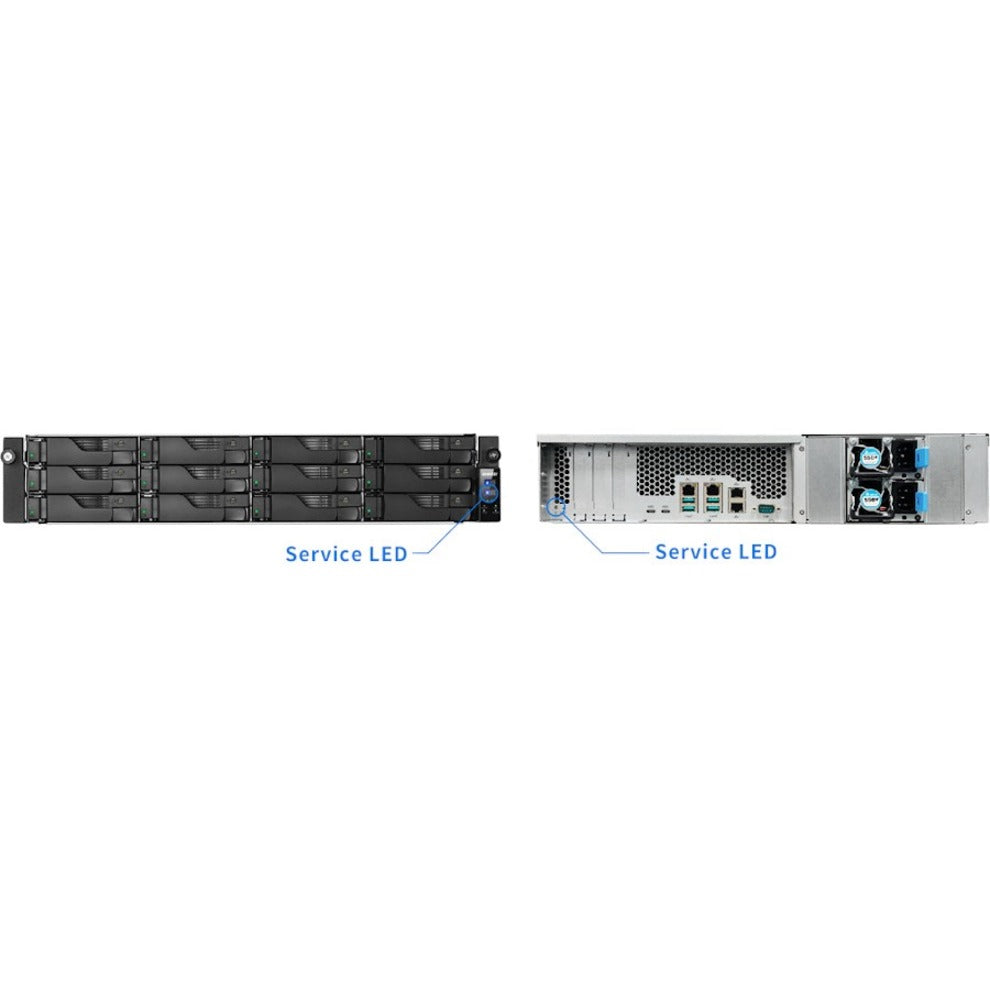

"Find Me" Function and Service Light for Server Rooms

In enterprise environments storage devices are commonly placed together in a server room. In order to allow administrators to quickly find the NAS from among many servers the Lockerstor 12R Pro(2U) / Lockerstor 16R Pro(3U) provides a dedicated button on front panel. When this button is pressed the LED service light on the rear panel of the NAS will light up. ASUSTOR also offers the mobile NAS management app AiMaster which provides the exclusive Find Me function. When Find Me is activated the system status light on the front of the NAS will flash and the system buzzer will sound helping users to quickly find the NAS.

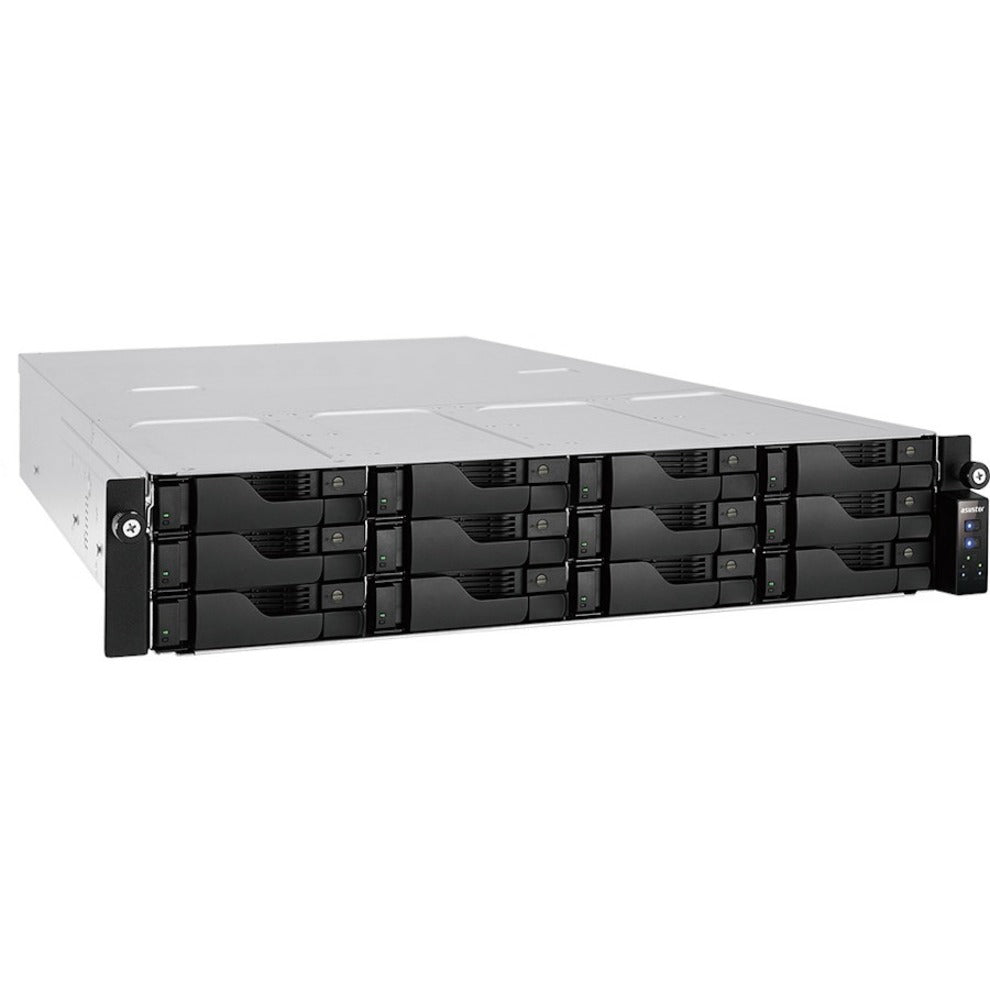

• Lockerstor 12R Pro AS7112RDX SAN/NAS Storage System
• Quick Installation Guide
• 2 x AC Power Cords
• 4 x RJ-45 LAN Cable(Cat 5e)
• 48 x Flat Head Screw (for 3.5" HDD)
• 48 x Flat Head Screw (for 2.5" HDD)
