VESA:

• 150-805mm
• 140-500mm

• LED
• LCD
• Plasma

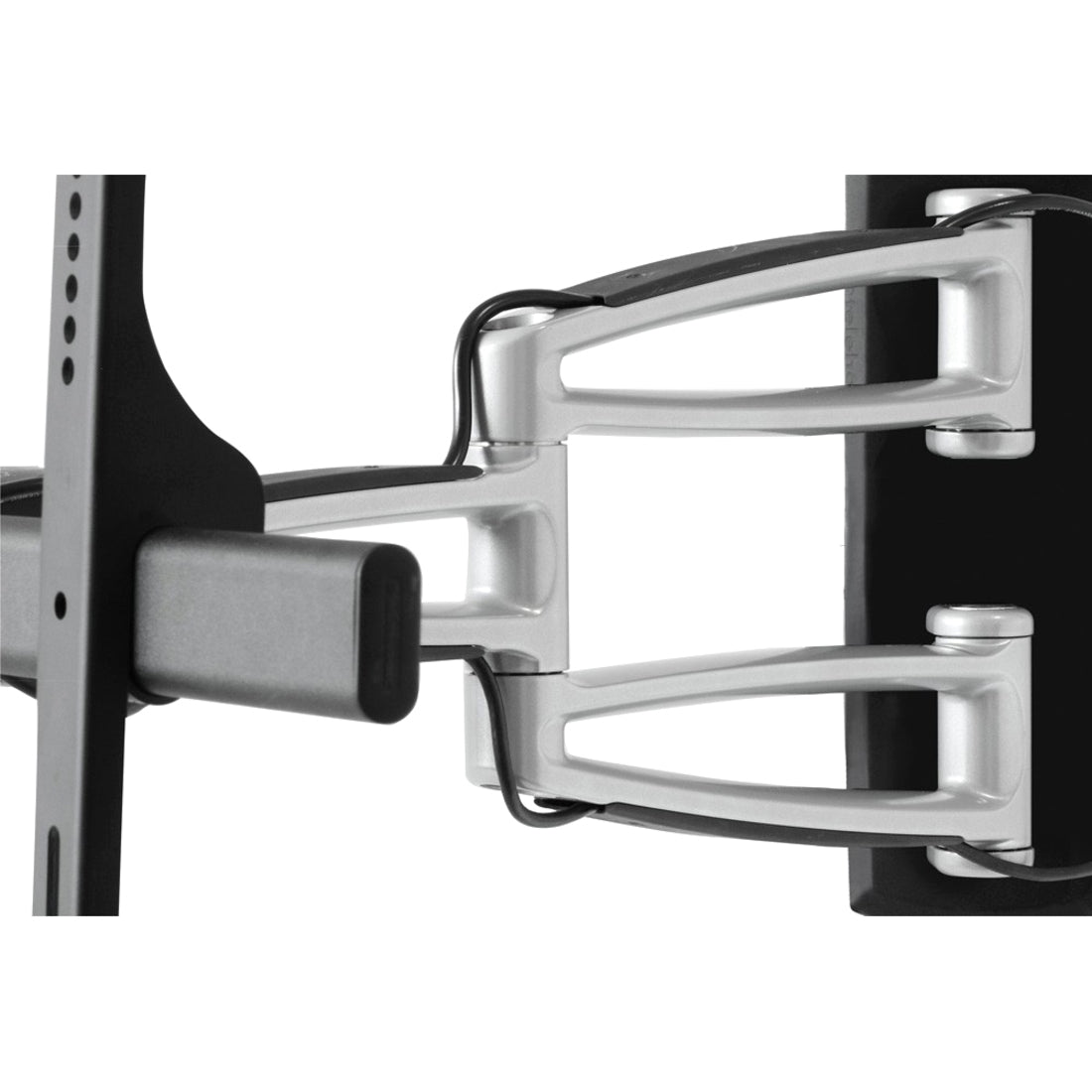

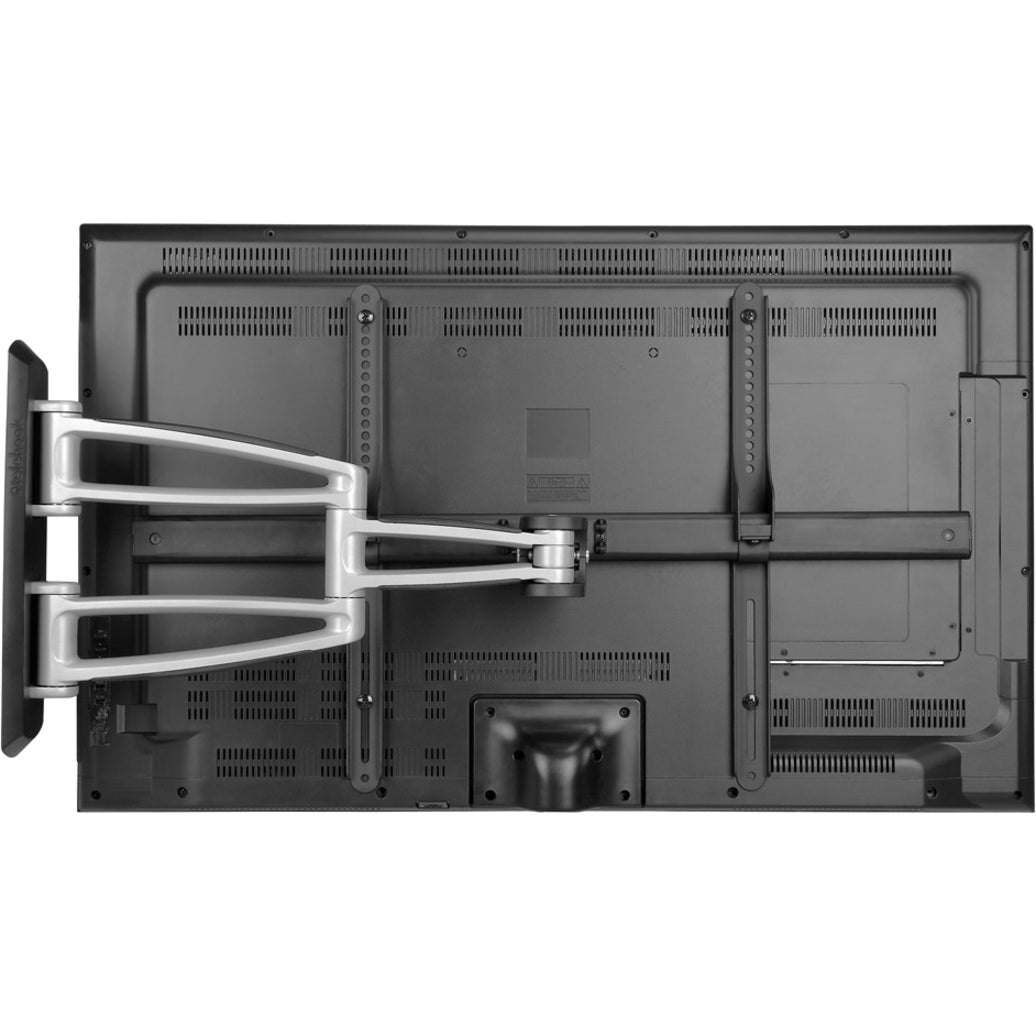

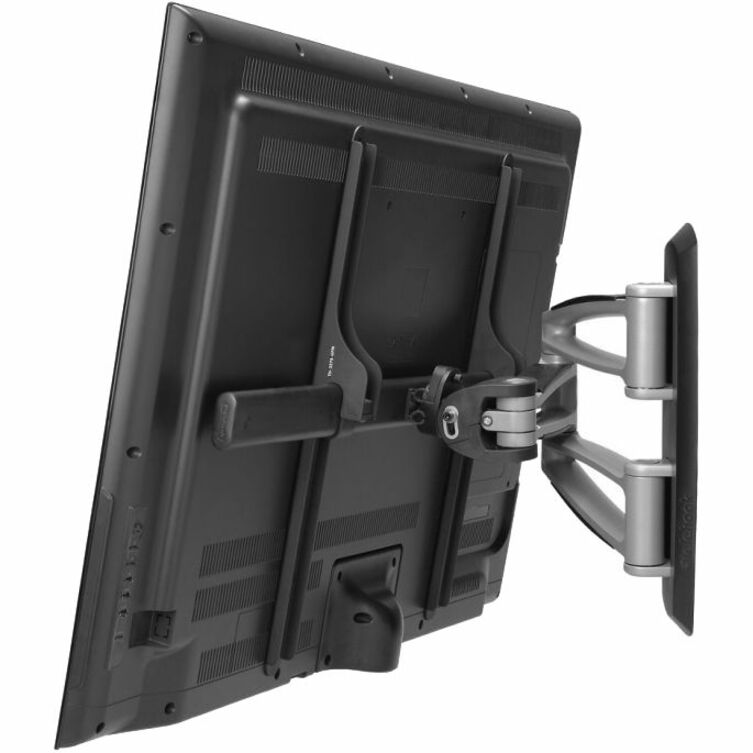

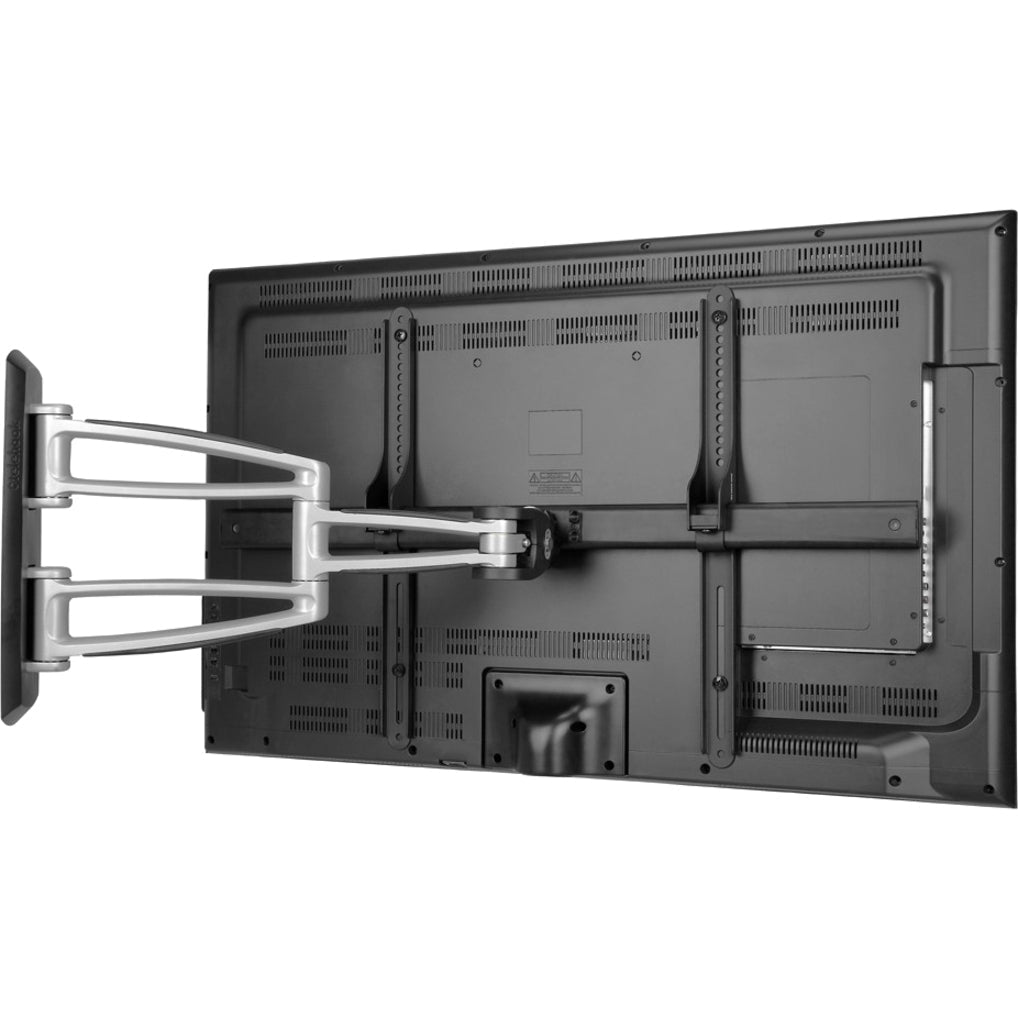

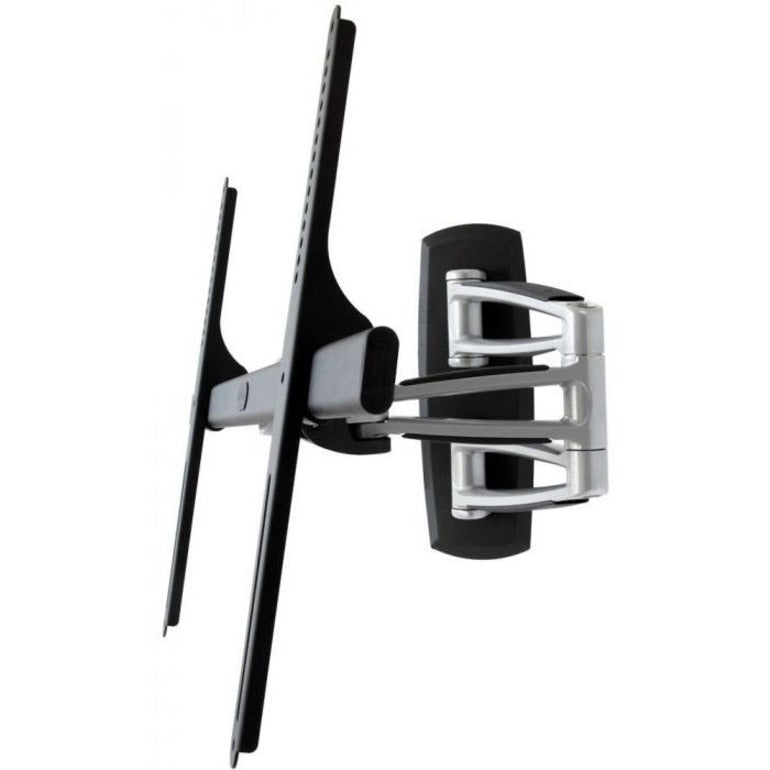

The TH-3270-UFM combines cutting edge sleek design with the capacity to hold a 110lb display out from the wall. Full motion capability is delivered by three articulated points that give you complete control over tilt pan swing pull out and pivot. Such superior control with minimal effort is thanks to Smooth Glide technology and spring assisted tilting mechanisms. The die cast aluminum arm can extend out to 25in from the wall and the universal mounting hole pattern ensures this mount is compatible with a vast range of TVs. It comes pre- assembled with a design that guarantees quick and easy installation. The display can be mounted in either portrait or landscape mode.

• Articulated Arm
• Mounting Rail
• 2 x Mounting Bracket
• Drilling Guide
• 3 x M10 Coach Screw
• 3 x Concrete Anchor
• 4mm/5mm/6mm Allen Key
• 4 x M5 Washer
• 4 x M6 Washer
• 4 x M8 Washer
• Mount Head Screw
• 3 x M10 Washer
• 4 x M4/5 Spacer Bush
• 4 x M6/8 Spacer Bush
• Nylon Washer
• 4 x M8x30mm
• 4 x M8x50mm
• 4 x M6x30mm
• 4 x M6x45mm
• 4 xM5x30mm
• 4 x M5x45mm

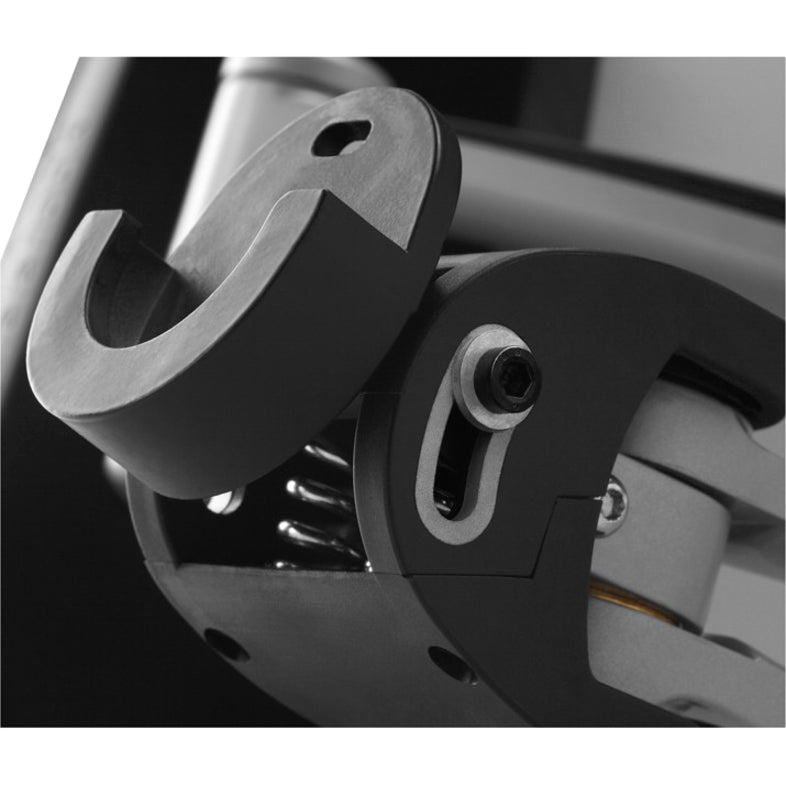

• Spring supported tilt adjustment -5°/+20°
• TV horizontal adjustment of -/+5°

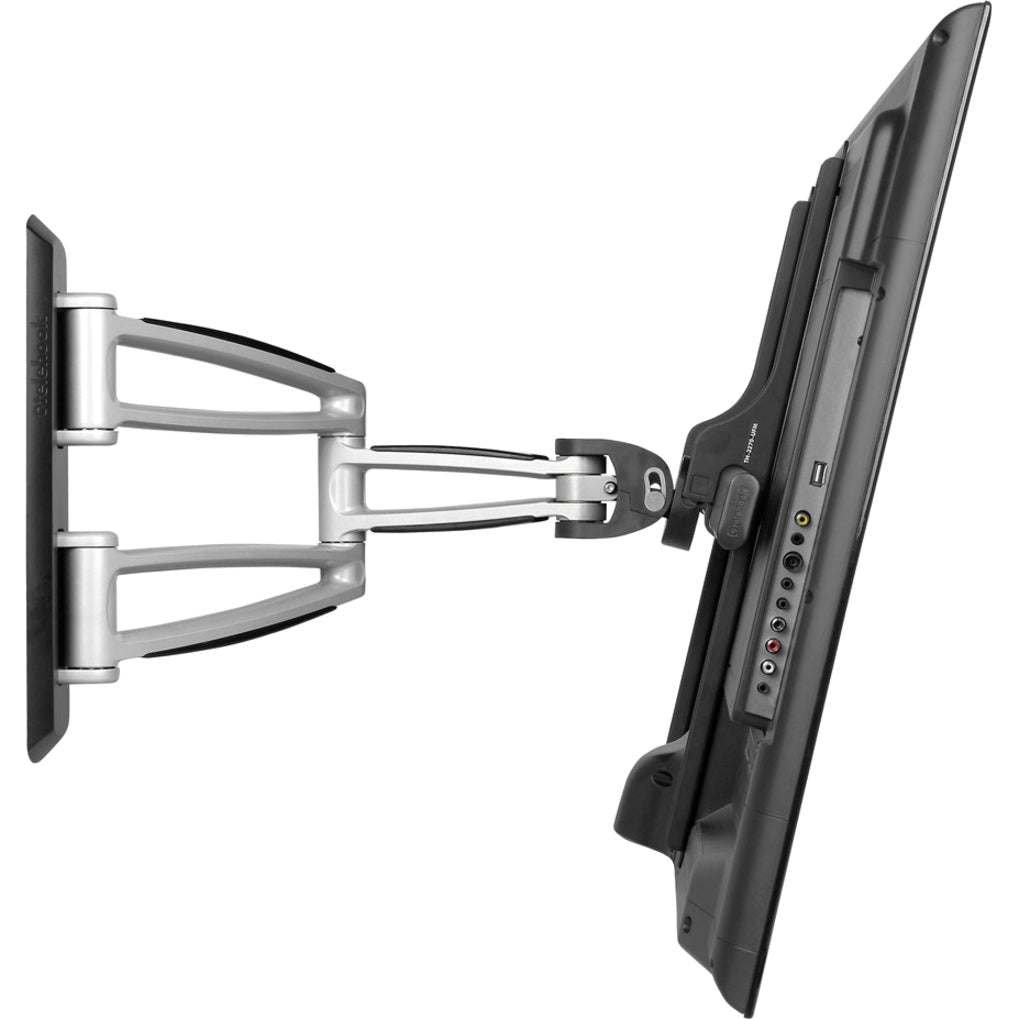

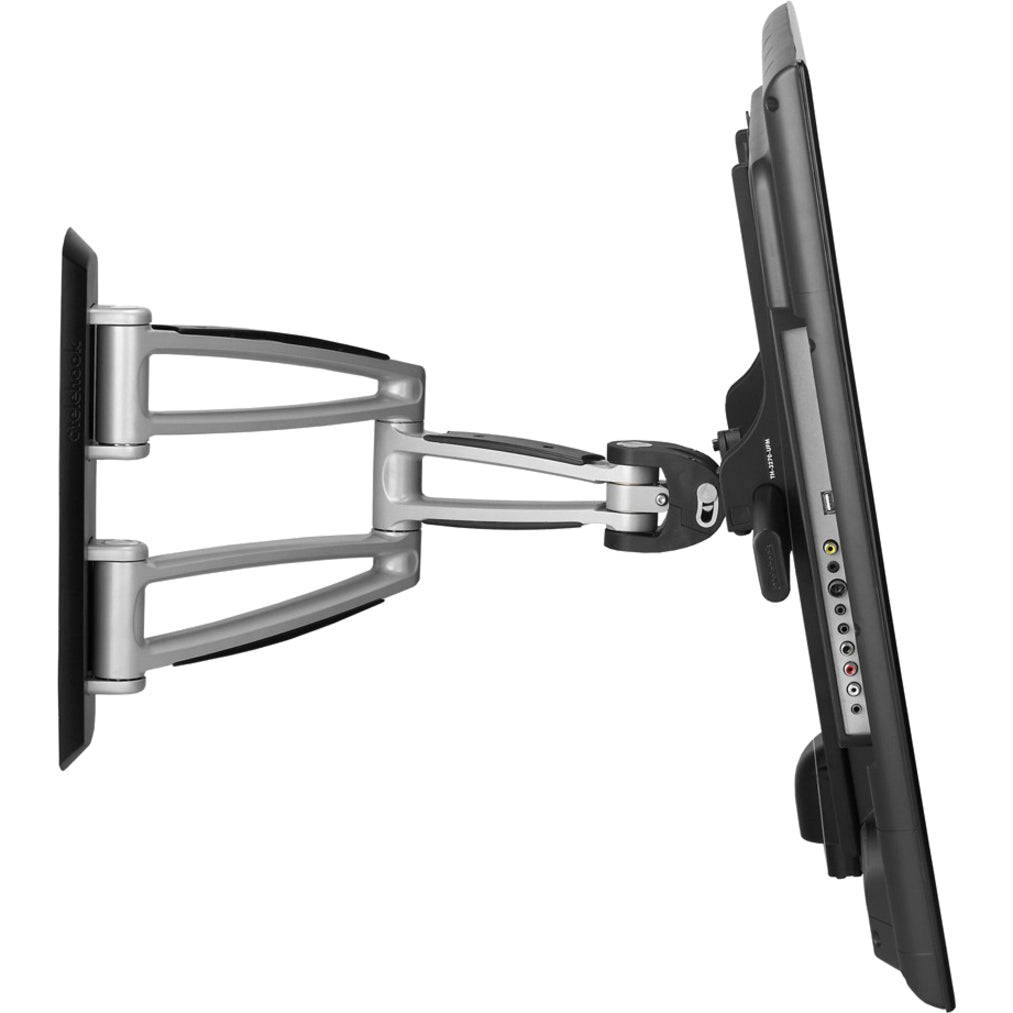

• Maximum reach from wall 635mm

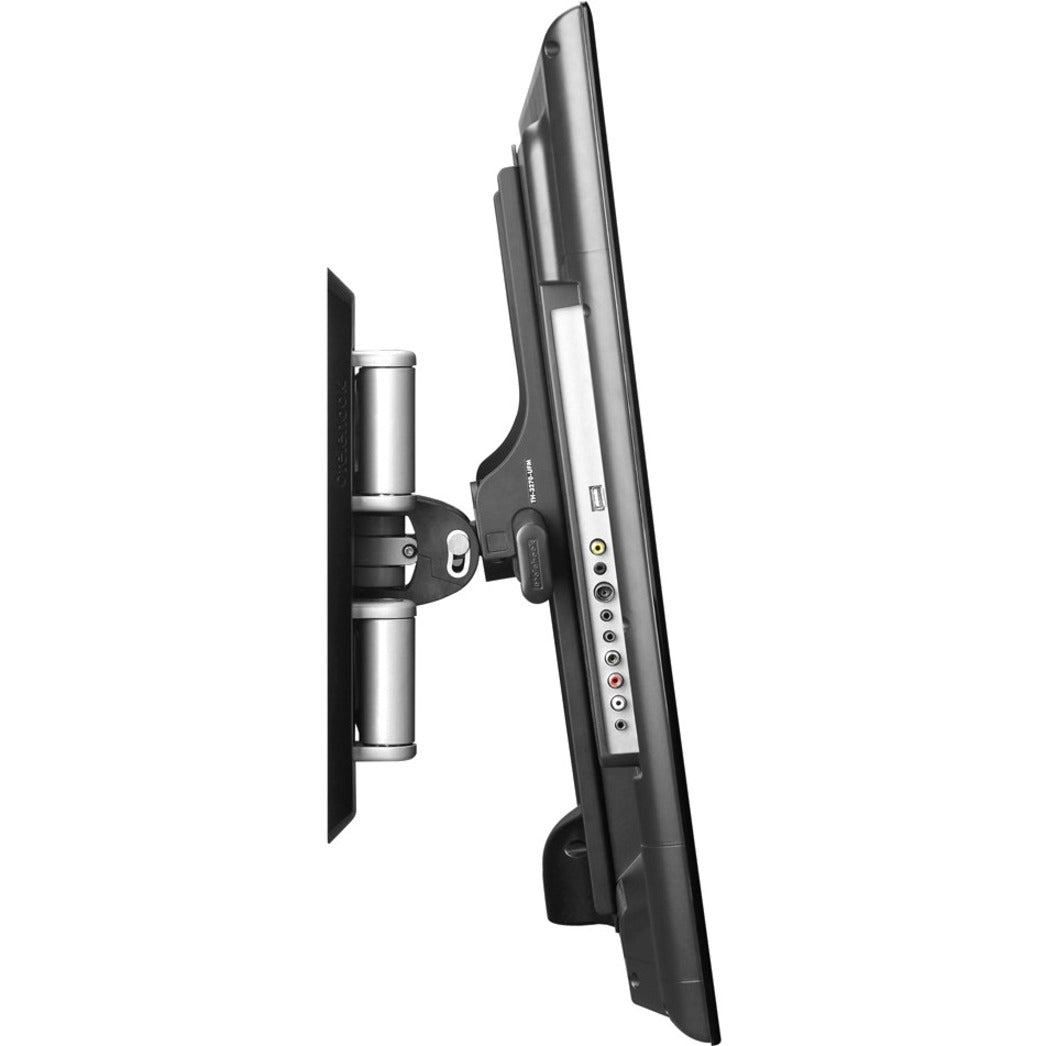

• Minimum distance from wall 174mm
• Smooth Glide technology for effortless articulation or movement
• Offers a full range of movement via three pivot points
• Designed for simple installation

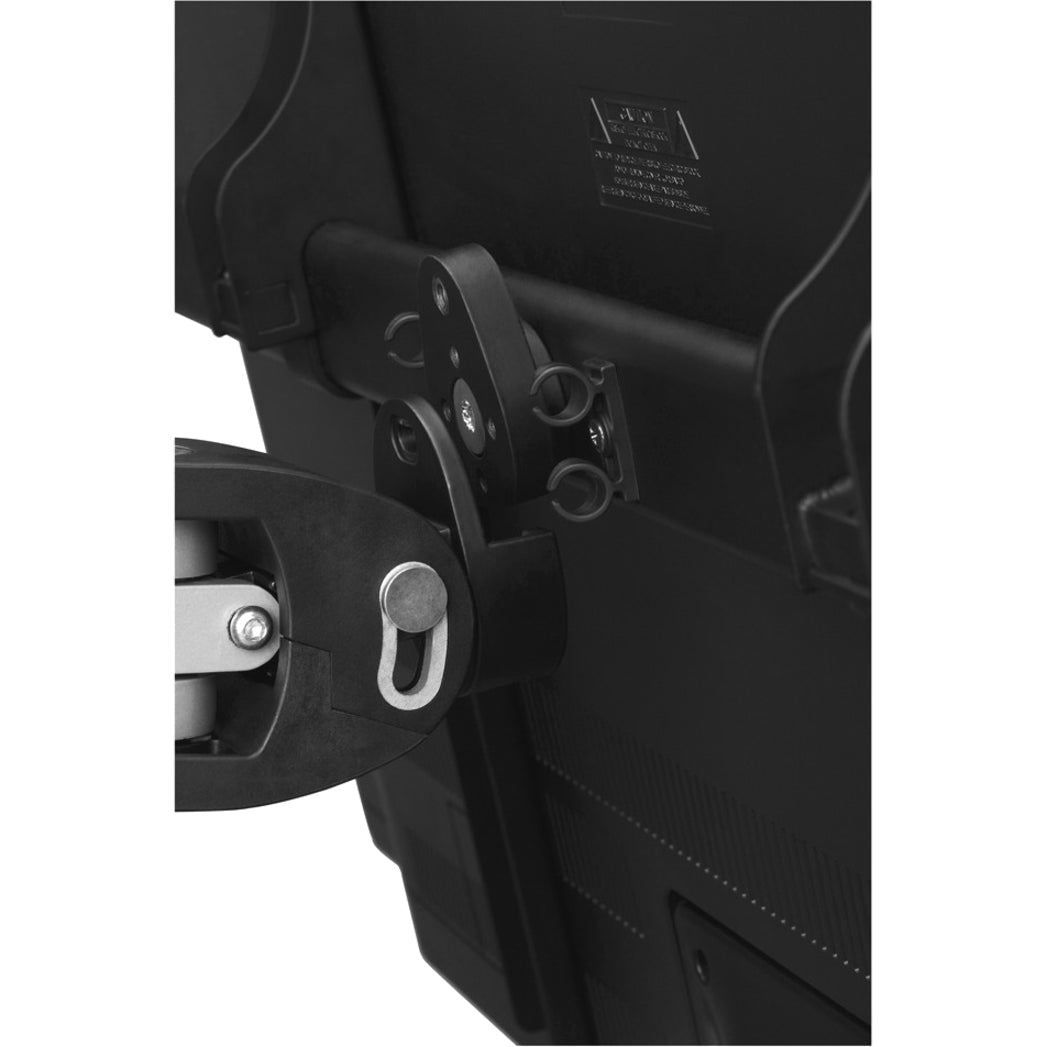

• Quick release mechanism for fast TV attachment or removal
• Advanced internal cable management
• Theft resistant design
