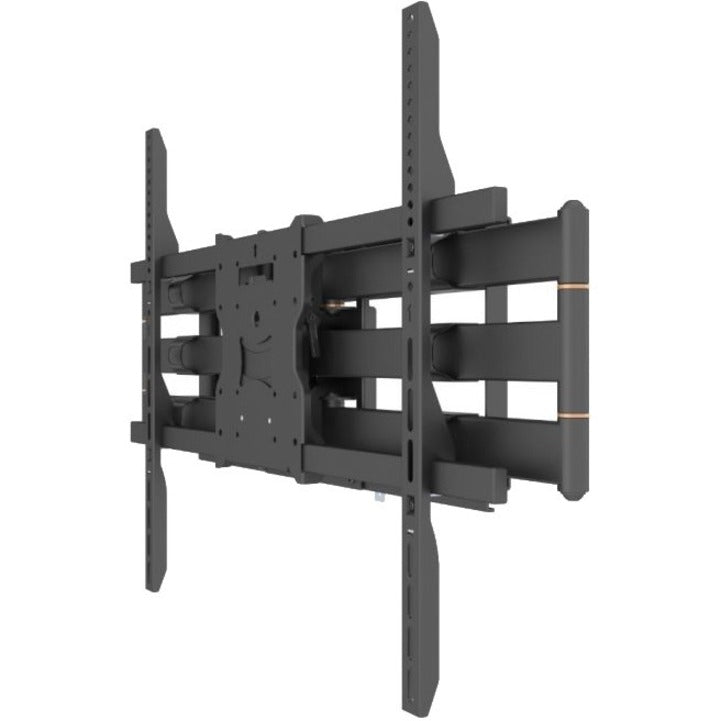

AD-WM-9080 is designed for large and/or heavy displays in installations requiring full motion and extremely long arm extension. AD-WM-9080 enables the lateral shift of the centre of the display upward and downward tilt and rotational display adjustment - plus almost a metre extension from the wall. The mount accommodates use on stud walls with 24" stud spacing.

This mount is rated for 200lbs (90.7kg) displays and a recommended size of 50" to 100". When used with displays at the lower end of the size range even greater freedom of movement is available.

AD-WM-9080's flexibility starts with precise display positioning due to its +/- 7.9" (+/- 200mm) lateral shift capability. Lateral shift is done during installation or while the display is dismounted. Once installed the AD-WM-9080 sits 4" (110mm) from the wall and can extend to a maximum distance of 39" (980mm). The mounted display can pan +/- 90° tilt +5° to -10° upward and downward and rotationally adjust +/- 5° for optimal audience viewing. Standard VESA patterns 100x100 to 200x200 are expanded on with universal mounting patterns to 800x600. These features make AD-WM-9080 one of the most versatile and adaptive full motion wall mounts available.

Constructed primarily of steel for heavy duty operation and long service life AD-WM-9080 is finished in black and has integrated cable management. It suits commercial retail domestic and light industrial environments and serves virtually all applications. Curved and displays with offset VESA exert different force that may affect the stated weight range - contact Atdec with any questions. 10 year warranty.

Designed for easy installation AD-WM-9080 arrives pre-assembled with all display mounting fasteners. Wall mounting hardware is not included.

Key features:

• Arm extension to 39" (980mm) from wall
• Lateral shift during installation
• Pan up/down tilt and rotational adjustment with display mounted
• Integrated cable management
• VESA mounting pattern 100x100 to 800x600
• Pre-assembled for quick and easy installation
• 10 year warranty

Choose me for:

• Extreme freedom of movement with display tilt pan and rotation
• Very long arm extension 39" (980mm) from wall
• Large and/or heavy displays to 200lbs (90kg)
• 'Pop-out' functionality for recessed displays

• Wall Mount
• Cable Management Clips
• Display Mounting Hardware
• Installation Guide
