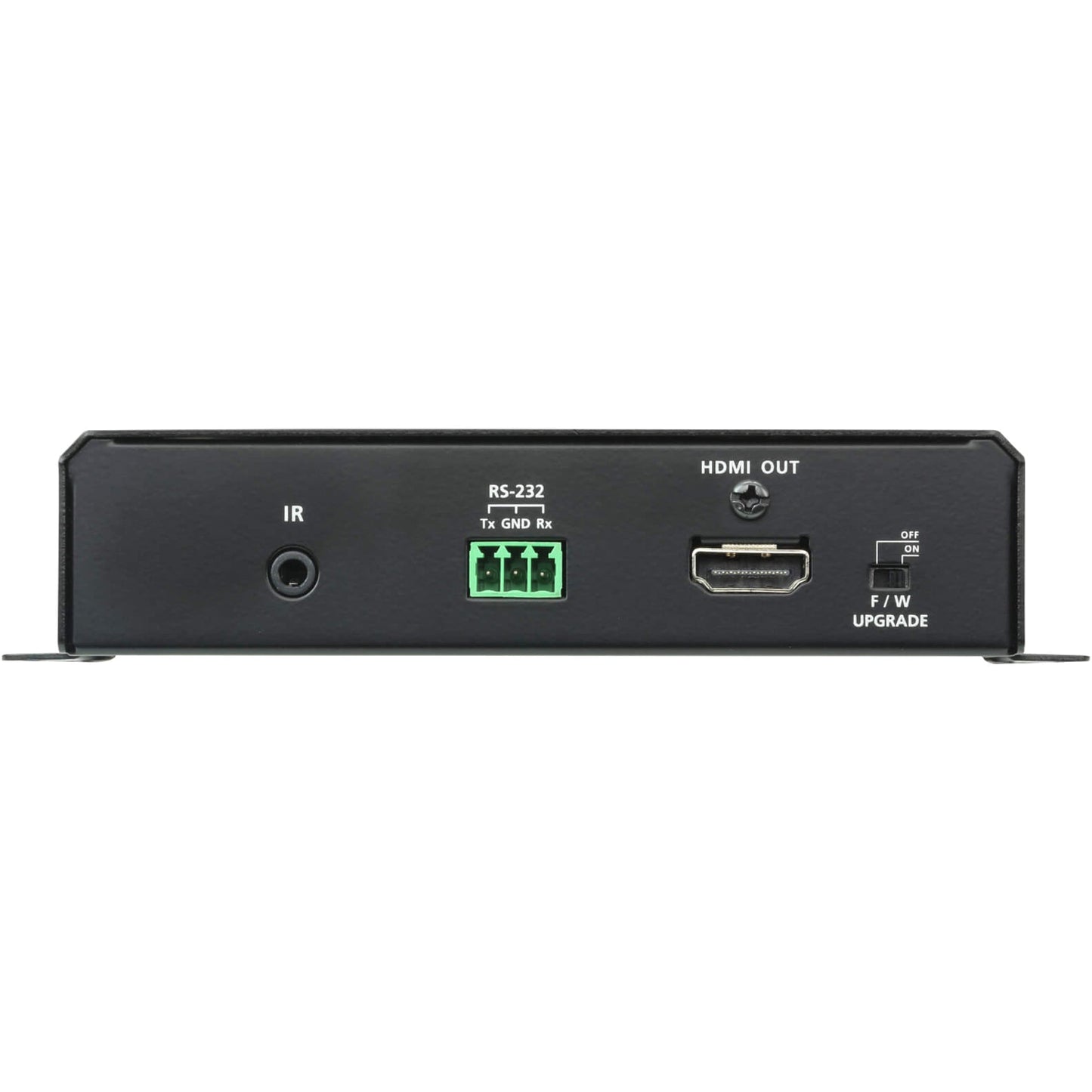

ATEN 4K HDMI HDBaseT Receiver with Scaler-TAA Compliant

ATEN 4K HDMI HDBaseT Receiver with Scaler-TAA Compliant

SKU: 1045689560      MFR: ATEN Technology Inc

GTIN: 672792007859

Product Description

ATEN 4K HDMI HDBaseT Receiver with Scaler-TAA Compliant - 1 Output Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE816R

Features

  • Extends HDMI RS-232 and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDCP 2.2 compatible
  • Superior video quality:
  • ? 4K up to 100 m
  • ? 1080p up to 150 m
  • HDBaseT Long Reach Mode - activated by RS-232 commands Long Reach Mode extends signals up to 150 m 1080p via a single Cat 5e/6 cable
  • Scaler - scales videos of different resolutions to their optimal output for display and to avoid black screen
  • Video Wall - features video wall profiles that allows for custom screen layouts via an intuitive web GUI
  • Seamless Switch™ - close-to-zero second switching that provides continuous video streams real-time switching and stable signal transmissions

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Maximum Operating Distance492.13 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height1.18"
Receiver Width5.78"
Receiver Depth6.61"
Receiver Weight (Approximate)1.48 lb
Country of OriginTaiwan
ColorBlack
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelVE816R
Product Name4K HDMI HDBaseT Receiver with Scaler
Product LineVanCryst
Manufacturer Part NumberVE816R
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable and at the same time scales videos of different resolutions for optimal display.

Supporting bi-directional RS-232 channel and IR signaling pass-through the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process.

When working with ATEN HDMI HDBaseT-Lite Matrix Switches or Modular Matrix Switches with HDBaseT output boards the VE816R supports video wall integration and ATEN's Seamless Switch ™ function providing users the ultimate A/V experiences.
Package Contents
  • 4K HDMI HDBaseT Receiver with Scaler
  • 1 x IR Transmitter
  • 1 x IR Receiver
  • 1 x Terminal Block
  • 1 x Power Adapter
  • 1 x User Instructions
Limited Warranty2 Year
Product FamilyVanCryst
