ATEN is well known for delivering innovative technologies that drive connectivity and access management solutions. As such we introduce the new ATEN KE8950 4K HDMI KVM over IP Extender that brings together a unique blend of features and new technologies that offer the ultimate solution for extending computers to consoles on or off your IT infrastructure.

Utilizing expertise in over IP KVM solutions KE8950 are IP-based HDMI KVM extenders that allow access to a computer system from a remote USB console to anywhere over an intranet. The KE8950 KVM over IP Extenders support one HDMI monitor at each end providing a greatly improved video display image with 4K x 2K video resolution (up to 3840 x 2160). KE8950 also support 1Gbps SFP fiber module expansions enabling connections via fiber optic network to extend distances in transmission.

The 4K HDMI KVM over IP Extender consists of a Transmitter unit that connects to the computer and a Receiver unit that provides console access from a separate location. The computer is accessed from the remote console over a standard TCP/IP network via Cat 5e/6 cable that allows point-to-point point-to-multipoint multipoint-topoint and multipoint-to-multipoint administration. KE8950 can be connected either directly to each other or via a high-speed network over a copper-based or fiber-based LAN.

Implementing the KE Matrix Management Software (CCKM) with KE8950 IT administrators receive advanced features functioning as auto detection of all KE Series Extenders on the same subnet for the sake of fast installation or configuration username/password authentication and authorization and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection supporting AES encryption for secured data transmissions while RADIUS LDAP AD or remote user authentication provides an added layer of connection security; moreover with an OSD RS-232 support and Auto MDIX the KE series is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.

More flexible and efficient operations can be achieved in the KVM over IP Matrix System which integrates KE Series Extenders with the CCKM management software such as multi-display setups video grouping video profile scheduling and enhancements that give greater access to quick and easy control tools to configure KE devices over a network. Whether you're configuring monitoring administrating controlling or extending computer access the KVM over IP Matrix System is made adaptable to fit an endless variety of working environments and workstation settings as well as to provide solutions in broadcasting control center multimedia manufacturing and many other industries where matrix extending is required.

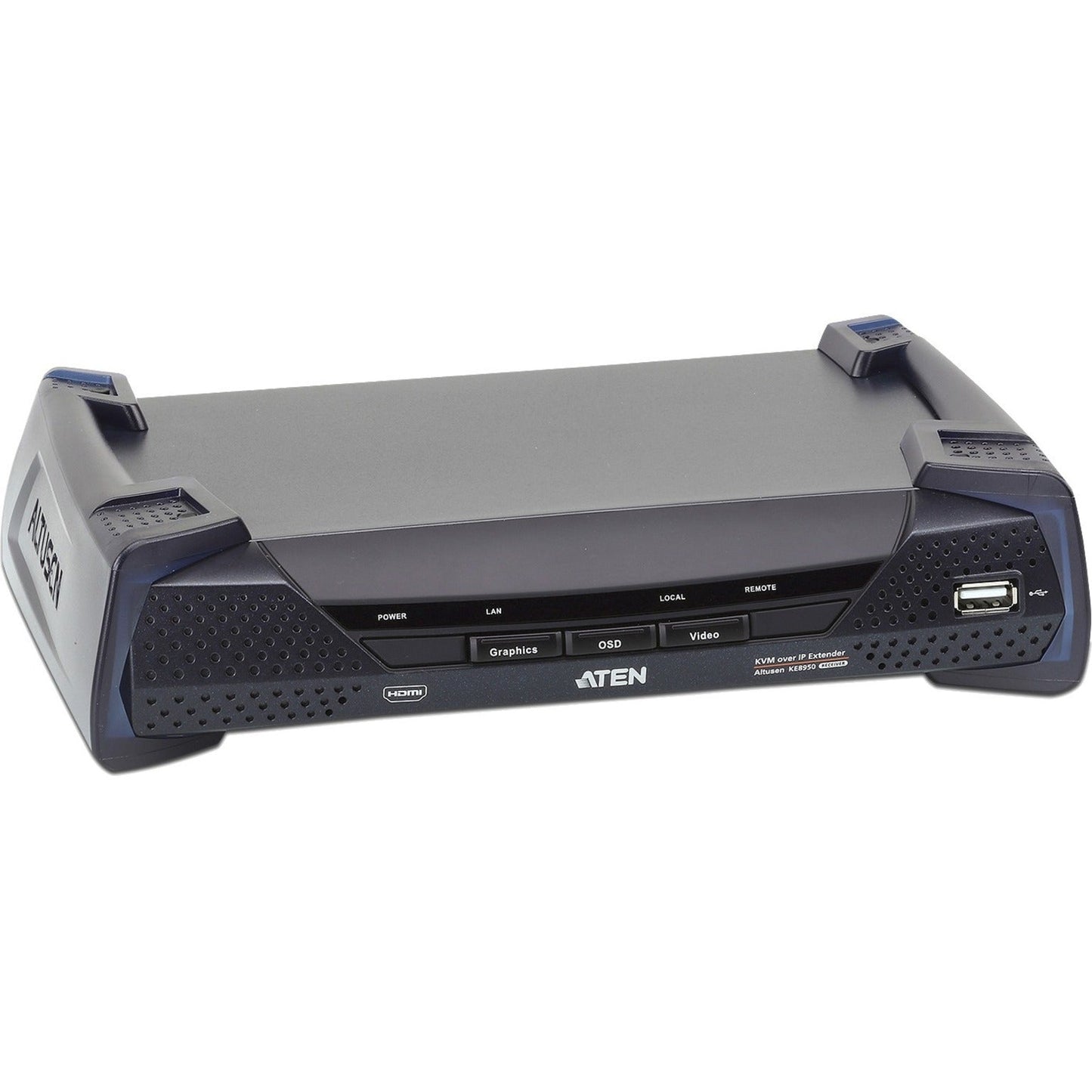

• 4K HDMI Single Display KVM over IP Receiver
• 1 x Power Adapter
• 1 x HDMI LockPro
• 1 x User Instructions
