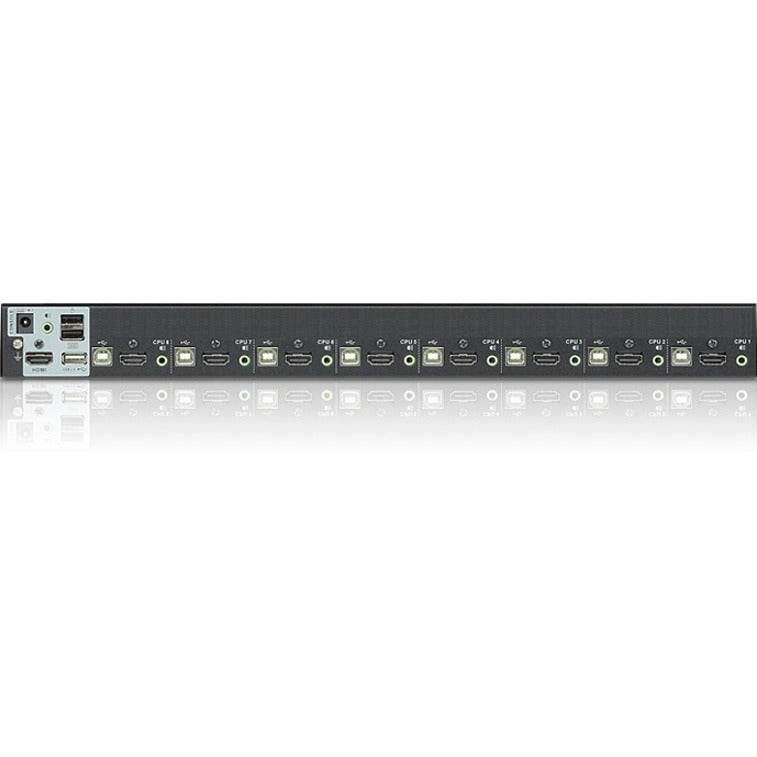

• ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
    ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
  • ATEN 8-Port USB HDMI KVM Switch-TAA Compliant
1 2

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant

SKU: 1028055497      MFR: ATEN Technology Inc

GTIN: 672792005565

Product Description

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CS1798

Features

  • One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
  • HDMI compatible
  • Cascadable to three levels-control up to 512 computers*1
  • Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
  • 2-port USB 2.0 hub built in
  • Computer selection via front panel pushbuttons hotkeys and multilingual on-screen display (OSD)
  • Independent switching of KVM and USB focus
  • OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
  • Firmware upgradable
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

Product Details

Product TypeKM Switchbox
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution1920 x 1200
Graphic ModeWUXGA
USBYes
HDMIYes
Number of HDMI Ports9
HeadphoneYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports12
Number of Computers Supported8
Number of Local Users Supported1
Minimum Scan Interval1 Second
Country of OriginTaiwan
Height4.4"
Width25.7"
Depth43.7"
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
MicrophoneYes
Product ModelCS1798
Product Name8-Port USB HDMI KVM Switch
Input Voltage5 V DC
Manufacturer Part NumberCS1798
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.

The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

More from the Manufacturer
Platform SupportedMac
Package Contents
  • 8-Port USB HDMI KVM Switch
  • Rack Mounting Kit
  • 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH)
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Quick Start Guide
Weight (Approximate)7.69 lb
Marketing Information

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.

The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

More from the Manufacturer
View full details
$522.99 USD
$522.99
Sale Sold out

In Stock - 15 (Available by Mon, Jan 27 - Fri, Jan 31)


Update


Shipping calculated at checkout.

ATEN 8-Port USB HDMI KVM Switch-TAA Compliant - 8 Computer(s) - 1 Local User(s) - 1920 x 1200 - 1 x Network (RJ-45) - 12 x USB - 9 x HDMI - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CS1798

Features

  • One USB console controls up to eight HDMI interface computers and two additional USB 2.0 devices
  • HDMI compatible
  • Cascadable to three levels-control up to 512 computers*1
  • Multi-Display feature - stack up to eight CS1798 units and display video from up to eight monitors(dual display/triple display/quad display/multi-display)
  • 2-port USB 2.0 hub built in
  • Computer selection via front panel pushbuttons hotkeys and multilingual on-screen display (OSD)
  • Independent switching of KVM and USB focus
  • OSD Backup/Restore feature-enables the administrator to back up the switch's configuration and user profile information
  • Firmware upgradable
  • Video DynaSync™ - exclusive ATEN technology eliminates boot-up display problems and optimizes resolution when switching between ports

Product Details

Product TypeKM Switchbox
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution1920 x 1200
Graphic ModeWUXGA
USBYes
HDMIYes
Number of HDMI Ports9
HeadphoneYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports12
Number of Computers Supported8
Number of Local Users Supported1
Minimum Scan Interval1 Second
Country of OriginTaiwan
Height4.4"
Width25.7"
Depth43.7"
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
MicrophoneYes
Product ModelCS1798
Product Name8-Port USB HDMI KVM Switch
Input Voltage5 V DC
Manufacturer Part NumberCS1798
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.

The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

More from the Manufacturer
Platform SupportedMac
Package Contents
  • 8-Port USB HDMI KVM Switch
  • Rack Mounting Kit
  • 2 x Custom USB HDMI KVM Cable Sets (2L7D02UH)
  • 1 x Firmware Upgrade Cable
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Quick Start Guide
Weight (Approximate)7.69 lb
Marketing Information

The CS1798 8-port USB HDMI KVM Switch is a multi-purpose appliance that consolidates access and control of up to 8 HDMI computers from a single USB keyboard USB mouse and monitor console.

The CS1798 can be cascaded up to three levels - to control up to 512 computers - all from a single console. In addition the CS1798 features multi-display functionality which enables the use of standard USB cables to stack up to eight switches in a multi-display installation where each computer is fitted with multiple video cards. It allows you to contrast analyse and monitor video output in convenient ways substantially simplifying the working environment. Furthermore the CS1798 comes with ATEN's on-screen display (OSD) function which can access any computer connected to the installation it also offers OSD confi guration backup/restore to save/back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. You can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).

More from the Manufacturer
