• 8 x 8 HDMI Matrix Switch with Scaler
• 1 x Power Cord
• 1 x Mounting Kit
• 1 x User Instructions

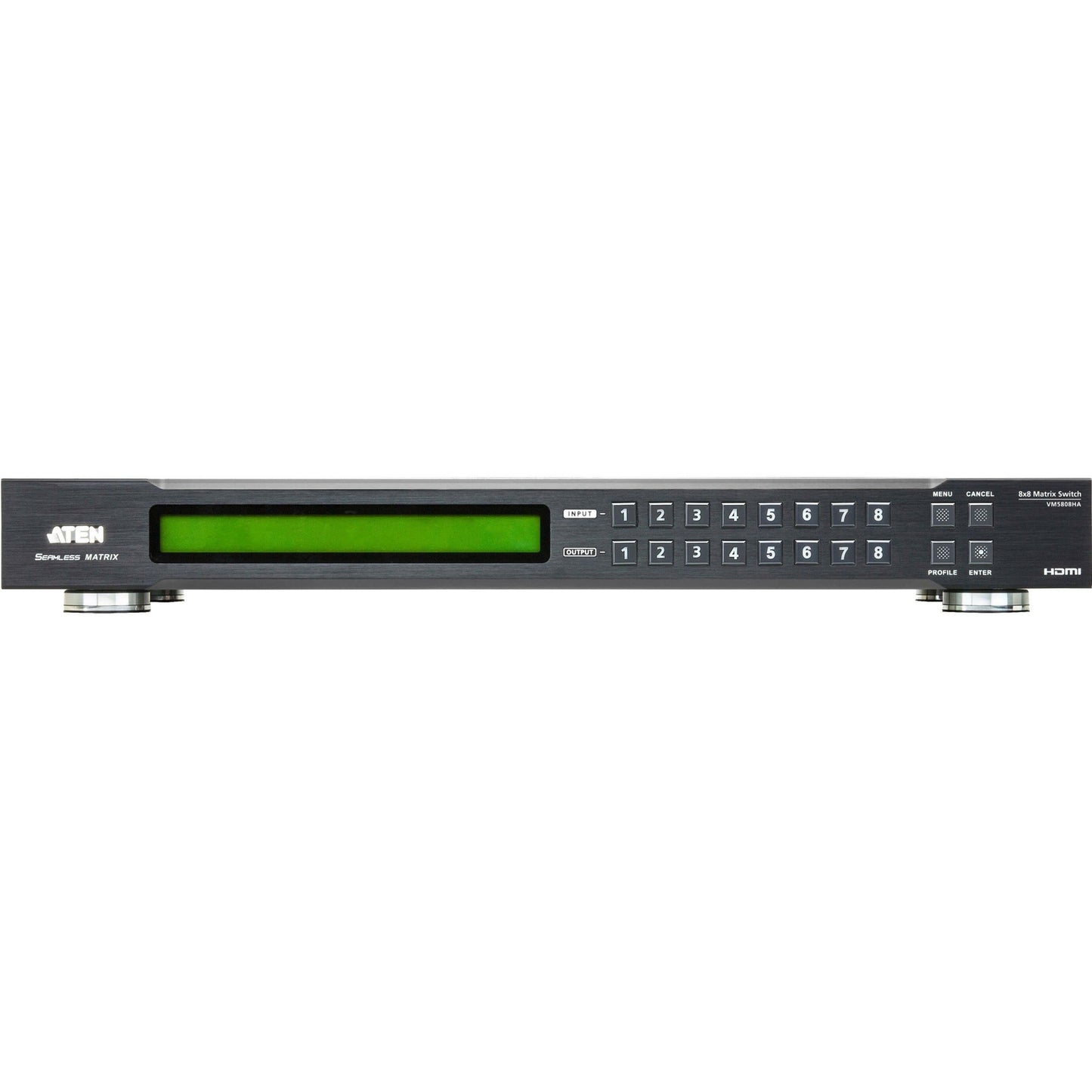

The 8 x 8 HDMI Matrix Switch allows any of the 8 HDMI input signals to be routed to any of the 8 HDMI output channels with no compromise on flexibility. Multiple methods are available when it comes to controlling the device such as through the front panel pushbuttons RS-232 and Ethernet (Telnet / Web GUI) connections. Plus the VM5808HA supports ATEN Video Matrix Control app for device status viewing and controlling. It can also be integrated with ATEN Control System a platform where Ethernet-based ATEN Video Matrix Switches and third-party devices (such as projectors lights AV devices) are centrally monitored managed and controlled. Signal management is made efficient with the front panel LCD giving users a quick view of all port connections. In addition the local HDMI output port allows real-time monitoring of multiple sources on a single display exactly where the Matrix Switch is located.

As the ultimate video wall solution the FPGA-based VM5808HA features ATEN's exclusive Seamless Switch technology ensuring uninterrupted video streams real-time control and stable signal transmission. The built-in scaler automatically scales any input video feed to match the native resolution of the output display for the best video and picture quality. To prevent screen tearing the VM5808HA adopts FrameSync technology to synchronize the scaler output frame rates to the input signal frame rates guaranteeing stunning tear-free video walls.

Speaking of audio functionality the Matrix Switch features audio de-embedding enabling digital audio from any HDMI input to be assigned to the stereo output for added flexibility of installation. The VM5808HA is an HDMI video routing solution ideal for scenarios where customizable real-time AV signal transportation from multiple sources to one or more destinations is required from control centers server rooms to any kind of video wall applications.
