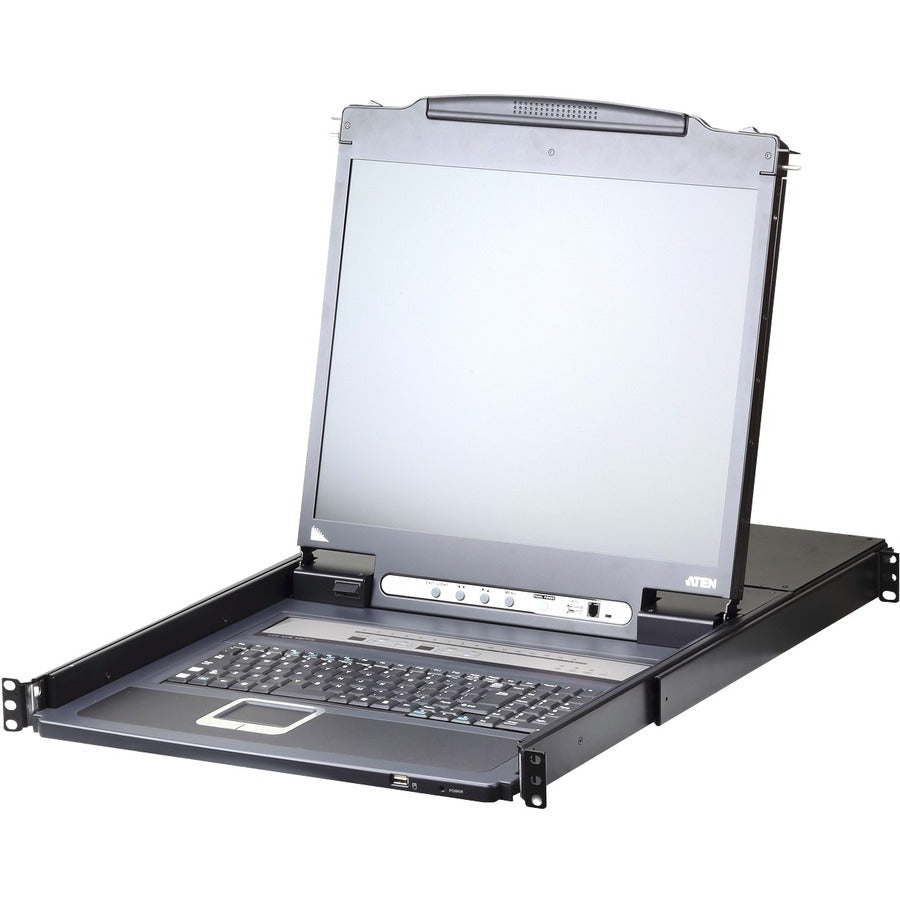

• 16PORT 19 LCD INTEGRATED IP KVM
    16PORT 19 LCD INTEGRATED IP KVM
  • 16PORT 19 LCD INTEGRATED IP KVM
  • 16PORT 19 LCD INTEGRATED IP KVM
  • 16PORT 19 LCD INTEGRATED IP KVM
  • 16PORT 19 LCD INTEGRATED IP KVM
1 5

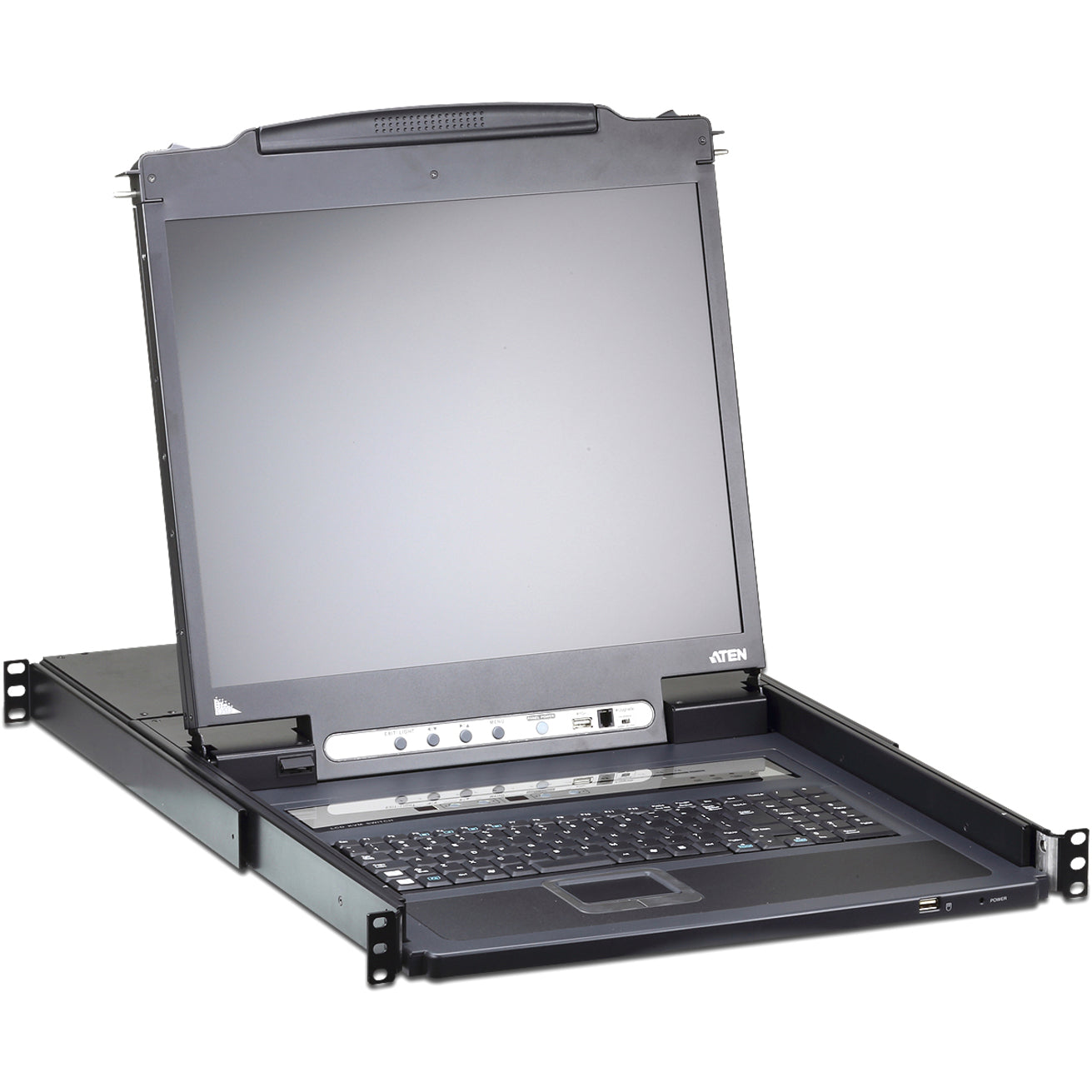

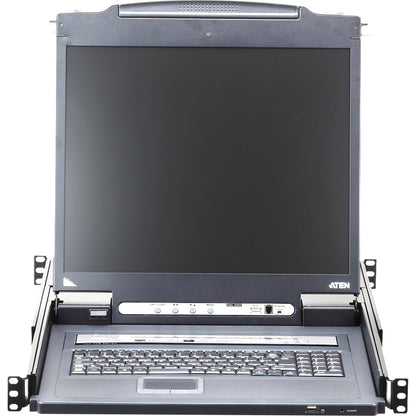

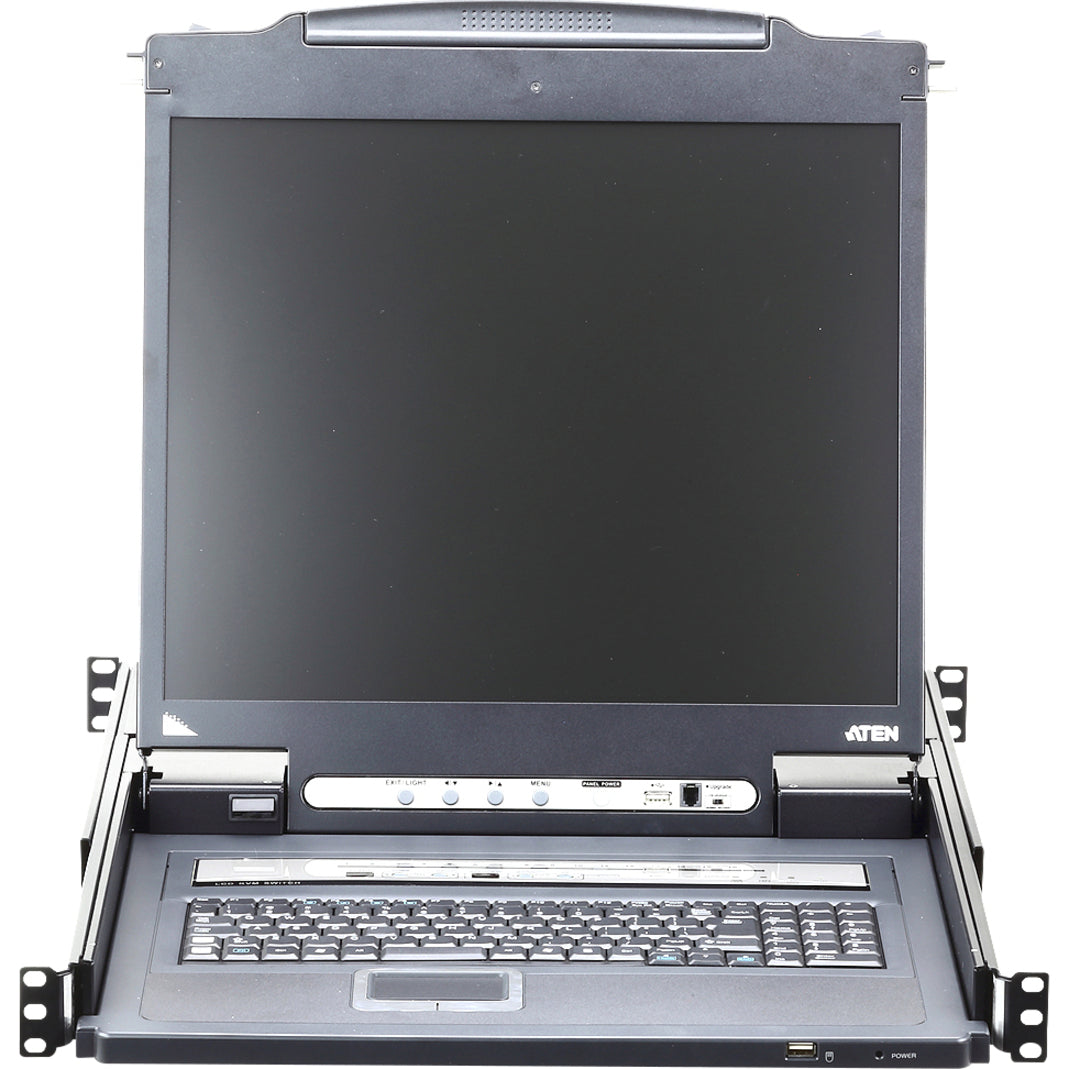

ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant

ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant

SKU: 1042050129      MFR: ATEN Technology Inc

GTIN: 672792007514

Product Description

ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant - 16 Computer(s) - 19" LCD - WUXGA - 1920 x 1200 - 1 x Network (RJ-45) - 1 x USB - 17 - Daisy Chain - Keyboard - TouchPad - 1U High - Mac PC Linux Sun - Metal Plastic

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CL5716IN

Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Daisy chain up to 15 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A ACS1216A CS1708ACS1716A)
  • Extra console port - manage computers from an external console (VGA monitor USB or PS/2 keyboard and mouse)
  • Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • LCD module USB port allows connected computers to access USB peripherals*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  • Hot pluggable - add or remove computers without having to power down the switch

Product Details

Product TypeLCD Rack Console
Display Screen TypeLCD
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports1
Product FamilySlideaway
KVM SwitchYes
KVM TechnologyDigital
Number of Computers Supported16
Number of Proprietary Ports17
Rack Height1U
Brand NameATEN
Input Voltage Range120V AC to 230V AC
Screen Size19"
Platform SupportedMac
Screen Resolution1920 x 1200
Environmentally FriendlyYes
Environmental CertificationRoHS
Proprietary InterfaceYes
Country of OriginChina
Height1.7"
Width27.1"
Depth18.9"
Daisy ChainYes
Screen ModeWUXGA
KeyboardYes
ManufacturerATEN Technology Inc
Product ModelCL5716IN
Product NameCL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit
Pointing Device TypeTouchPad
Product LineSlideaway
Manufacturer Part NumberCL5716IN
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard video and mouse) console. A single CL5716I can control up to 16 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I so that up to 256 computers can all be controlled from a single KVM console.

The CL5716I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5716I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

The CL5716I offers a space-saving streamlined approach to KVM switch technology by integrating a keyboard 17" or 19" LED-backlit LCD monitor and touchpad in a 1U rack-mountable sliding housing. In addition since the CL5716I is built on a modular design the KVM section can be detached from the switch section for convenient maintenance and repair.

Among CL5716I's other outstanding features the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CL5716I supports the highest security protocols such as TLS 1.2 encryption for the browser and RC4 128 bit encryption for secure keyboard mouse and video data transmission. For easier and more efficient user management integration the CL5716I also supports authentication and authorization via 3rd party authorized servers such as RADIUS LDAP LDAPS and MS Active Directory.
Package Contents
  • 1 x CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit
  • 2 x Custom KVM Cables (VGA USB; 1.8 m/6 ft)
  • 1 x Custom Console Cable (VGA USB PS/2; 27 cm/0.88 ft)
  • 1 x Firmware Upgrade Cable
  • 1 x Power Cord
  • 1 x User Instructions
MaterialMetal
Weight (Approximate)30.14 lb
Input Voltage Range120 V AC - 230 V AC
View full details
$2,226.99 USD
$2,226.99
Sale Sold out

In Stock - 6 (Available by Wed, Jun 10 - Mon, Jun 15)


Update


Shipping calculated at checkout.

ATEN CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit-TAA Compliant - 16 Computer(s) - 19" LCD - WUXGA - 1920 x 1200 - 1 x Network (RJ-45) - 1 x USB - 17 - Daisy Chain - Keyboard - TouchPad - 1U High - Mac PC Linux Sun - Metal Plastic

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CL5716IN

Features

  • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
  • Integrated KVM console with 17" or 19" LED-backlit LCD monitor in a Slideaway™ housing
  • Space saving technology - up to two consoles (one bus) control up to 16 computers
  • Daisy chain up to 15 additional units - control up to 256 computers from a single console (With compatible KVM Switches: ACS1208A ACS1216A CS1708ACS1716A)
  • Extra console port - manage computers from an external console (VGA monitor USB or PS/2 keyboard and mouse)
  • Superior video quality - up to 1280 x 1024 @75 Hz; DDC2B for the local console; up to 1920 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
  • LCD module USB port allows connected computers to access USB peripherals*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  • Hot pluggable - add or remove computers without having to power down the switch

Product Details

Product TypeLCD Rack Console
Display Screen TypeLCD
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports1
Product FamilySlideaway
KVM SwitchYes
KVM TechnologyDigital
Number of Computers Supported16
Number of Proprietary Ports17
Rack Height1U
Brand NameATEN
Input Voltage Range120V AC to 230V AC
Screen Size19"
Platform SupportedMac
Screen Resolution1920 x 1200
Environmentally FriendlyYes
Environmental CertificationRoHS
Proprietary InterfaceYes
Country of OriginChina
Height1.7"
Width27.1"
Depth18.9"
Daisy ChainYes
Screen ModeWUXGA
KeyboardYes
ManufacturerATEN Technology Inc
Product ModelCL5716IN
Product NameCL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit
Pointing Device TypeTouchPad
Product LineSlideaway
Manufacturer Part NumberCL5716IN
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The CL5716I Slideaway™ LCD KVM Switch is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard video and mouse) console. A single CL5716I can control up to 16 computers. As many as 15 additional KVM switches can be daisychained to the CL5716I so that up to 256 computers can all be controlled from a single KVM console.

The CL5716I LCD KVM Switch is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CL5716I supports up to 32 concurrent user logins for a single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.

The CL5716I offers a space-saving streamlined approach to KVM switch technology by integrating a keyboard 17" or 19" LED-backlit LCD monitor and touchpad in a 1U rack-mountable sliding housing. In addition since the CL5716I is built on a modular design the KVM section can be detached from the switch section for convenient maintenance and repair.

Among CL5716I's other outstanding features the Panel Array Mode provides the ability to monitor the video output of the servers on the installation; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.

The CL5716I supports the highest security protocols such as TLS 1.2 encryption for the browser and RC4 128 bit encryption for secure keyboard mouse and video data transmission. For easier and more efficient user management integration the CL5716I also supports authentication and authorization via 3rd party authorized servers such as RADIUS LDAP LDAPS and MS Active Directory.
Package Contents
  • 1 x CL5716I LCD KVM Over IP Switch With Standard Rack Mount Kit
  • 2 x Custom KVM Cables (VGA USB; 1.8 m/6 ft)
  • 1 x Custom Console Cable (VGA USB PS/2; 27 cm/0.88 ft)
  • 1 x Firmware Upgrade Cable
  • 1 x Power Cord
  • 1 x User Instructions
MaterialMetal
Weight (Approximate)30.14 lb
Input Voltage Range120 V AC - 230 V AC
