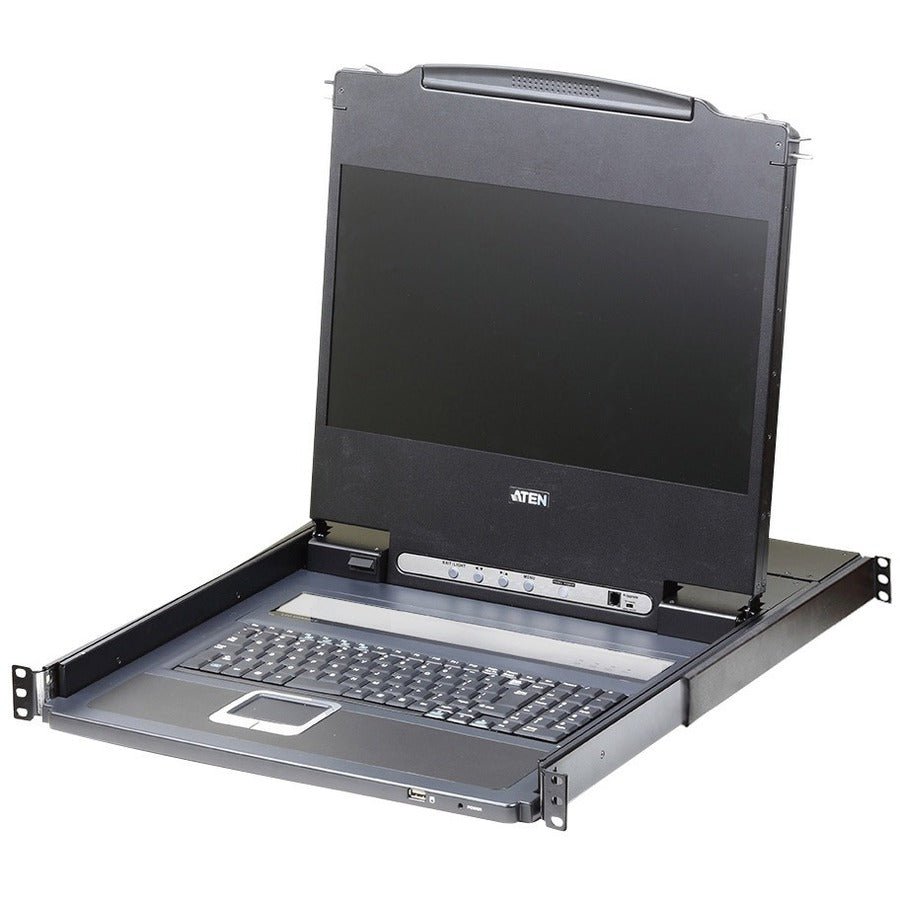

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3'' LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW's console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA DVI or HDMI - for the console and CPU connection. For added convenience the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port and/or an HDMI compatible switch to the KVM port.

The CL6700MW features a port for an external USB mouse on the unit's front panel while ports for the second KVM console (keyboard mouse and DVI HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access an additional console and a built-in space saving sliding module without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

• CL6700MW DVI Full HD LCD Console
• 1 x Custom USB DVI KVM Cable Set
• 1 x Power Cord
• 1 x Firmware Upgrade Cable
• 1 x User Instructions
• Standard Rack Mount Kit
