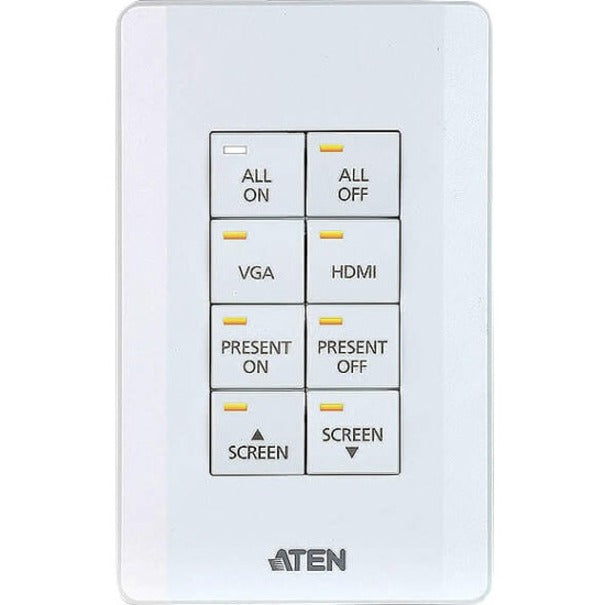

The VK108US is a fully-customizable 8-button keypad designed for use with the ATEN Control System. The keypad provides an interface to control devices in a room from a standard wall mounted faceplate. Created with flexibility in mind the one-gang keypad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the VK2100/VK1100 Control Box over a LAN users will find it's effortless using VK6000 software to configure the desired control of any connected device from the keypad. With the button's ready to go you have instant and smart control of the facilities from a keypad or keypads that can manage any device in the room. The VK108US is an affordable solution perfect to serve as the primary interface in small meeting rooms or as secondary device control in classrooms and conference centers.

• Control System - 8-button Keypad (US 1 Gang)
• 1 x Button Pack
• 1 x Terminal Block
• 1 x Faceplate
• 1 x User Instructions

Ethernet:

• 1 x RJ-45 Female 10/100Base-T
• Supported Protocol: ICMP TCP/IP DHCP HTTPS
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
• IP: 192.168.0.60
• Subnet Mask: 255.255.255.0

• Controller ID 1 x 16-segment Switch
• Keypad ID 1 x 8-segment Switch

Reset Button: 1 x Semi-recessed Pushbutton
Power Consumption:

• DC5V:1.25W:6BTU
• DC48V:1.58W:7BTU

• Operating Temperature: 0 - 50°C
• Storage Temperature: -20 - 60°C
• Humidity: 0 - 80% RH Non-Condensing
