    HDMI HDBASET LITE EXTENDER
1 1

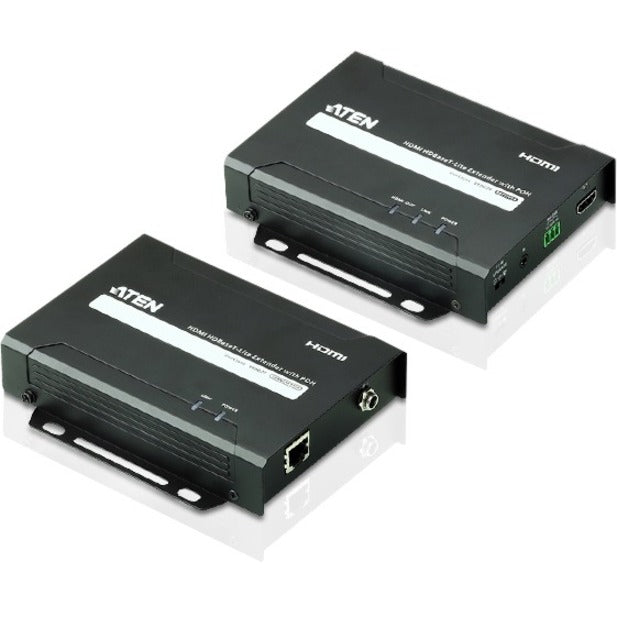

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant

SKU: 1030013818      MFR: ATEN Technology Inc

GTIN: 672792006074

Product Description

ATEN HDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)-TAA Compliant - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE802

Features

  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e/6/6a cable
  • Superior video quality - up to 4K@35m (Cat 5e/6) / 40m (Cat 6a or ATEN 2L-2910 Cat 6 cable)
  • HDBaseT Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e/6/6a cable
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners
  • Bi-directional IR channel - IR transmission is processed one direction at a time
  • Rack- Mountable

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Maximum Operating Distance229.66 ft
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Serial PortYes
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height1.18"
Transmitter Width5.53"
Transmitter Depth4.84"
Receiver Height1.18"
Receiver Width5.53"
Receiver Depth4.84"
Transmitter Weight (Approximate)15.52 oz
Receiver Weight (Approximate)1.01 lb
Country of OriginTaiwan
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelVE802
Product NameHDMI HDBaseT-Lite Extender with POH (4K@40m) (HDBaseT Class B)
Product LineVanCryst
Manufacturer Part NumberVE802
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an additional power supply. The VE802 is HDMI (3D Deep Color4k) and HDCP compatible. The VE802 is perfect for a digital entertainment center or any installation that requires superior video quality.

More from the Manufacturer
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 1 x Power Adapter (VE802T)
  • 1 x IR Transmitter
  • 1 x IR Receiver
  • 2 x Terminal Blocks
  • 1 x User Instructions
Product FamilyVanCryst
View full details
$476.99 USD
$476.99
Sale Sold out

In Stock - 11 (Available by Mon, Dec 09 - Fri, Dec 13)
