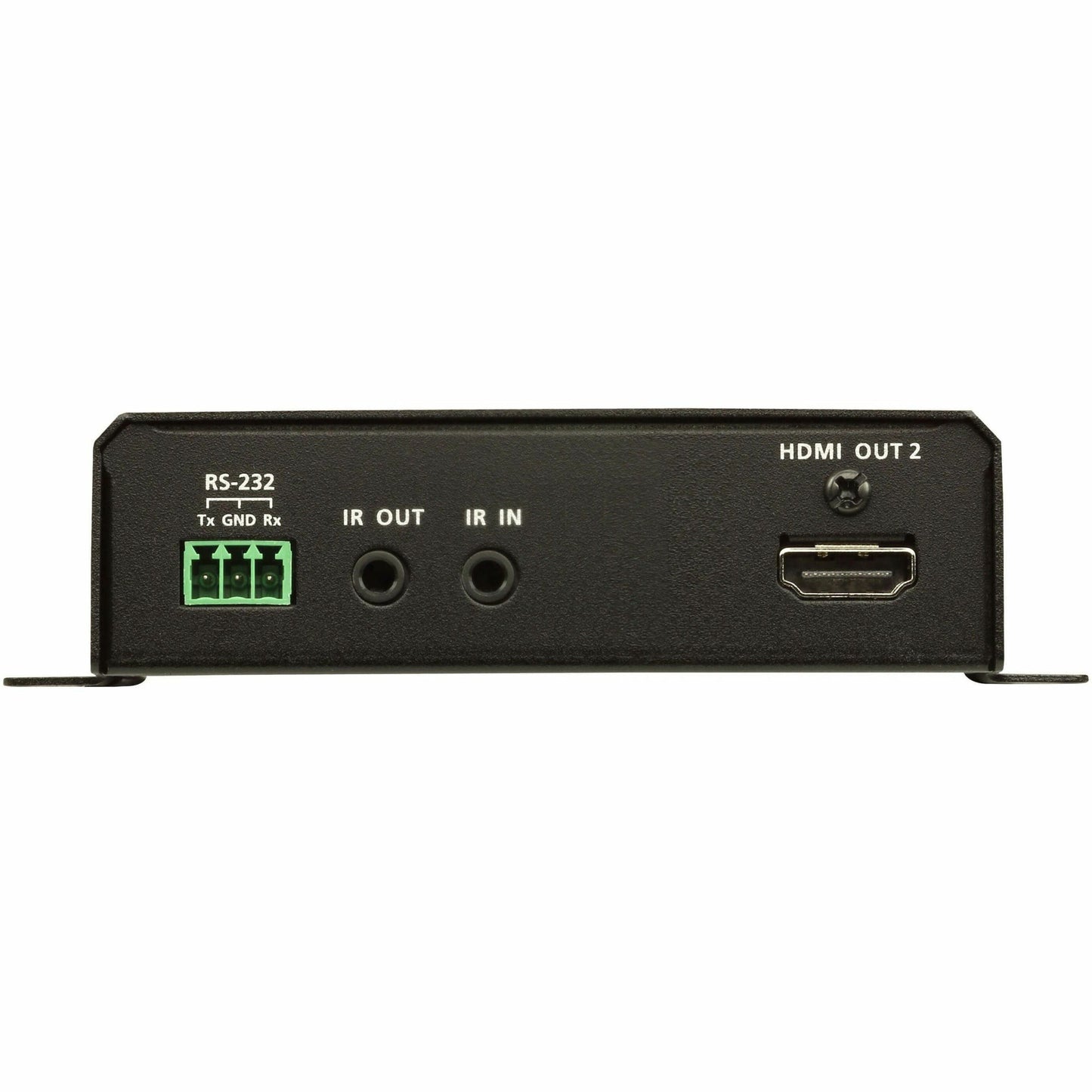

ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)

ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)

SKU: 1076130445      MFR: ATEN Technology Inc

GTIN: 672792014161

Product Description

ATEN HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A) - 1 Output Device - 492.13 ft Range - 1 - 2 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE814AR-ATA

Features

  • Extends HDMI signals to one local and two remote displays up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
  • HDMI (3D Deep Color 4K); HDCP 2.2 compatible
  • Superior video quality:
  • 4K up to 100 m
  • 1080p up to 150 m when in HDBaseT Long Reach Mode
  • Extends Ethernet communication using the Ethernet pass-through port
  • Supports two IR channels for simultaneous IR signal transmissions ranged from 30 KHz to 56 KHz
  • ATEN EDID Technology -- when both transmitter and receiver sides are connected VE814A adopts the EDID values of the display connected to the VE814AT for high-quality output
  • RS-232 channel - allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners
  • Supports wide screen format

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Maximum Operating Distance492.13 ft
Number of Network (RJ-45) Ports1
Number of HDMI Outputs2
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height1.14"
Receiver Width3.98"
Receiver Depth5.35"
Receiver Weight (Approximate)1.04 lb
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelVE814AR-ATA
Product NameHDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
Manufacturer Part NumberVE814ARATA
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

ATEN VE814AR is an HDBaseT Video Receiver that is capable of receiving HDMI signals up to 100 m over a single Cat 5e/6/6a or ATEN2L-2910 Cat 6 cable.This HDCP 2.2-compliant receiver meets the HDMI Specification including 3D Deep Color the maximum data rate of (10.2 Gbps) and 4K video quality up to 100 m.

The VE814AR supports RS-232 and IR signaling pass-through allowing you to control the HDMI source device from the remote unit (VE814AR) while granting access to the HDMI display device from the local unit (VE814AT). In addition it supports Long Reach Mode that extends HDMI signals up to 150 m 1080p via a single Cat 5e/6 cable.

The VE814AR is a powerful solution for where digital signage is required such as bars educational spaces and public transportation stations allowing display of identical contents at different spots.

Package Contents
  • HDMI HDBaseT Receiver with Dual Output (4K@100m) (HDBaseT Class A)
  • 1 x RS-232 Terminal Block
  • 1 x Power Adapter
  • 1 x User Instructions
