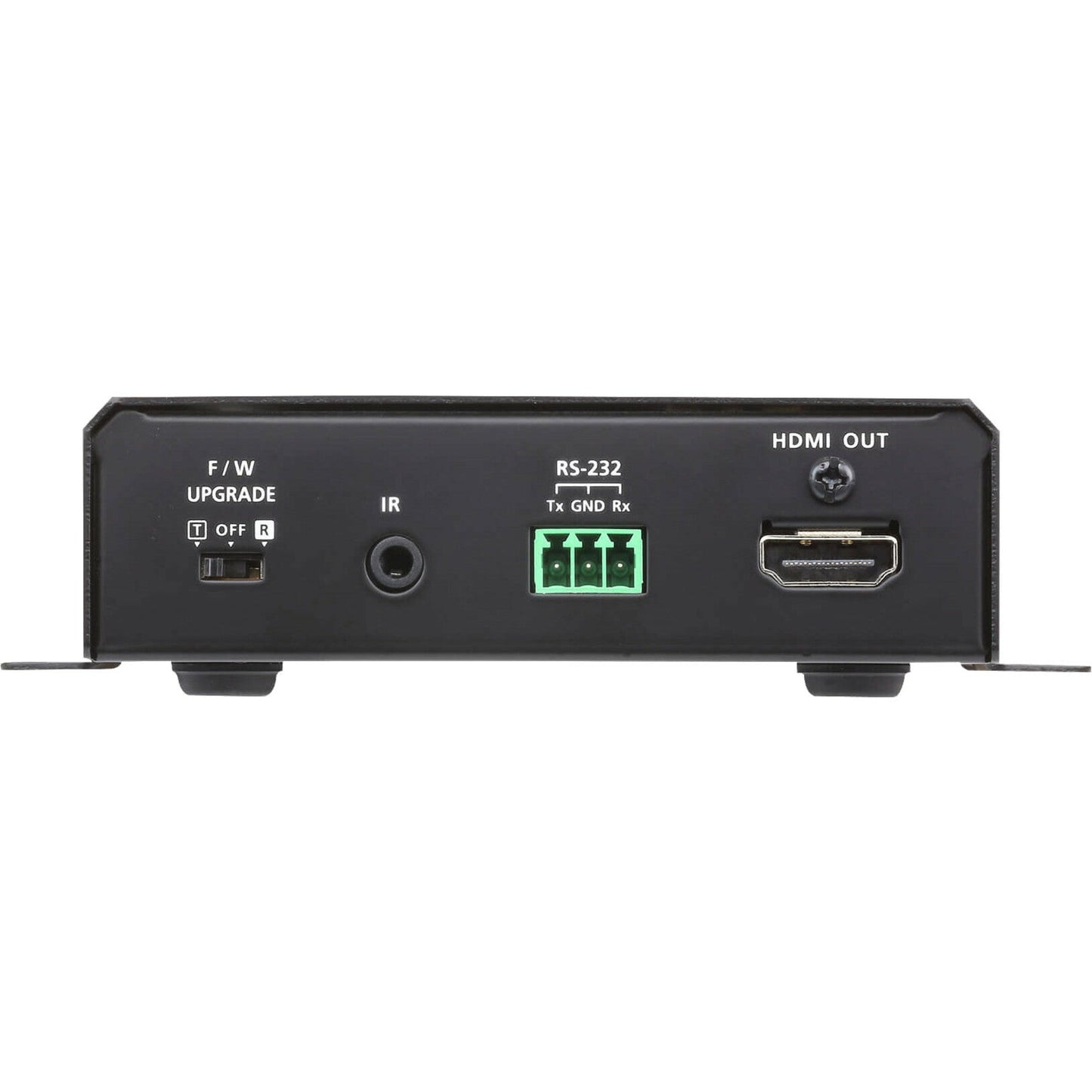

ATEN HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)-TAA Compliant

ATEN HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)-TAA Compliant

SKU: 1045689538      MFR: ATEN Technology Inc

GTIN: 672792007699

Product Description

ATEN HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)-TAA Compliant - 1 Output Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE1812R

Features

  • HDBaseT Connectivity - extends an HDMI connection over a long distance via one Cat 5e / 6 / 6a cable
  • Supports HDBaseT Long Reach Mode - Up to a maximum range of 150 meters @ 1080p
  • 4k x 2k HDMI transmission distance up to 100m over Cat 6a or ATEN 2L-2910 Cat 6 cable
  • HDBaseT Anti-jamming - resists signal interference during high - quality video transmission using HDBaseT technology
  • POH (Power over HDBaseT) - supplies power from Transmitter to Receiver over a long distance via one Cat 5e / 6 / 6a cable
  • Bi-directional RS-232 channel - allows you to connect to serial terminals or serial devices such as touch screens and barcode scanners
  • Bi-directional IR channel - Two way IR protocol delivery by one IR port; IR transmission is processed one direction at a time
  • Rack- Mountable

Product Details

Product TypeVideo Extender Receiver
Graphics Modes4K
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Maximum Operating Distance492.13 ft
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Receiver Height1.18"
Receiver Width4.84"
Receiver Depth5.53"
Receiver Weight (Approximate)15.87 oz
Country of OriginTaiwan
ColorBlack
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelVE1812R
Product NameHDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
Product LineVanCryst
Manufacturer Part NumberVE1812R
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D Deep Color 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable the maximum distance can reach up to 100 meters. With Long Reach Mode enabled the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms video conference rooms gaming or any installation that requires superior video quality.
Package Contents
  • HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
  • 1 x Power Adapter
  • 1 x RS-232 Terminal Block
  • 1 x User Instructions
Limited Warranty2 Year
Product FamilyVanCryst
Serial PortYes
