• HDMI USB EXTENDS HDMI SIGNAL
    HDMI USB EXTENDS HDMI SIGNAL
1 1

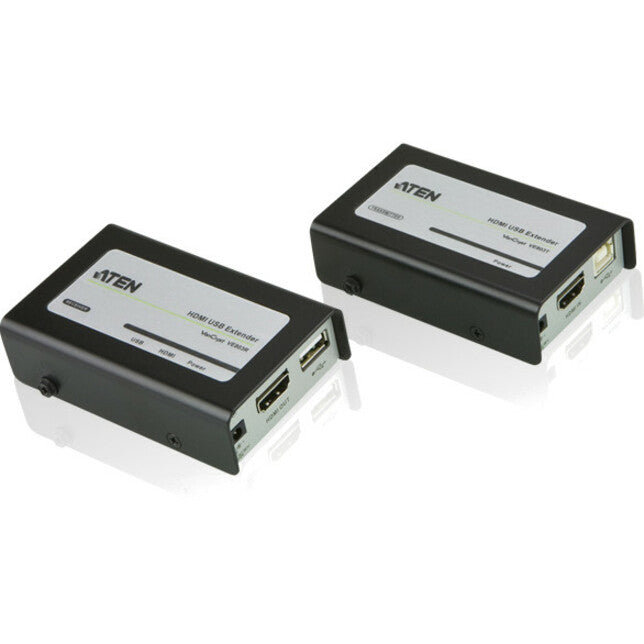

ATEN HDMI USB Extender

ATEN HDMI USB Extender

SKU: 1025891213      MFR: ATEN Technology Inc

GTIN: 672792004285

Product Description

ATEN HDMI USB Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE803

Features

  • Uses two Cat 5e cables to connect the local and the remote units
  • Extends 1080p by 40m; extend 1080i by 60m
  • Superior video quality - HDTV resolutions of 480p 720p 1080i 1080p (1920 x 1080) VGA SVGA XGA SXGA UXGA and WUXGA (1920 x 1200)
  • Supports USB touch panel
  • 8 segment equalization adjustment switch optimizes display quality
  • Support Dolby True HD and DTS HD Master Audio
  • Built-in 8KV/15KV ESD protection
  • Transparent USB Support - supports all USB 2.0 full speed device (up to 12 Mbps)
  • Supports wide screen formats
  • HDMI (3D Deep Color); HDCP compatible - signaling rates up to 2.25Gbits

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics ModesWUXGA
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution1920 x 1200
Twisted Pair Cable StandardCategory 5e
Maximum Operating Distance131.23 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height0.91"
Transmitter Width1.24"
Transmitter Weight (Approximate)5.64 oz
Country of OriginChina
Connectivity TechnologyWired
Brand NameATEN
Length2.8"
ManufacturerATEN Technology Inc
Product NameHDMI USB Extender
Input Voltage5 V DC
Manufacturer Part NumberVE803
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationThe VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control allowing you to control the local HDMI source device from the remote display or control the remote display through the local unit.

The VE803 is ideal for transportation centers medical facilities shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant providing an easy and ideal HDMI extender solution for any application.

More from the Manufacturer
Package Contents
  • 1 x VE803T HDMI USB Extender
  • 1 x VE803R HDMI USB Extender
  • 1 x Power Adapter
  • 1 x USB Cable (1.8 m)
  • 1 x Mounting Kit
  • 1 x User Instructions
MaterialMetal
View full details
$168.99 USD
$168.99
Sale Sold out

In Stock - 21 (Available by Mon, Dec 09 - Fri, Dec 13)


Update


Shipping calculated at checkout.

ATEN HDMI USB Extender - 1 Input Device - 1 Output Device - 131.23 ft Range - 2 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - WUXGA - 1920 x 1200

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE803

Features

  • Uses two Cat 5e cables to connect the local and the remote units
  • Extends 1080p by 40m; extend 1080i by 60m
  • Superior video quality - HDTV resolutions of 480p 720p 1080i 1080p (1920 x 1080) VGA SVGA XGA SXGA UXGA and WUXGA (1920 x 1200)
  • Supports USB touch panel
  • 8 segment equalization adjustment switch optimizes display quality
  • Support Dolby True HD and DTS HD Master Audio
  • Built-in 8KV/15KV ESD protection
  • Transparent USB Support - supports all USB 2.0 full speed device (up to 12 Mbps)
  • Supports wide screen formats
  • HDMI (3D Deep Color); HDCP compatible - signaling rates up to 2.25Gbits

Product Details

Product TypeVideo Extender Transmitter/Receiver
Graphics ModesWUXGA
Environmentally FriendlyYes
Environmental CertificationRoHS
Maximum Video Resolution1920 x 1200
Twisted Pair Cable StandardCategory 5e
Maximum Operating Distance131.23 ft
USBYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
HDMI InYes
HDMI OutYes
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Number of Input Devices Supported1
Transmitter Height0.91"
Transmitter Width1.24"
Transmitter Weight (Approximate)5.64 oz
Country of OriginChina
Connectivity TechnologyWired
Brand NameATEN
Length2.8"
ManufacturerATEN Technology Inc
Product NameHDMI USB Extender
Input Voltage5 V DC
Manufacturer Part NumberVE803
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationThe VE803 HDMI USB Extender extends an HDMI signal up to 60 meters from the HDMI source using two Cat 5e cables. It is capable of sending 1080i signals up to 60 meters and 1080p signals up to 40 meters. The VE803 is equipped with USB connectors which allow you to extend any USB device between the units. The USB feature also provides support for touch panel control allowing you to control the local HDMI source device from the remote display or control the remote display through the local unit.

The VE803 is ideal for transportation centers medical facilities shopping malls or anywhere touch panel control or a kiosk is required. For flexibility and convenience the VE803 local unit can be powered via the USB cable when connected to an appropriate source device. The VE803 is HDCP compliant providing an easy and ideal HDMI extender solution for any application.

More from the Manufacturer
Package Contents
  • 1 x VE803T HDMI USB Extender
  • 1 x VE803R HDMI USB Extender
  • 1 x Power Adapter
  • 1 x USB Cable (1.8 m)
  • 1 x Mounting Kit
  • 1 x User Instructions
MaterialMetal
