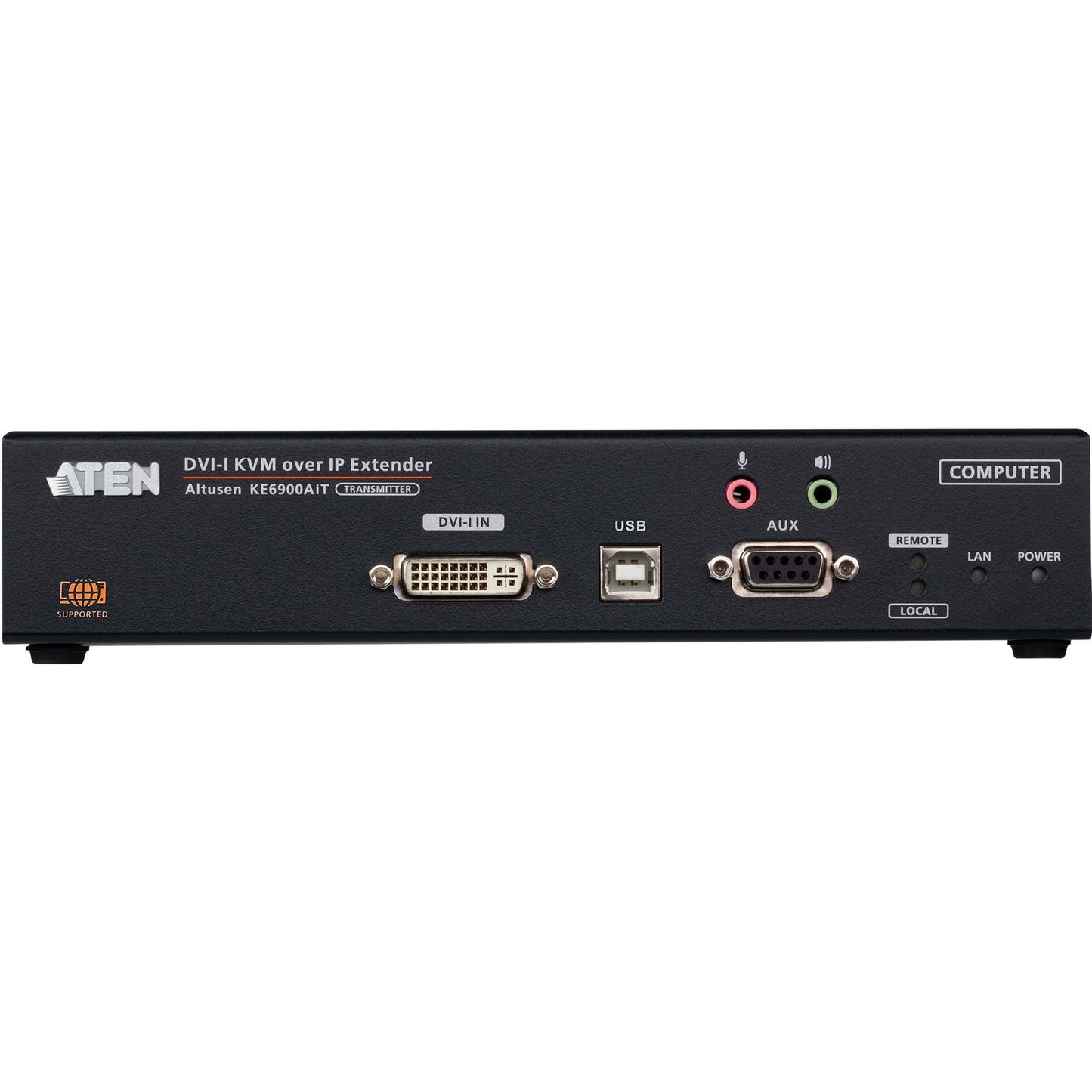

The KE6900AiT are high performance IP-based transmitters that when used with receivers (e.g. KE6900AR) provide console access from a separate location. The setup allows extended access of computer systems remotely via USB consoles (USB keyboard USB mouse DVI monitor) over intranet and internet enabling users to place the computer system in secure and temperature controlled environments which maybe isolated from users' workstation.

KE6900AiT support the new Control Center Video Session Recorder (CCVSR) software. The CCVSR records all operations made on servers accessed through KVM over IP switches. Every operation and change - boot-ups at BIOS level to system level logging in and logging out running software applications to configuring the operating system - are recorded and saved to a secure video file for security reference and troubleshooting purposes etc..

The KE6900AiT DVI-I Single Display KVM over IP Extender supports one DVI display at each end and provide lossless and low latency video transmissions up to 1920 x 1200 @ 60Hz.

The transmitters support connections via an RJ-45 port or a SFP slot. The transmitter can be connected to a receiver either directly to each other or via a high-speed network over a copper-based or fiber-based LAN. Connecting via the SFP slot with 1Gbps SFP fiber module* expansions on fiber optic network you can extend transmission distances up to 10km. The KE6900AiT also features dual power supplies for redundancy to ensure dependable services.

As an IP-based matrix extender the KE6900AiT can be used as a point-to-point / point-to-multipoint / multipoint-to-point extender or integrated into a KVM over IP Matrix System (multipoint-to-multipoint) when combined with the KE Matrix Management Software (CCKM) providing more flexible applications in different working environments.

Implementing the KE Matrix Management Software (CCKM) with KE6900AiT IT administrators can benefit from advanced features such as auto detection of all KE6900AiT devices on the same subnet for the sake of fast installation or configuration username/password authentication and authorization and the ability to define different types of connections that can be switched and shared. Security features also provide extra protection supporting AES-128bits encryption for secured data transmissions while RADIUS LDAP AD or remote user authentication provides an added layer of connection security. Moreover with RS-232 support and Auto MDIX the KE6900AiT is the most cost-effective and convenient way to get a full digital extension from anywhere on the intranet.
