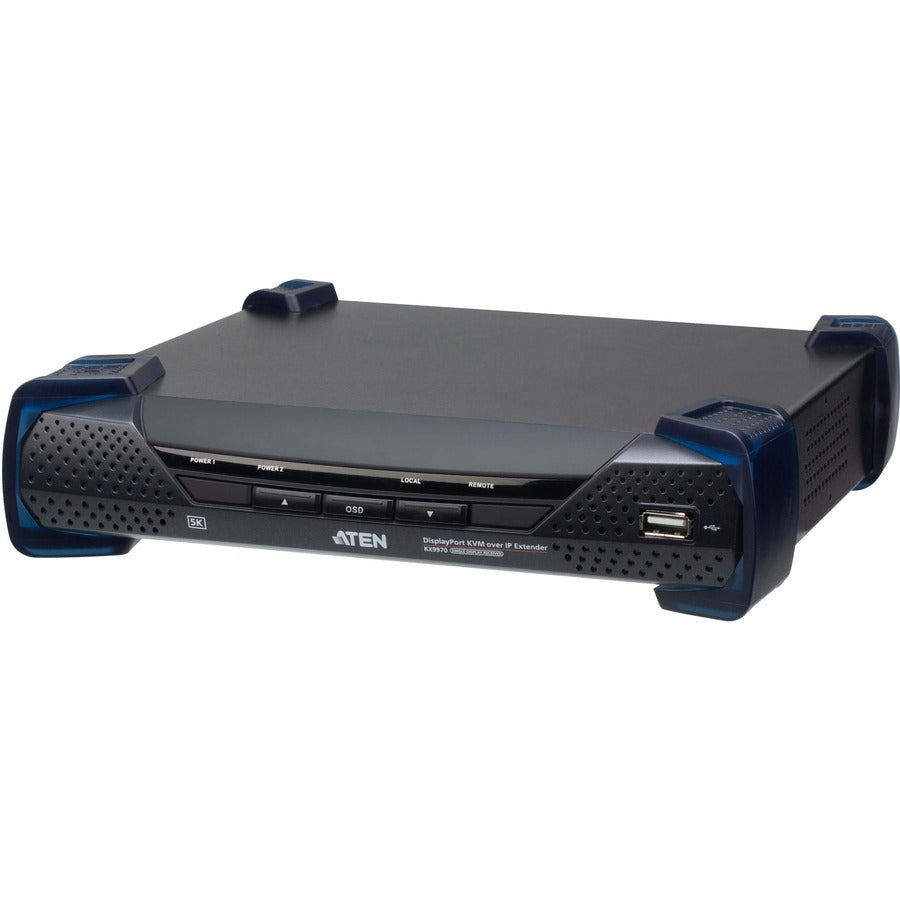

ATEN KX9970R 5K DisplayPort KVM over IP Receiver

ATEN KX9970R 5K DisplayPort KVM over IP Receiver

SKU: 1075548572      MFR: ATEN Technology Inc

GTIN: 672792012990

Product Description

ATEN KX9970R 5K DisplayPort KVM over IP Receiver - 1 Computer(s) - 1 Local User(s) - 32808.40 ft Range - 5K - 5120 x 2880 Maximum Video Resolution - 1 x Network (RJ-45) - 4 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - For PC

Manufacturer : ATEN Technology Inc

Manufacturer Part No : KX9970R

Features

  • Native DP signal processing with color depth up to 12 bits and support for HDR 10
  • Lossless video compression up to 5K with zero latency
  • Superior video quality - up to 5120 x 1440 @ 60 Hz (4:4:4) 5120 x 2880 @ 30 Hz (4:4:4) 4096 x 2160 @ 60 Hz (4:4:4) 1920 x 1080 @ 240 Hz (4:4:4) 2560 x 1440 @ 144 Hz (4:4:4)
  • USB isochronous transfer enables USB camera and USB speaker usage between transmitter and receiver

Product Details

Product TypeKVM Extender Receiver
Maximum Video Resolution5120 x 2880
Graphic Mode5K
Maximum Operating Distance32808.40 ft
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of USB Ports4
DisplayPortYes
Number of Computers Supported1
Number of Local Users Supported1
Receiver Height2.09"
Receiver Width8.82"
Receiver Weight (Approximate)3.04 lb
Receiver Length8.90"
Device TypeKVM Extender
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelKX9970R
Product NameKX9970R 5K DisplayPort KVM over IP Receiver
Power Consumption20.48 W
Input Voltage12 V DC
Manufacturer Part NumberKX9970R
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

As workplaces face restructuring and decentralization is inevitably enforced control room operations are being challenged to pivot effectively throughout these safety protocols in the new normal. Despite manpower shortages managing escalations with secure precise and timely data from real-time monitoring and dynamic collaboration has become measurably more mission-critical than ever.

The KX9970T is a high-performance KVM over IP transmitter that allows connection to a DisplayPort computer and enables secure remote and uninterrupted access to the computer from a 5K DisplayPort KVM console connected to a KX9970R receiver over an Intranet or a dedicated LAN. With the receiver console installed at a separate location from the transmitter within a standard IP network mission-critical control room operations become more ergonomic user-centered and task-oriented while remaining separate from any adverse environmental interference.

The KX9970 expands on previous models with support for up to 10 Gbps optic fiber network connection transcendent 5K audiovisual performance speedy peripheral data sharing and many other new features. This future-proof KVM over IP Matrix System solution incorporating flexible extender connections visual collaboration and system control aims to streamline control room workflows to jump start operators' productivity with KVM over IP agility.

Packaged Quantity1
Platform SupportedPC
Package Contents
  • KX9970R 5K DisplayPort KVM over IP Receiver
  • 1 x Power Adapter
  • 1 x Foot Pad Set (4 pcs)
  • 1 x User Instructions
Limited Warranty3 Year
