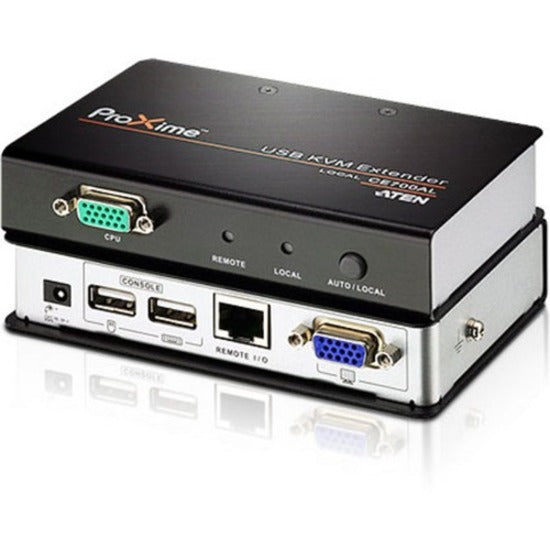

ATEN Proxime CE700A KVM Console/Extender

ATEN Proxime CE700A KVM Console/Extender

SKU: 1015804114      MFR: ATEN Technology Inc

GTIN: 672792002120

Product Description

ATEN Proxime CE700A KVM Console/Extender - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 492.13 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 2 x Network (RJ-45) - 4 x USB - 2 x VGA - Proprietary Interface - 5.3 V DC Input Voltage - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CE700A

Features

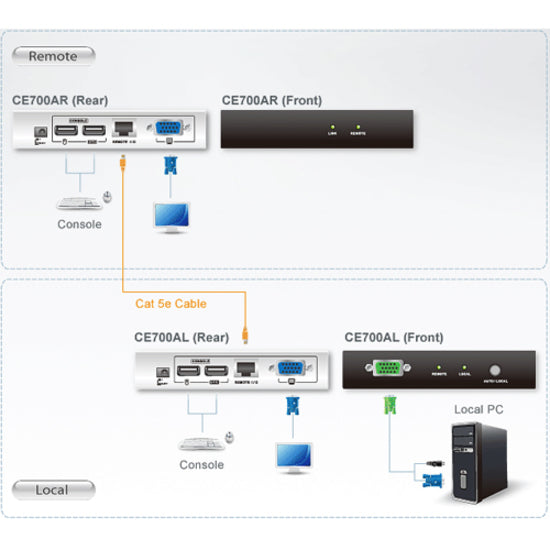

  • Cat 5e cable connects the Local and Remote Units - up to 150m apart
  • Dual console operation - control your system from both the local and remote USB keyboard monitor and mouse consoles
  • Built-in ASIC for greater reliability and compatibility
  • Auto Signal Compensation (ASC)
  • USB Keyboard and USB Mouse Ports
  • USB overcurrent detection and prevention
  • Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes.
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection
  • Automatic gain control - adjusts signal strength to compensate for distance
  • High resolution video - up to 1920 x 1200@60Hz (30m ); 1600 x 1200@60Hz (100m); 1280 x 1024@60Hz (150m)

Product Details

Product TypeKVM Console/Extender
Environmentally FriendlyYes
Environmental CertificationWEEE
Maximum Video Resolution1920 x 1200
Graphic ModeWUXGA
Maximum Operating Distance492.13 ft
USBYes
VGAYes
Number of Network (RJ-45) Ports2
Network (RJ-45)Yes
Number of USB Ports4
Proprietary InterfaceYes
Number of VGA Ports2
KVM TechnologyAnalog
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1
Transmitter Weight (Approximate)11.29 oz
Receiver Weight (Approximate)10.93 oz
Country of OriginChina
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
ManufacturerATEN Technology Inc
Product ModelCE700A
Product NameProxime CE700A KVM Console/Extender
Product LineProXime
Input Voltage5.3 V DC
Manufacturer Part NumberCE700A
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

The Proxime CE700A KVM Console/Extender is a USB KVM Extender with superior video quality and built-in ESD and surge protection that allows access to a computer system up to 150 meters away from a remote USB console (USB keyboard monitor and USB mouse. The Proxime CE700A KVM Console/Extender improves on previous designs by incorporating 8KV/15KV ESD protection and 2KV surge protection and providing superior video quality up to 1920 x 1200 resolution.

More from the Manufacturer
Packaged Quantity1
Package Contents
  • Proxime CE700A KVM Console/Extender
  • 2 x Power Adapters
  • 1 x USB KVM Cable
  • 2 x Grounding Wires
  • 1 x Rack Mount Kit
  • 1 x User Manual
  • 1 x Quick Start Guide
Limited Warranty2 Year
Product FamilyProXime
View full details
$276.99 USD
$276.99
Sale Sold out

In Stock - 49 (Available by Sun, Dec 08 - Thu, Dec 12)
