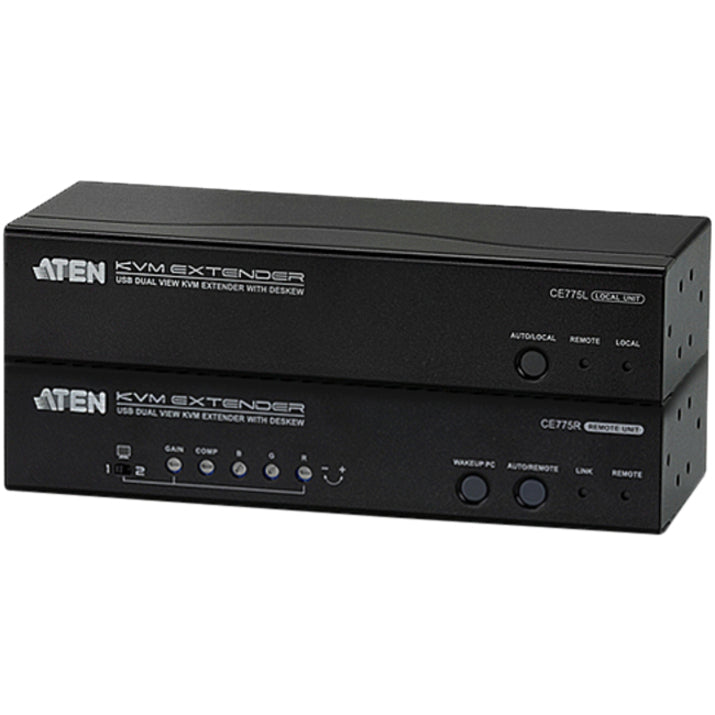

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant

SKU: 1024365697      MFR: ATEN Technology Inc

GTIN: 672792003721

Product Description

ATEN USB Dual View KVM Extender with Deskew-TAA Compliant - 1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 984.25 ft Range - WUXGA - 1920 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 4 x USB - 5 x VGA - Proprietary Interface

Manufacturer : ATEN Technology Inc

Manufacturer Part No : CE775

Features

  • Dual View Support - connect two screens to transmit two video output signals to a remote site up to 300 m away using inexpensive Cat 5e/6 cables
  • Dual Console operation - control your system from both the local and remote USB keyboard monitor and mouse consoles
  • Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
  • PC Wakeup support - from the remote console simply use a pushbutton to wake a computer at the local site via RS-232
  • Superior video quality - 1920x1200@60Hz(150 m) 1280x1024@60Hz(300 m)
  • Gain/Compensation Control - adjusts signal strength in order to compensate for distance
  • On Screen Display - conveniently adjust video quality with the intuitive OSD menu system
  • RS-232 Channel - allow you to connect to a serial terminal or serial devices such as touchscreens and barcode scanners
  • Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV)
  • Sun/Mac keyboard support and emulation

Product Details

Product TypeKVM Console/Extender
Maximum Video Resolution1920 x 1200
Maximum Operating Distance984.25 ft
USBYes
VGAYes
Network (RJ-45)Yes
Proprietary InterfaceYes
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1
Connectivity TechnologyWired
Brand NameATEN
Environmentally FriendlyYes
Environmental CertificationRoHS
Graphic ModeWUXGA
HeadphoneYes
Number of Network (RJ-45) Ports4
Number of USB Ports4
Number of VGA Ports5
Transmitter Height2.98"
Transmitter Width41.65"
Transmitter Depth7.87"
Receiver Height2.98"
Receiver Width41.65"
Receiver Depth7.87"
Transmitter Weight (Approximate)1.52 lb
Receiver Weight (Approximate)1.52 lb
ManufacturerATEN Technology Inc
MicrophoneYes
Product NameUSB Dual View KVM Extender with Deskew
Input Voltage5.3 V DC
Manufacturer Part NumberCE775
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing Information

ATEN CE775 Dual View KVM Extenders with Deskew function allows access to a computer system from a remote Dual View console up to 300 m away. The dual view function provides support for two displays allowing the video output to seamlessly display on two monitors. Its advanced PC Wake - Up feature that allows you simply uses a pushbutton from the remote dual view console to wake a PC at the local site via RS-232 no need to go to the local site to wake up the PC. It eliminates the need for traveling back and forth between the local computer and remote console effi cient and flexible.

More from the Manufacturer
Package Contents
  • 1 x CE775L USB KVM Extender (Local Unit)
  • 1 x CE775R USB KVM Extender (Remote Unit)
  • 1 x VGA Cable
  • 1 x USB KVM Cable Set
  • 2 x Power Adapters
  • 1 x Mounting Kit
  • 1 x User Instructions
