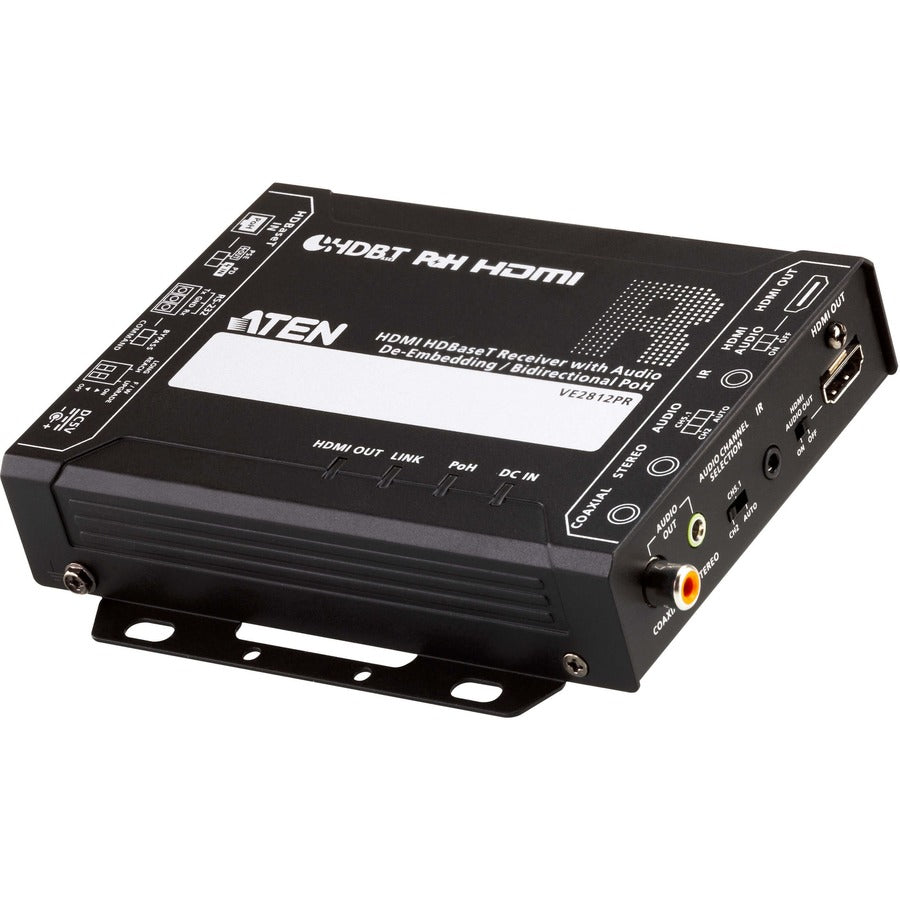

• ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
    ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
1 1

ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH

ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH

SKU: 1075811979      MFR: ATEN Technology Inc

GTIN: 672792013003

Product Description

ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH - 1 Output Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 2160p - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE2812PR

Features

  • Transmits 4K HDMI up to 100 m / 330 ft via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable
  • Transmits HDMI up to 150 m / 492 ft. @ 1080p in HDBaseT Long Reach Mode
  • Bi-directional PoH : allows a PoH PD-enabled Tx to be remotely powered by the locally powered VE2812PR; enables power distribution from a PoH PSE-enabled Tx to the VE2812PR over the cable
  • Audio de-embedding - extracts audio stream from the HDMI source and delivers as a separate audio from HDMI to Coaxial S/PDIF or Stereo audio output
  • Supports Audio EDID Switching (2ch Stereo 5.1ch Surround sound and AUTO)
  • RS-232 serial communication switch - switch between command mode and bypass mode for various application requirements
  • Supports bi-directional IR signal transmission (IR transmission is processed one direction at a time)
  • HDMI (3D Deep Color 4K); HDCP 2.2 compliant
  • Firmware upgradable
  • Built- in 8KV / 15 KV ESD protection

Product Details

Product TypeVideo Extender Receiver
Maximum Operating Distance492.13 ft
Number of Network (RJ-45) Ports1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Receiver Height1.18"
Receiver Width4.84"
Receiver Depth5.72"
Receiver Weight (Approximate)1.10 lb
Product ColorGray
Supported Video Modes2160p
ManufacturerATEN Technology Inc
Product NameVE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
Manufacturer Part NumberVE2812PR
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationFeaturing powerful Class A HDBaseT technology the VE2812PR is a receiver for 4K HDMI video audio and control signals over a distance of up to 100 m via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable. HDMI signal transmission extends further up to 150 m @ 1080p when the HDBaseT Long Reach Mode is enabled.

Designed to optimize flexibility the VE2812PR ships with 2-way PoH capability either allowing a PoH PD-enabled Tx (VE2812AT series is recommended) to be remotely powered by the locally powered VE2812PR or enabling power distribution along the cable from a PoH PSE-enabled Tx (VE1812T is recommended) to the VE2812PR. Speaking of VE2812PR's audio de-embedding audio signal can be extracted from the incoming HDMI source and then transmitted through Coaxial or Stereo output to external audio distribution systems. The VE2812PR gives users the extra convenience when it comes to extending control and communication signals via the built-in RS-232 and bi-directional IR ports. Plus it is HDCP 2.2 compliant and supports HDMI specification features such as 4K2K 3D Deep Color and CEC for reliable transmission of high-quality uncompressed HDMI content.

With all highlights packed in a compact enclosure the VE2812PR assures easy and discreet installation keeping the presentation space tidy. It is ideal for small / mid-sized areas where 4K HDMI and control signal transmission over a long distance is required such as boardrooms lecture halls and digital signage applications.
Package Contents
  • 1 x VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
  • 1 x RS-232 Terminal Block
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Power Adapter
  • 1 x User Instructions
Limited Warranty3 Year
View full details
$438.99 USD
$438.99
Sale Sold out

Dropship

Get it by Thu, Dec 12 - Tue, Dec 17


Update


Shipping calculated at checkout.

ATEN VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH - 1 Output Device - 492.13 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - 2160p - 4K - 4096 x 2160 - Twisted Pair - Category 6a - Rack-mountable

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VE2812PR

Features

  • Transmits 4K HDMI up to 100 m / 330 ft via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable
  • Transmits HDMI up to 150 m / 492 ft. @ 1080p in HDBaseT Long Reach Mode
  • Bi-directional PoH : allows a PoH PD-enabled Tx to be remotely powered by the locally powered VE2812PR; enables power distribution from a PoH PSE-enabled Tx to the VE2812PR over the cable
  • Audio de-embedding - extracts audio stream from the HDMI source and delivers as a separate audio from HDMI to Coaxial S/PDIF or Stereo audio output
  • Supports Audio EDID Switching (2ch Stereo 5.1ch Surround sound and AUTO)
  • RS-232 serial communication switch - switch between command mode and bypass mode for various application requirements
  • Supports bi-directional IR signal transmission (IR transmission is processed one direction at a time)
  • HDMI (3D Deep Color 4K); HDCP 2.2 compliant
  • Firmware upgradable
  • Built- in 8KV / 15 KV ESD protection

Product Details

Product TypeVideo Extender Receiver
Maximum Operating Distance492.13 ft
Number of Network (RJ-45) Ports1
Media Type SupportedTwisted Pair
Number of Output Devices Supported1
Connectivity TechnologyWired
Brand NameATEN
Form FactorRack-mountable
Graphics Modes4K
Maximum Video Resolution4096 x 2160
Twisted Pair Cable StandardCategory 6a
Network (RJ-45)Yes
Number of HDMI Outputs1
HDMI OutYes
Receiver Height1.18"
Receiver Width4.84"
Receiver Depth5.72"
Receiver Weight (Approximate)1.10 lb
Product ColorGray
Supported Video Modes2160p
ManufacturerATEN Technology Inc
Product NameVE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
Manufacturer Part NumberVE2812PR
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationFeaturing powerful Class A HDBaseT technology the VE2812PR is a receiver for 4K HDMI video audio and control signals over a distance of up to 100 m via a Cat 5e / 6 / 6a or ATEN 2L-2910 Cat 6 cable. HDMI signal transmission extends further up to 150 m @ 1080p when the HDBaseT Long Reach Mode is enabled.

Designed to optimize flexibility the VE2812PR ships with 2-way PoH capability either allowing a PoH PD-enabled Tx (VE2812AT series is recommended) to be remotely powered by the locally powered VE2812PR or enabling power distribution along the cable from a PoH PSE-enabled Tx (VE1812T is recommended) to the VE2812PR. Speaking of VE2812PR's audio de-embedding audio signal can be extracted from the incoming HDMI source and then transmitted through Coaxial or Stereo output to external audio distribution systems. The VE2812PR gives users the extra convenience when it comes to extending control and communication signals via the built-in RS-232 and bi-directional IR ports. Plus it is HDCP 2.2 compliant and supports HDMI specification features such as 4K2K 3D Deep Color and CEC for reliable transmission of high-quality uncompressed HDMI content.

With all highlights packed in a compact enclosure the VE2812PR assures easy and discreet installation keeping the presentation space tidy. It is ideal for small / mid-sized areas where 4K HDMI and control signal transmission over a long distance is required such as boardrooms lecture halls and digital signage applications.
Package Contents
  • 1 x VE2812PR HDMI HDBaseT Receiver with Audio De-Embedding / Bi-directional PoH
  • 1 x RS-232 Terminal Block
  • 1 x Foot Pad Set (4 pcs)
  • 1 x Power Adapter
  • 1 x User Instructions
Limited Warranty3 Year
