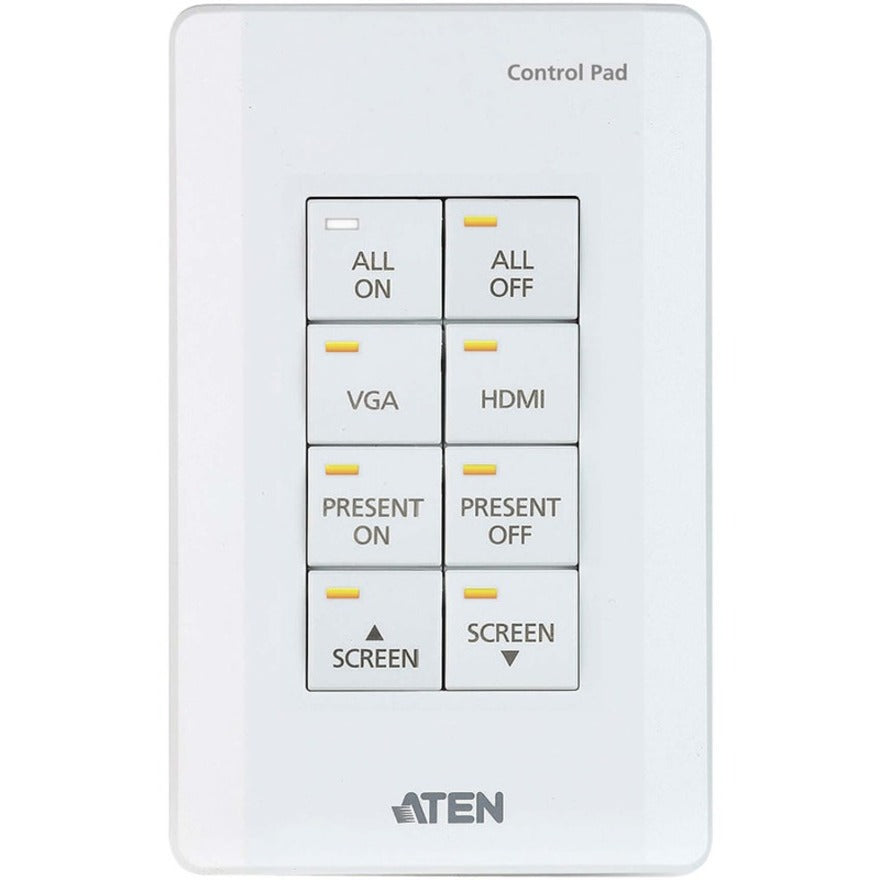

ATEN VK0100 8-button Control Pad (US 1 Gang)

ATEN VK0100 8-button Control Pad (US 1 Gang)

SKU: 1059297942      MFR: ATEN Technology Inc

GTIN: 672792010231

Product Description

ATEN VK0100 8-button Control Pad (US 1 Gang) - Wired

Manufacturer : ATEN Technology Inc

Manufacturer Part No : VK0100

Product Details

Product TypeA/V Control Panel
Country of OriginTaiwan
Height1.9"
Width1.6"
Connectivity TechnologyWired
Brand NameATEN
Form FactorWall Mountable
ManufacturerATEN Technology Inc
Product ModelVK0100
Product NameVK0100 8-button Control Pad (US 1 Gang)
Manufacturer Part NumberVK0100
Manufacturer Website Addresshttp://www.aten.com/us/en/
Marketing InformationThe VK0100 is a fully-customizable 8-button Control Pad that integrates a controller with a keypad as an all-inone solution. Aimed for small/medium meeting room or classroom control the VK0100 offers a ready-to-use solution that easily connects the devices configures via the intuitive VK6000 Configurator Software and flexibly customizes keypad button functions and layout to fulfill most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0100 Control Pad not only plays the role as the main controller that connects the hardware devices but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind the one-gang Control Pad can be laid out in 14 different combinations of 4 to 8 buttons that snap together as easy as Lego's. By connecting to the local network users will find it's effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad you have instant and smart control of the facilities from a Control Pad that can manage any device in the room.
MaterialPlastic
Additional InformationKeypad Layout
  • 4~8 buttons customizable in 14 keypad layouts
Serial
  • 2 x Bi-directional RS-232 Port
  • (2 x 3-Pole Terminal Block Connector);
  • Baud Rate: 300 to 115200 (default: 9600);
  • Data Bit: 8 (default) or 7;
  • Stop Bit: 1 (default) or 2;
  • Parity: None (default) even or odd
Relay
  • 2 x Relay Channel (2 x 2-Pole Terminal Block Connector);
  • Normally open isolated Relays;
  • Contact Rating: Max 24 VDC 1A
I/O
  • 1 x Digital Input Channel
  • (1 x 2-Pole Terminal Block Connector);
  • - VDC Mode
  • Input Voltage Range: 0 to 5 VDC;
  • Programmable Range: 1 to 5 VDC;
  • - Dry Contact Mode
  • Pull-up 2k ohms to + 5 VDC
Ethernet
  • 1 x RJ-45 Female 10/100Base-T
  • Supported Protocol: ARP ICMP TCP/IP DHCP HTTPS SSH
  • DHCP-enabled. The following default IP settings will be used if no IP is assigned within
  • 30 seconds:
  • IP: 192.168.0.60
  • Subnet Mask: 255.255.255.0
Weight (Approximate)4.94 oz
View full details
$539.99 USD
$539.99
Sale Sold out

In Stock - 3 (Available by Fri, Oct 23 - Wed, Oct 28)
