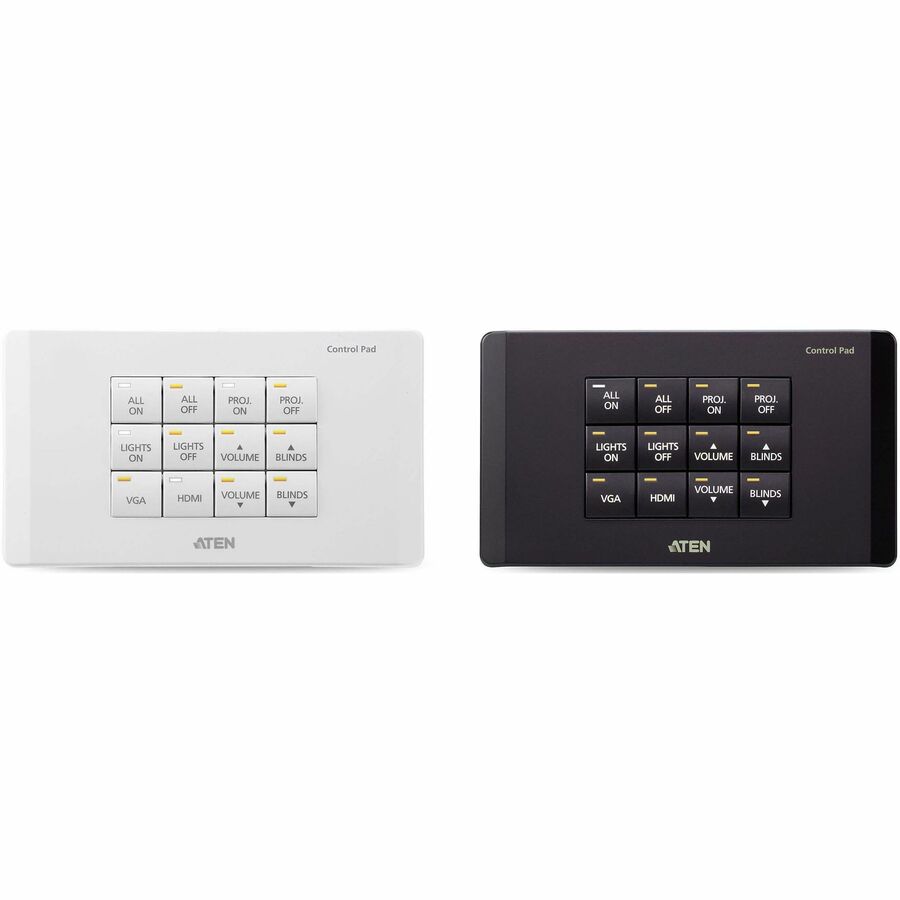

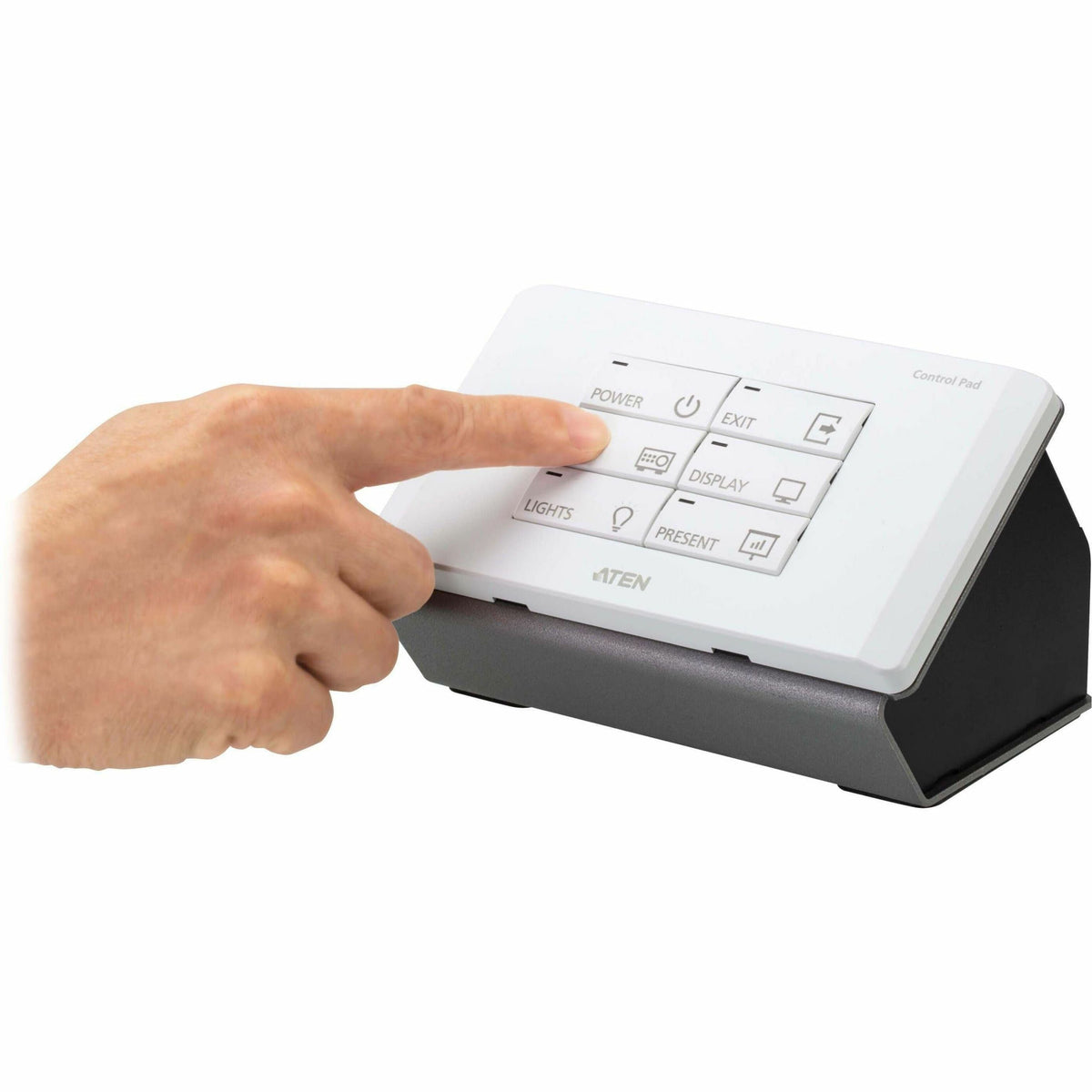

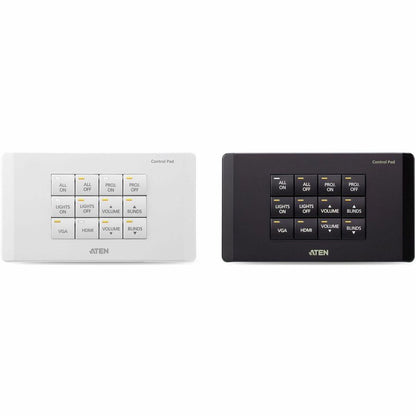

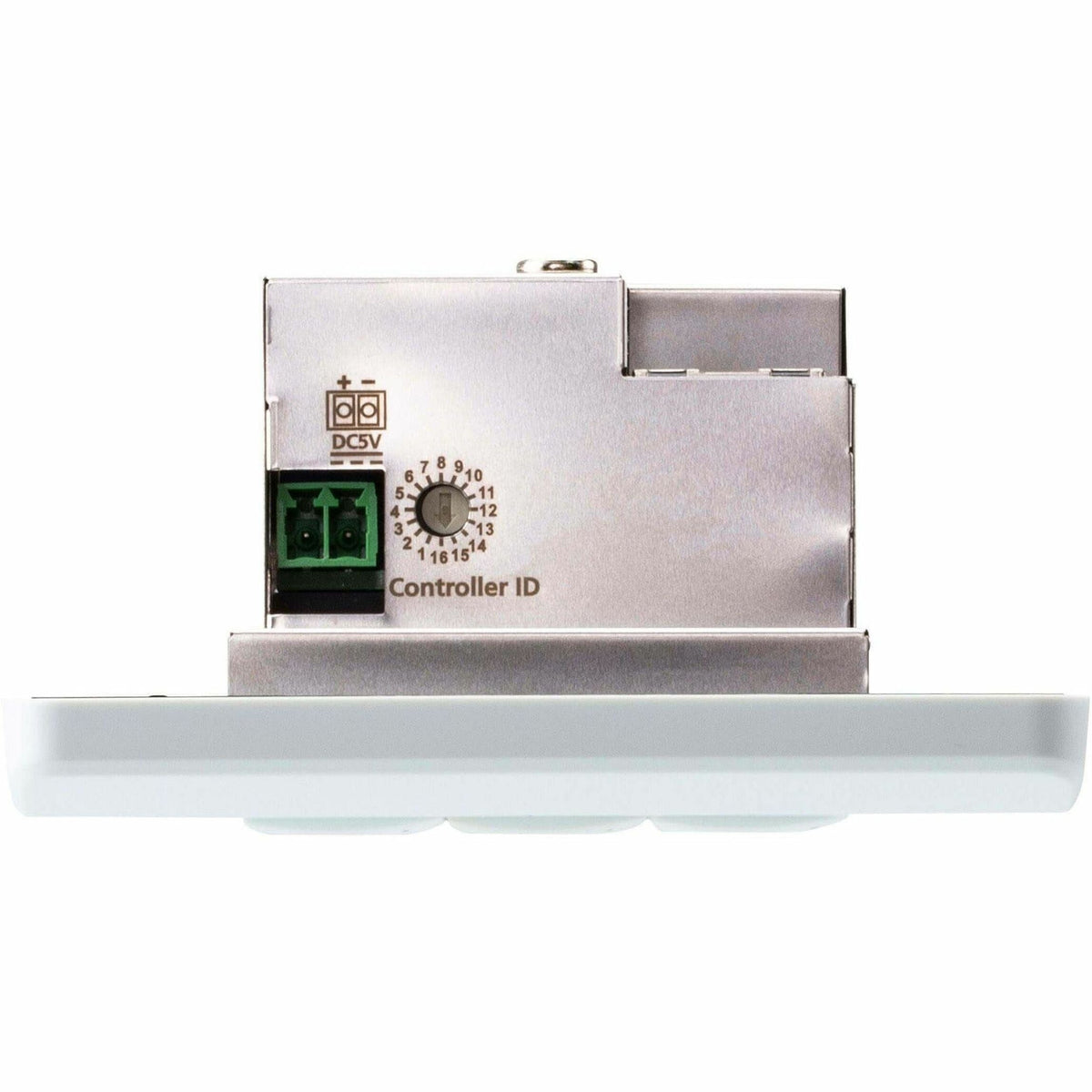

The VK0200 is a fully-customizable 12-button Control Pad that integrates a controller with a keypad as an all-in-one solution. Aimed for small / medium meeting room or classroom control the VK0200 offers a ready-to-use solution that easily connects the devices configures via the intuitive VK6000 Configurator Software and flexibly customizes keypad button functions and layout to fulfill most applications.

The ATEN Control System is an Ethernet-based management system that connects all the hardware devices found in a room for centralized control effortlessly. The VK0200 Control Pad not only plays the role as the main controller that connects the hardware devices but also acts as a control interface with customizable buttons and layout. Created with flexibility in mind the two-gang Control Pad can be laid out in 125 different combinations of 6 to 12 buttons that snap together as easy as Lego's. By connecting to the local network users will find it's effortless using VK6000 software to configure the desired control of any connected device from the Control Pad. With the ready-to-go combo Control Pad users have instant and smart control of the facilities from a Control Pad that can manage any device in the room.

• 1x VK0200 12-button Control Pad
• 1x Button Pack
• 6x Terminal Blocks
• 1x Faceplate
• 1x User Instructions

Keypad Layout

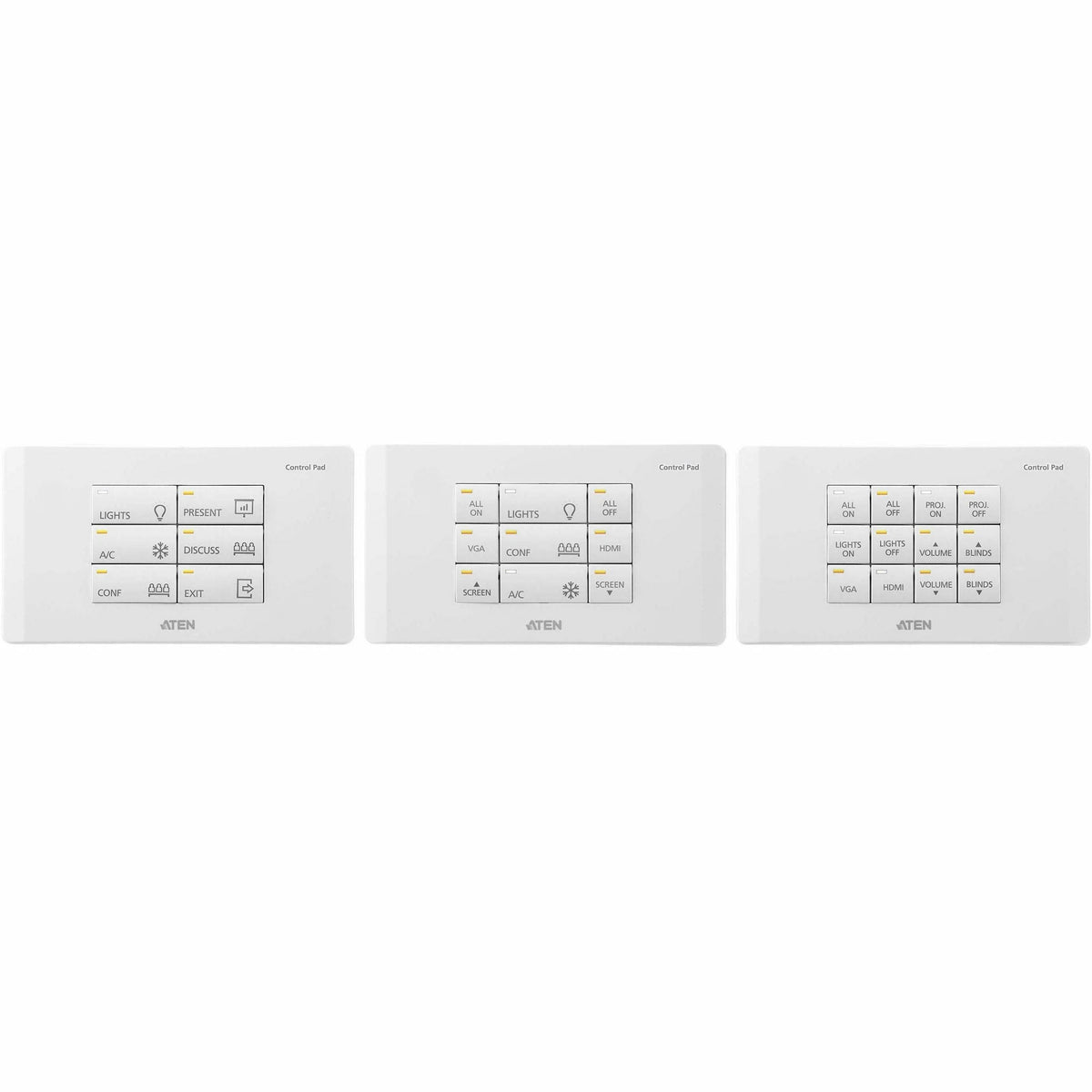

• 6~12 buttons customizable in 125 keypad layouts

Serial

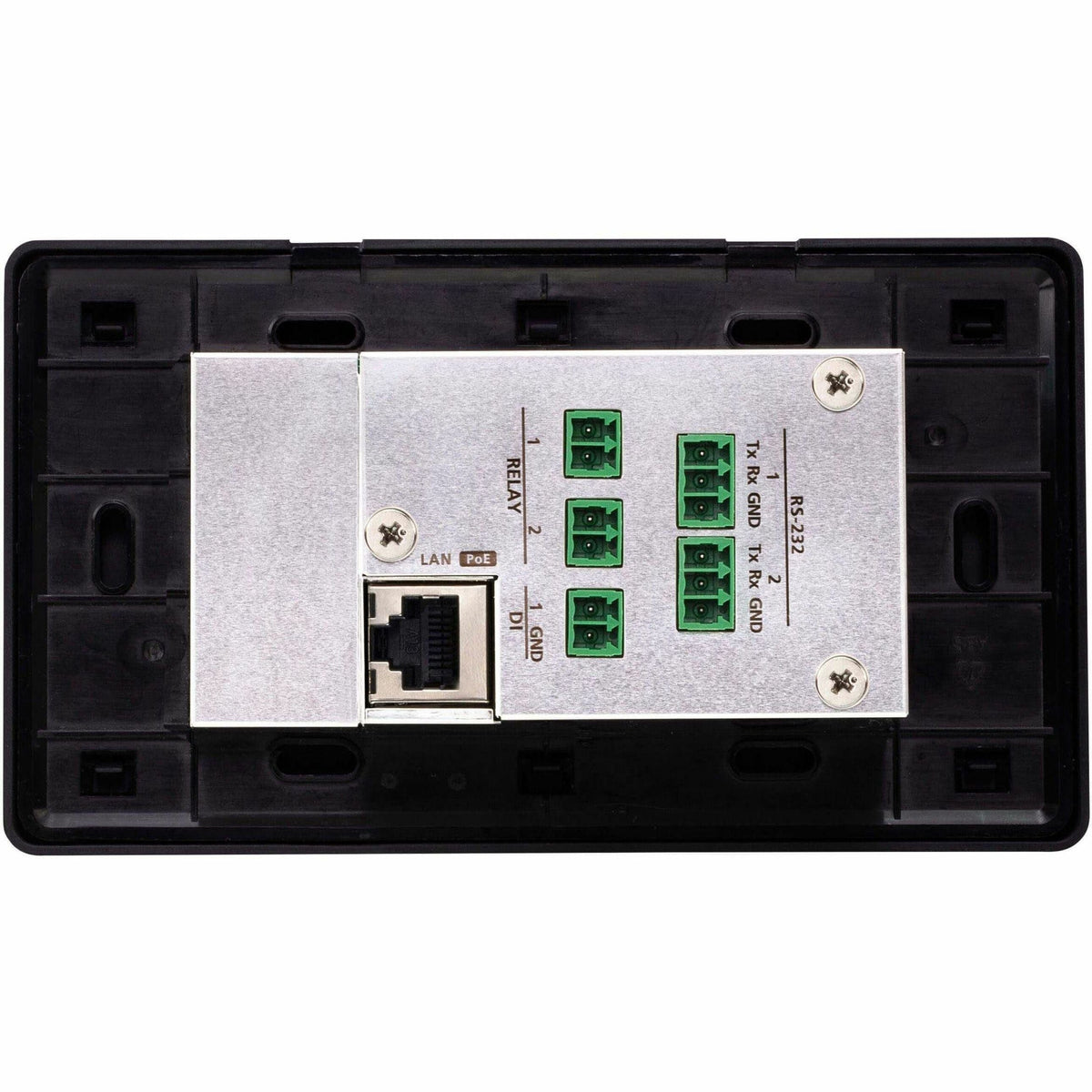

• 2 x Bi-directional RS-232 Port
• (2 x 3-Pole Terminal Block Connector);
• Baud Rate: 300 to 115200 (default: 9600);
• Data Bit: 8 (default) or 7;
• Stop Bit: 1 (default) or 2;
• Parity: None (default) even or odd

Relay

• 2 x Relay Channel (2 x 2-Pole Terminal Block Connector);
• Normally open isolated Relays;
• Contact Rating: Max 24 VDC 1A

I/O

• 1 x Digital Input Channel
• (1 x 2-Pole Terminal Block Connector);
• VDC Mode
• Input Voltage Range: 0 to 5 VDC;
• Programmable Range: 1 to 5 VDC;
• Dry Contact Mode
• Pull-up 2k ohms to + 5 VDC

Ethernet

• 1 x RJ-45 Female 10 / 100 Base-T
• Protocol Supported: ARP ICMP TCP / IP DHCP HTTPS SSH
• DHCP-enabled. The following default IP settings will be used if no IP is assigned within 30 seconds:
• IP: 192.168.0.60
• Subnet Mask: 255.255.255.0
