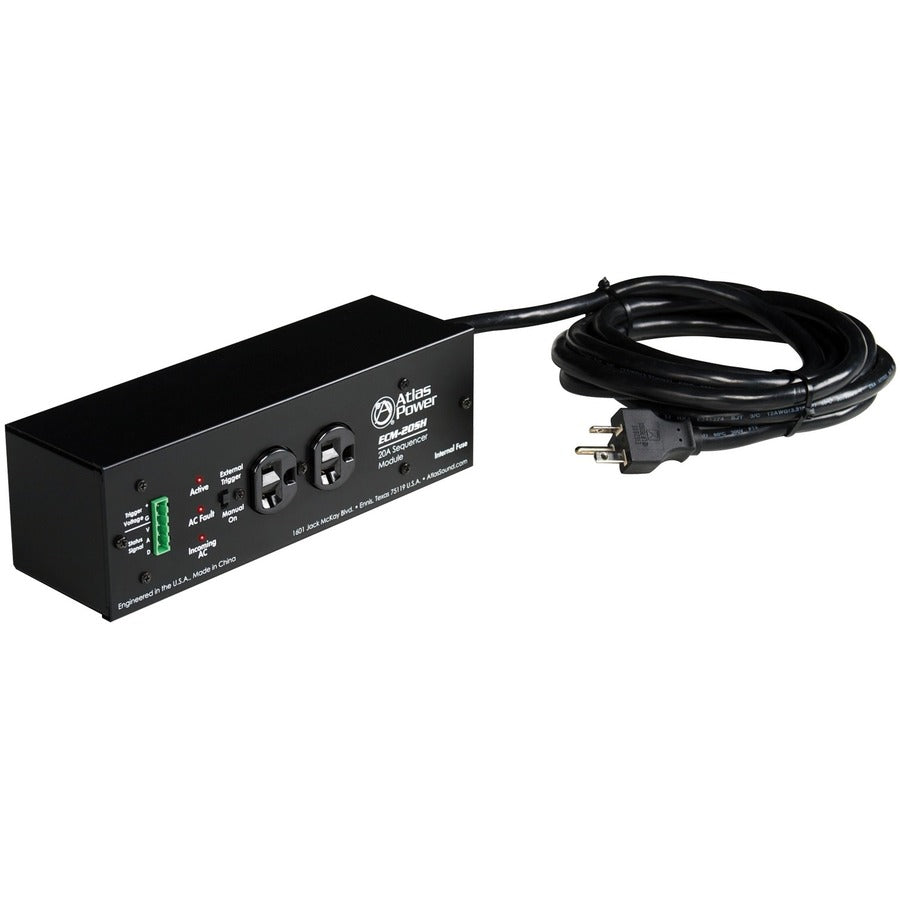

• AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor
    AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor
1 1

AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor

AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor

SKU: 1020278512      MFR: AtlasIED

Product Description

AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor - Spike AC Surge EMI / RFI protection - AC Power - 120 V AC Input

Manufacturer : AtlasIED

Manufacturer Part No : ECM-20SH

Features

  • 2 Outlets 20A
  • Radio Frequency and Electromagnetic Interference Filtering
  • Spike & Surge Suppression
  • Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
  • AC Fault Indicator
  • Fuse Protection @ 20A Slow Blow
  • Manual Bypass Switch
  • Active Outlet LED
  • RoHS Compliant

Product Details

Product TypeLine Conditioner
Brand NameAtlasIED
Protection TypeSpike
Receptacle TypeAC Power
Environmentally FriendlyYes
Receptacles Detail2 x AC Power
Cord Length9 ft
Height3"
Width8.5"
Depth3.5"
ManufacturerAtlasIED
Product ModelECM-20SH
Product Name20A Single Housing Power Conditioner and AC Spike Suppressor
Input Voltage120 V AC
Manufacturer Part NumberECM-20SH
Manufacturer Website Addresshttp://www.atlassound.com
Marketing InformationThe Atlas Power ECM-20SH is a 120V 60Hz AC 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller ECS-6RM or the ECS-3 up to 1000ft away.

The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch Incoming AC presence LED Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller Extreme Voltage Shutdown Circuitry (EVS) is active along with Voltage and Current status readings.
Limited Warranty1 Year
Weight (Approximate)5.50 lb
Certifications & StandardsMET (UL 1449)
Input Voltage Range102 V AC - 132 V AC
Additional Information
  • Active Outlet LED
  • AC Fault Indicator
  • MET (UL 1449)
Maximum Frequency60 Hz
Maximum Line Current6 kA
Country of OriginChina
View full details
$381.99 USD
$381.99
Sale Sold out

Out Of Stock


Update


Shipping calculated at checkout.

AtlasIED 20A Single Housing Power Conditioner and AC Spike Suppressor - Spike AC Surge EMI / RFI protection - AC Power - 120 V AC Input

Manufacturer : AtlasIED

Manufacturer Part No : ECM-20SH

Features

  • 2 Outlets 20A
  • Radio Frequency and Electromagnetic Interference Filtering
  • Spike & Surge Suppression
  • Extreme Voltage Shutdown (EVS) Below 102V or Above 132V AC Line
  • AC Fault Indicator
  • Fuse Protection @ 20A Slow Blow
  • Manual Bypass Switch
  • Active Outlet LED
  • RoHS Compliant

Product Details

Product TypeLine Conditioner
Brand NameAtlasIED
Protection TypeSpike
Receptacle TypeAC Power
Environmentally FriendlyYes
Receptacles Detail2 x AC Power
Cord Length9 ft
Height3"
Width8.5"
Depth3.5"
ManufacturerAtlasIED
Product ModelECM-20SH
Product Name20A Single Housing Power Conditioner and AC Spike Suppressor
Input Voltage120 V AC
Manufacturer Part NumberECM-20SH
Manufacturer Website Addresshttp://www.atlassound.com
Marketing InformationThe Atlas Power ECM-20SH is a 120V 60Hz AC 20A Single Housing (SH) Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an Atlas Power Sequence controller ECS-6RM or the ECS-3 up to 1000ft away.

The ECM-20SH features noise filtering for removing unwanted Radio Frequency Interference (RFI) and EMI filters to reduce noise from Electromagnetic Interference (EMI) caused by items such as electric motors or switching power supplies. If an AC spike or surge occurs the ECM-20SH also incorporates Clamping Suppression technology to prevent the unwanted energy from getting into your AV system. Other features include a Manual Bypass Switch Incoming AC presence LED Active LED and an AC Fault indicator. When interfaced with the ECS-6RM Sequencer controller Extreme Voltage Shutdown Circuitry (EVS) is active along with Voltage and Current status readings.
Limited Warranty1 Year
Weight (Approximate)5.50 lb
Certifications & StandardsMET (UL 1449)
Input Voltage Range102 V AC - 132 V AC
Additional Information
  • Active Outlet LED
  • AC Fault Indicator
  • MET (UL 1449)
Maximum Frequency60 Hz
Maximum Line Current6 kA
Country of OriginChina
