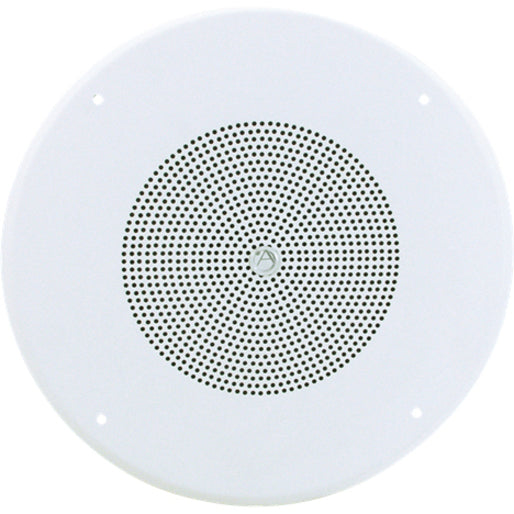

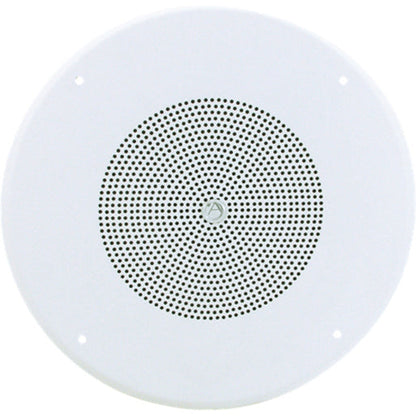

AtlasIED GD87W Speaker - 16 W RMS

AtlasIED GD87W Speaker - 16 W RMS

SKU: 1020327278      MFR: AtlasIED

GTIN: 612079179985

Product Description

AtlasIED GD87W Speaker - 16 W RMS - 25 W (PMPO) - 8" Ceramic Woofer - 3" Ceramic Tweeter - 45 Hz to 19 kHz - 8 Ohm

Manufacturer : AtlasIED

Manufacturer Part No : GD87W

Features

  • Handles up to 16 W of RMS power
  • Listen to deep lows and euphoric highs with a frequency range of sound from 45 Hz-19 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers

Product Details

Package Contents
  • 8" Coaxial Loudspeaker With 70.7V-8W Transformer And 62-8 Baffle
  • Screw Mount Hardware
Product TypeSpeaker
Manufacturer Part NumberGD87W
Impedance8 Ohm
Marketing InformationThe GD87W is a high performance coaxial loudspeaker package with performance specifications identical to the legendary Atlas Sound Model C803A. This similarity in sonic quality insures that existing C803A systems may be expanded with the new GD87W without any noticeable sonic or performance differences.

This coaxial loudspeaker features a 45Hz-19kHz (nominal) frequency response and a broad uniform dispersion pattern of 105° (2kHz octave band). The GD87 combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10oz. (260g) ceramic magnet; the tweeter has a 2.35 oz. (67g) ceramic magnet. The unit has an average sensitivity of 96dB (1W/1M).

The loudspeaker is matched with a high efficiency 8 watt 70.7V transformer with a maximum insertion loss of 0.6dB. This premium transformer is constructed of audio grade laminations and has a full range frequency response of +1dB from 50Hz to 15kHz. The primary taps are 1 2 4 and 8 watts.

The GD87W includes a factory installed 62-8 style CRS baffle with concealed loudspeaker mounting studs and includes screw mount hardware. The baffle finish is white powder coat epoxy.
Manufacturer Website Addresshttp://www.atlassound.com
Sensitivity96 dB
Weight (Approximate)2 lb
Product ModelGD87W
Product Name8" Coaxial Loudspeaker With 70.7V-8W Transformer And 62-8 Baffle
ManufacturerAtlasIED
RMS Output Power16 W
PMPO Output Power25 W
Certifications & Standards
  • ETL
  • UL1480
  • UL2043
Minimum Frequency Response45 Hz
Maximum Frequency Response19 kHz
Tweeter Driver Size3"
Woofer Driver Size8"
Tweeter Driver MaterialCeramic
Woofer Driver MaterialCeramic
Tweeter MaterialCeramic
Woofer MaterialCeramic
Depth2.88"
Product MaterialPaper
Brand NameAtlasIED
Diameter8.1"
