• Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant

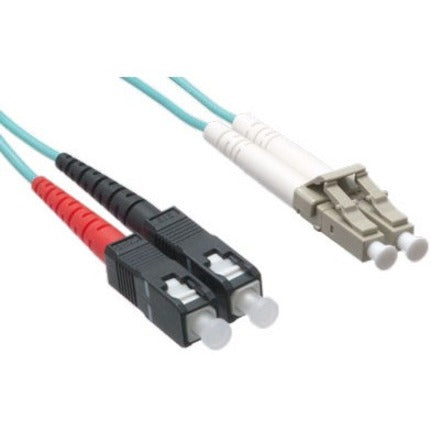

    Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant
1 1

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant

SKU: 1072375102      MFR: Axiom Memory Solutions

GTIN: 840177852671

Product Description

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant - 1.64 ft Fiber Optic Network Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x SC Network - Male - 100 Gbit/s - Patch Cable - OFNR - 50/125 µm - Aqua - TAA Compliant

Manufacturer : Axiom Memory Solutions

Manufacturer Part No : AXG95680

Features

  • Multimode Duplex Fiber Optic Cable 50/125 Om4 Aqua
  • OM4 Compliance: Effective Modal Bandwidth >= 4700 MHz-Km
  • Enabling 40/100 Gb/S Parallel Transmission Concepts
  • (2) LC/UPC Connectors On One Side (2) SC/UPC Connectors On Other
  • All Connectors Have Ceramic Ferrules
  • Duplex Clips Both Sides
  • Bend Insensitive
  • Bending radius 10mm
  • PVC (OFNR) Rated Aqua Jacket With Corning Glass
  • Maximum Attenuation - (dB/Km) 3.0/1.0
  • Wavelength (nm) 850/1300
  • Jacket OD: 1.8mm
  • Long Term Tensile Strength: 150n
  • Long Term Crush Resistance: 200n/100mm
  • Operating Temperature: -40° C To +70° C
  • Color: Aqua

Product Details

Product TypeNetwork Cable
Cable CharacteristicPatch Cable
Cable TypeFiber Optic
Connector Type on First EndLC Network - Male
Connector Type on Second EndSC Network - Male
Core/Cladding Diameter50/125 µm
Fiber Optic ModeMulti-mode
TAA CompliantYes
Product ColorAqua
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x SC Network - Male
Product MaterialCeramic
Jacket ColorAqua
Brand NameAxiom
FeaturesBendable
ManufacturerAxiom Memory Solutions
Product NameLC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Jacket TypeOFNR
Manufacturer Part NumberAXG95680
Manufacturer Website Addresshttp://www.axiommemory.com
Marketing Information

Attain optimal performance with Axiom OM4 laser-optimized multimode fiber patch cables. Axiom OM4 Fiber Optic Cables answer the call for increased bandwidth requirements used in cost-effective multi-mode systems. OM4 Cable provides an opportunity to future-proof cabling and networking infrastructure delivering increased bandwidth for next-generation 40 and 100Gb/s applications.
Axiom OM4 is completely backward compatible with existing OM3 applications. OM4 Cable is laser-optimized high bandwidth 50um multimode fiber has a more stringent test specification and provides an additional layer of performance that supports 10Gb 40Gb and 100Gb applications at longer distances.

Product Features:

  • Fully compatible with 50um multimode fiber applications
  • Multimode fiber construction - 50/125 diameter core and cladding
  • Meets minimum reach distances standards for 10Gb 40Gb and 100Gb Ethernet distance performance requirements
  • Designed for use in multi-mode next-generation high bandwidth applications
  • Factory terminated for superior performance
  • Meets and exceeds industry standards for insertion loss
  • 100% optically tested
  • Limited lifetime warranty
Material DetailsCeramic - Ferrule
Limited WarrantyLifetime
Cable Length1.64 ft
View full details
$46.99 USD
$46.99
Sale Sold out

Dropship


Update


Shipping calculated at checkout.

Axiom LC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant - 1.64 ft Fiber Optic Network Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x SC Network - Male - 100 Gbit/s - Patch Cable - OFNR - 50/125 µm - Aqua - TAA Compliant

Manufacturer : Axiom Memory Solutions

Manufacturer Part No : AXG95680

Features

  • Multimode Duplex Fiber Optic Cable 50/125 Om4 Aqua
  • OM4 Compliance: Effective Modal Bandwidth >= 4700 MHz-Km
  • Enabling 40/100 Gb/S Parallel Transmission Concepts
  • (2) LC/UPC Connectors On One Side (2) SC/UPC Connectors On Other
  • All Connectors Have Ceramic Ferrules
  • Duplex Clips Both Sides
  • Bend Insensitive
  • Bending radius 10mm
  • PVC (OFNR) Rated Aqua Jacket With Corning Glass
  • Maximum Attenuation - (dB/Km) 3.0/1.0
  • Wavelength (nm) 850/1300
  • Jacket OD: 1.8mm
  • Long Term Tensile Strength: 150n
  • Long Term Crush Resistance: 200n/100mm
  • Operating Temperature: -40° C To +70° C
  • Color: Aqua

Product Details

Product TypeNetwork Cable
Cable CharacteristicPatch Cable
Cable TypeFiber Optic
Connector Type on First EndLC Network - Male
Connector Type on Second EndSC Network - Male
Core/Cladding Diameter50/125 µm
Fiber Optic ModeMulti-mode
TAA CompliantYes
Product ColorAqua
Connector on First End Details2 x LC Network - Male
Connector on Second End Details2 x SC Network - Male
Product MaterialCeramic
Jacket ColorAqua
Brand NameAxiom
FeaturesBendable
ManufacturerAxiom Memory Solutions
Product NameLC/SC Multimode Duplex OM4 50/125 Fiber Optic Cable 0.5m - TAA Compliant
Data Transfer Rate100 Gbit/s
Device SupportedNetwork Device
Jacket TypeOFNR
Manufacturer Part NumberAXG95680
Manufacturer Website Addresshttp://www.axiommemory.com
Marketing Information

Attain optimal performance with Axiom OM4 laser-optimized multimode fiber patch cables. Axiom OM4 Fiber Optic Cables answer the call for increased bandwidth requirements used in cost-effective multi-mode systems. OM4 Cable provides an opportunity to future-proof cabling and networking infrastructure delivering increased bandwidth for next-generation 40 and 100Gb/s applications.
Axiom OM4 is completely backward compatible with existing OM3 applications. OM4 Cable is laser-optimized high bandwidth 50um multimode fiber has a more stringent test specification and provides an additional layer of performance that supports 10Gb 40Gb and 100Gb applications at longer distances.

Product Features:

  • Fully compatible with 50um multimode fiber applications
  • Multimode fiber construction - 50/125 diameter core and cladding
  • Meets minimum reach distances standards for 10Gb 40Gb and 100Gb Ethernet distance performance requirements
  • Designed for use in multi-mode next-generation high bandwidth applications
  • Factory terminated for superior performance
  • Meets and exceeds industry standards for insertion loss
  • 100% optically tested
  • Limited lifetime warranty
Material DetailsCeramic - Ferrule
Limited WarrantyLifetime
Cable Length1.64 ft
