• Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant
    Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant
1 1

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant

SKU: 1077845312      MFR: Axiom Memory Solutions

GTIN: 840177897153

Product Description

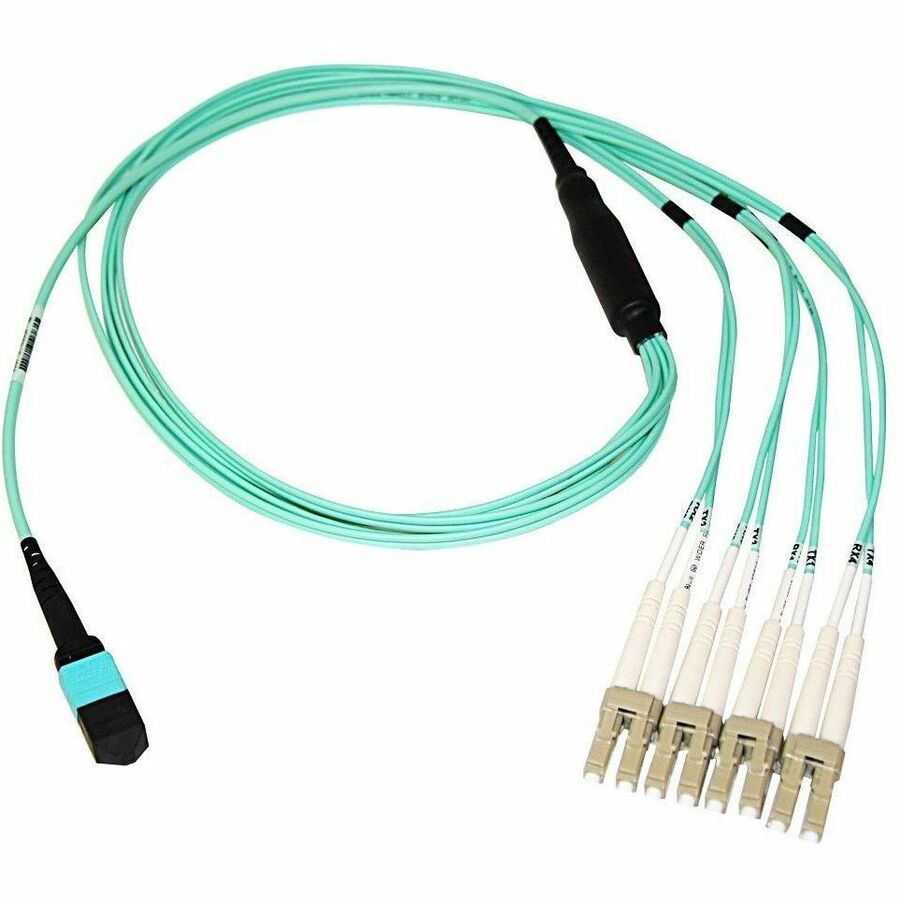

Axiom MPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant - 6.56 ft Fiber Optic Network Cable for Network Device - First End: 8 x MTP/MPO Network - Female - Second End: 4 x LC Network - Male - Plenum OFNP - 50/125 µm - Aqua - TAA Compliant

Manufacturer : Axiom Memory Solutions

Manufacturer Part No : AXG96635

Features

  • 8 fiber - to 4 LC Duplex Fiber Optic Cable 50/125 OM4 Aqua
  • 8 Fiber MTP/MPO (Female) and (4) LC Duplex Connectors One Side
  • All Connectors Have Ceramic Ferrules
  • Duplex Clips On LC Side
  • Plenum (OFNP) Rated Aqua Jacket With Corning Glass
  • Jacket OD: 3.0mm (MPO) 2.0mm (LC)
  • Typical Return Lossmin.: MTP=20dB LC=30dB
  • Typical Insertion Loss (MPO): 0.16dB
  • Typical Insertion Loss (LC): 0.35dB
  • Long Term Tensile Strength: 150n
  • Long Term Crush Resistance: 200n/100mm
  • Operating Temperature: -40° C To +70° C
  • Color: Aqua

Product Details

Product TypeNetwork Cable
Cable TypeFiber Optic
Connector Type on First EndMTP/MPO Network - Female
Connector Type on Second EndLC Network - Male
Fiber Optic ModeMulti-mode
TAA CompliantYes
Product ColorAqua
Brand NameAxiom
Cable Length6.56 ft
Environmentally FriendlyYes
Environmental CertificationRoHS
Core/Cladding Diameter50/125 µm
Fiber TypeDuplex
Connector on First End Details8 x MTP/MPO Network - Female
Connector on Second End Details4 x LC Network - Male
Product MaterialCeramic
Connector Gender on First EndFemale
Connector Gender on Second EndMale
Fiber CategoryOM4
FeaturesCorning Glass
ManufacturerAxiom Memory Solutions
Product NameMPO Female to 4 LC Multimode OM4 50/125 Fiber Breakout Cable 2m - TAA Compliant
Device SupportedNetwork Device
Jacket TypePlenum
Manufacturer Part NumberAXG96635
Manufacturer Website Addresshttp://www.axiommemory.com
Marketing Information

Axiom offers a full line of efficient & cost effective cabling solutions for your networking project. We use only the finest components and the latest construction technologies to optimize cable performance and ensure compliance to industry specifications for each cable and its designated application. We offer a variety of solutions including fiber infiniband antenna & stacking cables. Whether you're upgrading components or installing a brand new network you'll receive the highest quality connectivity products a Lifetime Warranty and free technical support.
Material DetailsCeramic Ferrules
Limited WarrantyLifetime
