• AXIS 90 W Midspan AC/DC

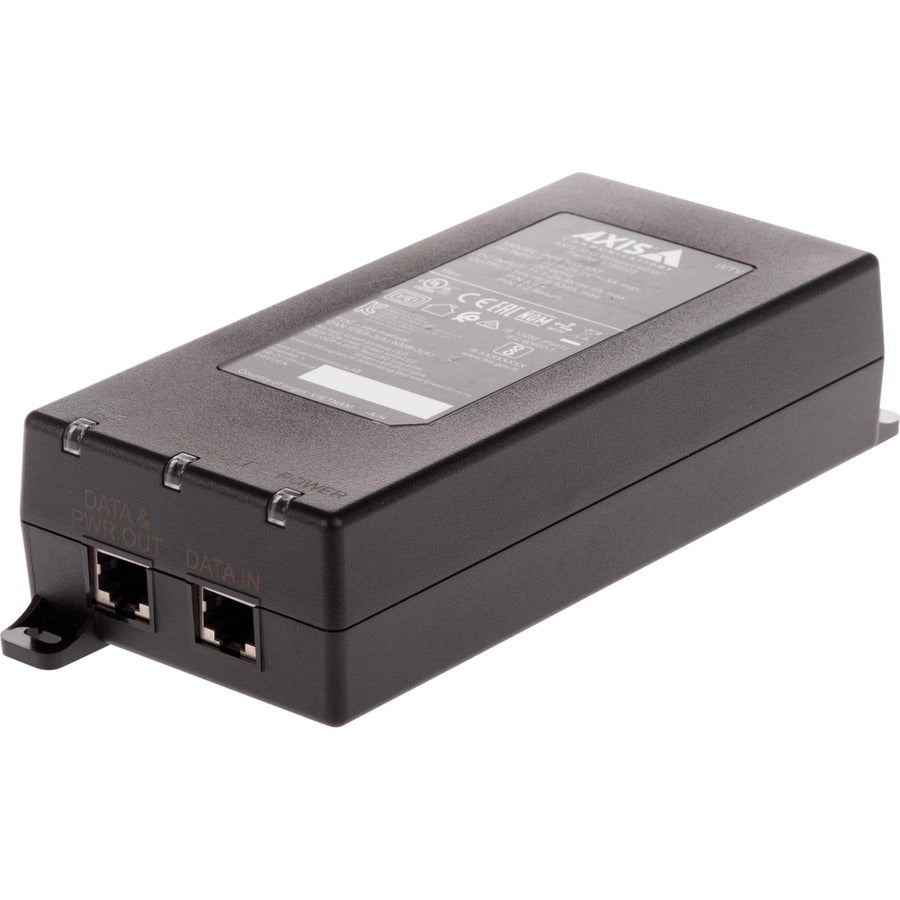

    AXIS 90 W Midspan AC/DC
1 1

AXIS 90 W Midspan AC/DC

AXIS 90 W Midspan AC/DC

SKU: 1071789506      MFR: Axis Communications

GTIN: 7331021074729

Product Description

AXIS 90 W Midspan AC/DC - 24 V AC 20 V DC 26.4 V DC Input - 56 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 90 W - Black

Manufacturer : Axis Communications

Manufacturer Part No : 02209-001

Features

  • 24 V AC and 20-26.4 V DC input
  • Up to IEEE 802.3bt (90 W) output
  • Ideal for retrofitting PTZ
  • Compatible with Axis PoE devices
  • Flexible installation

Product Details

Product TypePoE Injector
Product ColorBlack
Brand NameAXIS
Output Ports1 x Gigabit PoE
Environmentally FriendlyYes
Environmental CertificationWEEE
Maximum Output Power90 W
Maximum Output Voltage56 V DC
Height1.7"
Width3.1"
Depth7.4"
Certifications & Standards
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Safety:
  • IS 13252
  • IEC/EN/UL 62368-1
Environment:
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-14
  • IEC 60068-2-78
  • IEC 60068-2-6
  • IEC 60068-2-27
EMC:
  • EN 55024
  • EN 55032 Class A
  • EN 61000-6-1
  • EN 61000-6-2
  • FCC Part 15 Subpart B Class A
  • KC KN32 Class A
  • KC KN35
  • RCM AS/NZS CISPR 32 Class A
  • VCCI Class A
  • EAC
Input Ports1 x Gigabit Ethernet
Compatibility
  • P8815-2 3D People Counter
  • D4100-E Network Strobe Siren

Fixed Box Cameras:

  • M1055-L
  • M1075-L
  • M1135 Mk II
  • M1135-E Mk II
  • M1137 Mk II
  • M1137-E Mk II
  • P1375
  • P1375-E
  • P1377
  • P1377-LE
  • P1378
  • P1378-LE
  • Q1615 Mk III
  • Q1615-LE Mk III
  • Q1656
  • Q1656-B
  • Q1656-BE
  • Q1656-BLE
  • Q1656-DLE
  • Q1656-LE
Fixed Bullet Cameras:
  • M2035-LE
  • M2036-LE
  • P1455-LE
  • P1465-LE
  • P1467-LE
  • P1468-LE
  • Q1700-LE
  • Q1715
  • Q1785-LE
  • Q1786-LE
  • Q1798-LE
Fixed Dome Cameras:
  • M3057-PLVE Mk II
  • M3058-PLVE
  • M3067-P
  • M3068-P
  • M3077-PLVE
  • M3085-V
  • M3086-V
  • M3088-V
  • M3115-LVE
  • M3116-LVE
  • M3215-LVE
  • M3216-LVE
  • M3905-R
  • M4216-LV
  • M4216-V
  • M4308-PLE
  • P3255-LVE
  • P3265-LV
  • P3265-LVE
  • P3265-V
  • P3267-LV
  • P3267-LVE
  • P3268-LV
  • P3268-LVE
  • P3719-PLE
  • P3727-PLE
  • P3904-R Mk II
  • P3905-R Mk II
  • P3925-LRE
  • P3925-R
  • P3935-LR
  • P4705-PLVE
  • P4707-PLVE
  • P9106-V
  • Q3536-LVE
  • Q3538-LVE
  • Q3538-SLVE
  • Q9216-SLV
Modular Cameras:
  • F34
  • F41
  • F44
  • F9104-B
  • F9111
  • F9114
  • F9114-B
  • FA51
  • FA51-B
  • P1245
  • P1265
  • P1275
  • P1280-E
  • P1290-E
Network I/O Relay Modules:
  • A9161
  • A9188-VE
Network Speakers:
  • C1310-E
  • C1410
  • C1610-VE
Onboard Cameras:
  • F41
  • M3905-R
  • P3904-R Mk II
  • P3905-R Mk II
  • P3925-LRE
  • P3925-R
  • P3935-LR
PTZ Cameras:
  • M5000
  • M5000-G
  • M5074
  • M5075
  • M5075-G
  • M5525-E
  • P5676-LE
  • Q6010-E
  • Q6074
  • Q6074-E
  • Q6075
  • Q6075-E
  • Q6078-E
  • Q6100-E
  • Q6135-LE
  • Q6225-LE
  • Q6315-LE
  • Q6318-LE
Panoramic Cameras:
  • M3057-PLVE Mk II
  • M3058-PLVE
  • M3067-P
  • M3068-P
  • M3077-PLVE
  • M4308-PLE
  • P3719-PLE
  • P3727-PLE
  • P4705-PLVE
  • P4707-PLVE
Specialty Cameras:
  • P9106-V
  • Q9216-SLV
Thermal Cameras:
  • P1280-E
  • P1290-E
  • Q1941-E
  • Q1941-E
  • Q1942-E
  • Q1942-E
  • Q1951-E
  • Q1952-E
  • Q1961-TE
Video Encoders:
  • M7104
  • P7304
Form FactorWall/Shelf/DIN Rail Mountable
ManufacturerAxis Communications
Product Name90 W Midspan AC/DC
Input Voltage24 V AC
Manufacturer Part Number02209001
Manufacturer Website Addresshttp://www.axis.com
Marketing Information

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.

24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box dome or PTZ cameras.

20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it for example in an ATM.
Package Contents
  • 90 W Midspan AC/DC
  • Installation Guide
Limited Warranty3 Year
Weight (Approximate)1.10 lb
View full details
$251.99 USD
$251.99
Sale Sold out

Back Order

Get it by Tue, Jul 28 - Sun, Aug 02


Update


Shipping calculated at checkout.

AXIS 90 W Midspan AC/DC - 24 V AC 20 V DC 26.4 V DC Input - 56 V DC Output - 1 x Gigabit Ethernet Input Port(s) - 1 x Gigabit PoE Output Port(s) - 90 W - Black

Manufacturer : Axis Communications

Manufacturer Part No : 02209-001

Features

  • 24 V AC and 20-26.4 V DC input
  • Up to IEEE 802.3bt (90 W) output
  • Ideal for retrofitting PTZ
  • Compatible with Axis PoE devices
  • Flexible installation

Product Details

Product TypePoE Injector
Product ColorBlack
Brand NameAXIS
Output Ports1 x Gigabit PoE
Environmentally FriendlyYes
Environmental CertificationWEEE
Maximum Output Power90 W
Maximum Output Voltage56 V DC
Height1.7"
Width3.1"
Depth7.4"
Certifications & Standards
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
Safety:
  • IS 13252
  • IEC/EN/UL 62368-1
Environment:
  • IEC 60068-2-1
  • IEC 60068-2-2
  • IEC 60068-2-14
  • IEC 60068-2-78
  • IEC 60068-2-6
  • IEC 60068-2-27
EMC:
  • EN 55024
  • EN 55032 Class A
  • EN 61000-6-1
  • EN 61000-6-2
  • FCC Part 15 Subpart B Class A
  • KC KN32 Class A
  • KC KN35
  • RCM AS/NZS CISPR 32 Class A
  • VCCI Class A
  • EAC
Input Ports1 x Gigabit Ethernet
Compatibility
  • P8815-2 3D People Counter
  • D4100-E Network Strobe Siren

Fixed Box Cameras:

  • M1055-L
  • M1075-L
  • M1135 Mk II
  • M1135-E Mk II
  • M1137 Mk II
  • M1137-E Mk II
  • P1375
  • P1375-E
  • P1377
  • P1377-LE
  • P1378
  • P1378-LE
  • Q1615 Mk III
  • Q1615-LE Mk III
  • Q1656
  • Q1656-B
  • Q1656-BE
  • Q1656-BLE
  • Q1656-DLE
  • Q1656-LE
Fixed Bullet Cameras:
  • M2035-LE
  • M2036-LE
  • P1455-LE
  • P1465-LE
  • P1467-LE
  • P1468-LE
  • Q1700-LE
  • Q1715
  • Q1785-LE
  • Q1786-LE
  • Q1798-LE
Fixed Dome Cameras:
  • M3057-PLVE Mk II
  • M3058-PLVE
  • M3067-P
  • M3068-P
  • M3077-PLVE
  • M3085-V
  • M3086-V
  • M3088-V
  • M3115-LVE
  • M3116-LVE
  • M3215-LVE
  • M3216-LVE
  • M3905-R
  • M4216-LV
  • M4216-V
  • M4308-PLE
  • P3255-LVE
  • P3265-LV
  • P3265-LVE
  • P3265-V
  • P3267-LV
  • P3267-LVE
  • P3268-LV
  • P3268-LVE
  • P3719-PLE
  • P3727-PLE
  • P3904-R Mk II
  • P3905-R Mk II
  • P3925-LRE
  • P3925-R
  • P3935-LR
  • P4705-PLVE
  • P4707-PLVE
  • P9106-V
  • Q3536-LVE
  • Q3538-LVE
  • Q3538-SLVE
  • Q9216-SLV
Modular Cameras:
  • F34
  • F41
  • F44
  • F9104-B
  • F9111
  • F9114
  • F9114-B
  • FA51
  • FA51-B
  • P1245
  • P1265
  • P1275
  • P1280-E
  • P1290-E
Network I/O Relay Modules:
  • A9161
  • A9188-VE
Network Speakers:
  • C1310-E
  • C1410
  • C1610-VE
Onboard Cameras:
  • F41
  • M3905-R
  • P3904-R Mk II
  • P3905-R Mk II
  • P3925-LRE
  • P3925-R
  • P3935-LR
PTZ Cameras:
  • M5000
  • M5000-G
  • M5074
  • M5075
  • M5075-G
  • M5525-E
  • P5676-LE
  • Q6010-E
  • Q6074
  • Q6074-E
  • Q6075
  • Q6075-E
  • Q6078-E
  • Q6100-E
  • Q6135-LE
  • Q6225-LE
  • Q6315-LE
  • Q6318-LE
Panoramic Cameras:
  • M3057-PLVE Mk II
  • M3058-PLVE
  • M3067-P
  • M3068-P
  • M3077-PLVE
  • M4308-PLE
  • P3719-PLE
  • P3727-PLE
  • P4705-PLVE
  • P4707-PLVE
Specialty Cameras:
  • P9106-V
  • Q9216-SLV
Thermal Cameras:
  • P1280-E
  • P1290-E
  • Q1941-E
  • Q1941-E
  • Q1942-E
  • Q1942-E
  • Q1951-E
  • Q1952-E
  • Q1961-TE
Video Encoders:
  • M7104
  • P7304
Form FactorWall/Shelf/DIN Rail Mountable
ManufacturerAxis Communications
Product Name90 W Midspan AC/DC
Input Voltage24 V AC
Manufacturer Part Number02209001
Manufacturer Website Addresshttp://www.axis.com
Marketing Information

AXIS 90 W Midspan AC/DC is perfect for installations where mains power is not an option. With a power input of either 24 V AC or 20-26.4 V DC it can deliver up to IEEE 802.3bt (90 W) to your network device. AXIS 90 W Midspan AC/DC is plug-and-play and compatible with all Axis PoE devices which require up to 90 W power.

24 V AC can be needed in harsh environments where new cabling or installations are not an option and you need to retrofit box dome or PTZ cameras.

20-26.4 V DC can be used where battery back-up is needed or for solar-powered installations. Or when the network device is built in another equipment and is powered directly from it for example in an ATM.
Package Contents
  • 90 W Midspan AC/DC
  • Installation Guide
Limited Warranty3 Year
Weight (Approximate)1.10 lb
