AXIS Network I/O Relay Modules:

• 0821-001
• 0820-001
• 0831-001

AXIS Readers:

• 02144-001
• 02145-001

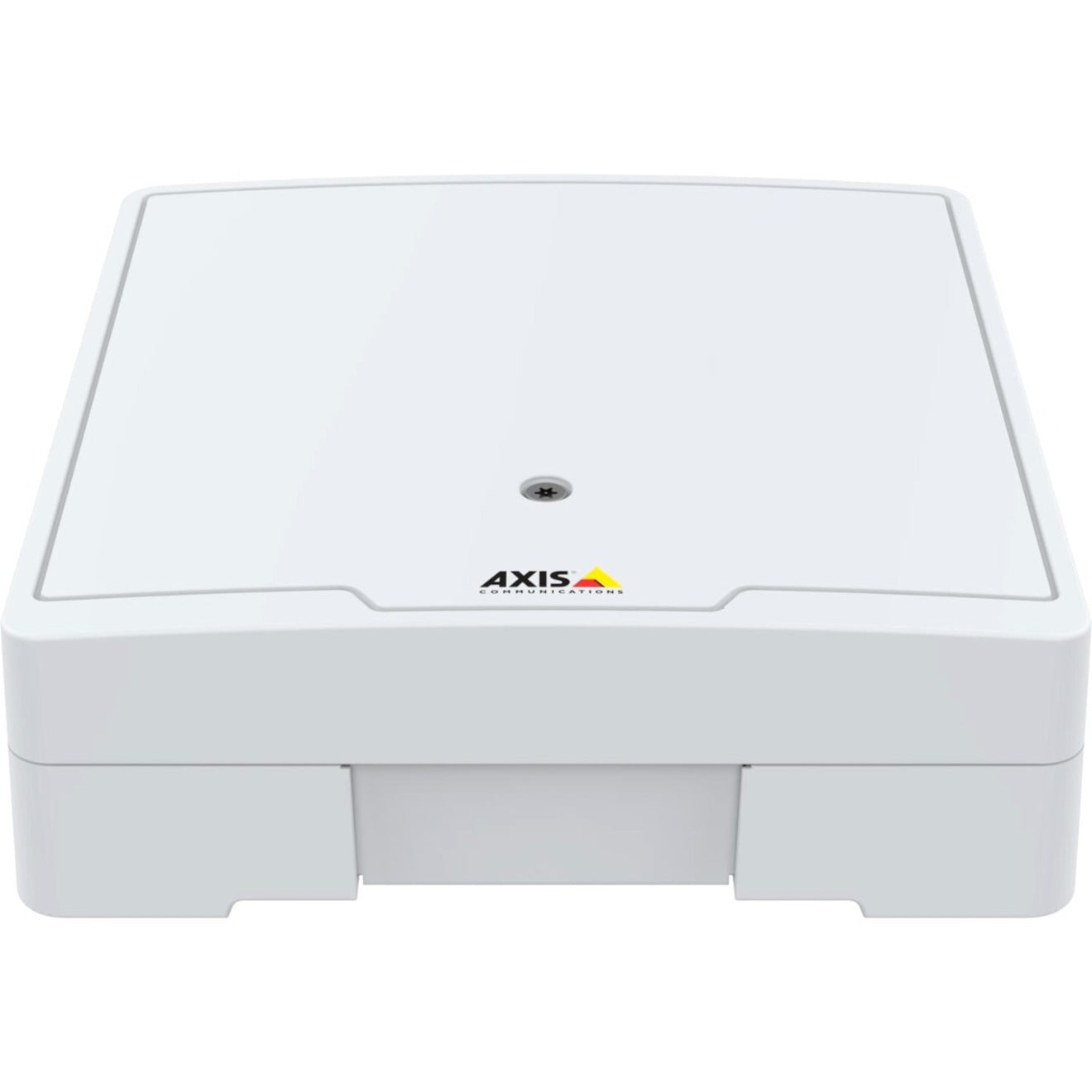

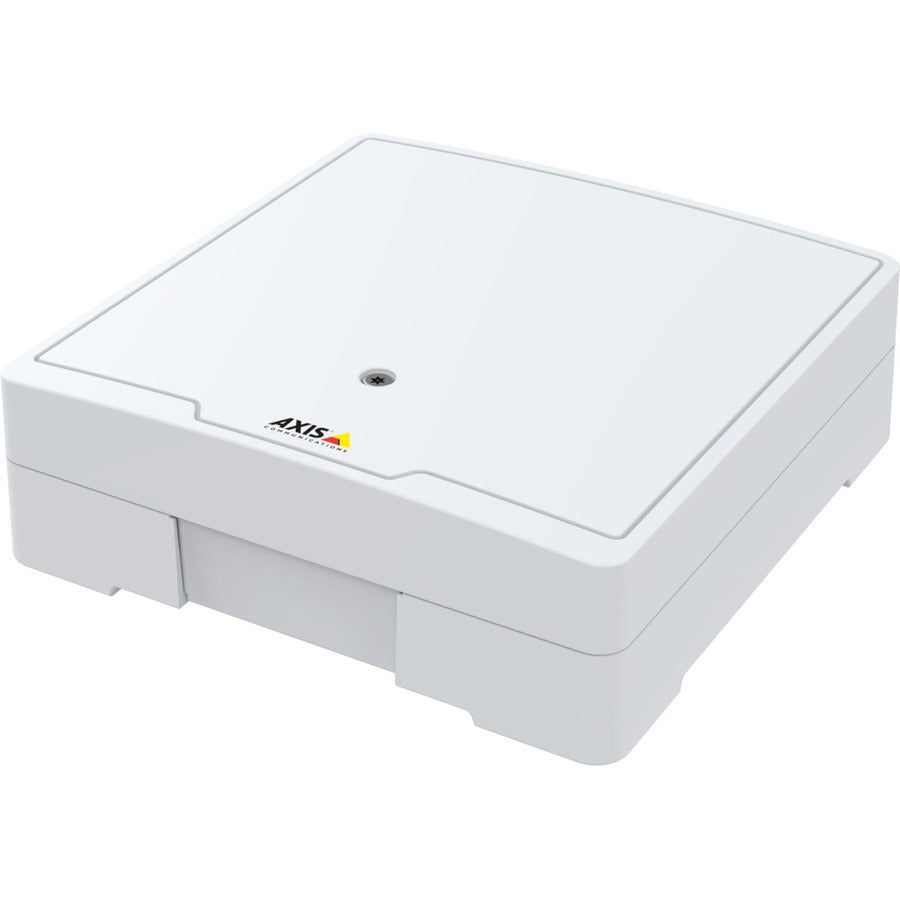

Fully integrated within Axis end-to-end solutions and supported by our partner solutions this smart edge-based door controller is optimized for both small and large installations. It includes everything you need to control two doors.

Versatile and high performance

Ideal for various installation and applications this robust solution offers powerful hardware with extra processing power memory and storage. Designed to withstand harsh conditions it can operate in temperatures from -40 °C to 70 °C (-40 °F to 158 °F). With support for PoE+ and DC you can directly power the onboard lock. Plus with six configurable auxiliary I/O ports it's easy to integrate with sensors and external security systems for instance to detect breaking glass intrusion or emergency alarms. This advanced device supports a DIN rail mount for fast and easy installation on walls. Plus with plenum rating it's suitable for installation in plenum spaces and eliminates the need for an additional installation cabinet.

Reliable and secure

Featuring four reader connections as well as two Form C relays to power the onboard lock AXIS A1610 includes everything you need to control two doors. Plus it's all powered using one PoE cable. Thanks to intelligence on the edge this smart door controller can internally handle all tasks related to door access-even if the network is down. Additionally built-in cybersecurity features help prevent unauthorized access and safeguard your system. For instance Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. Furthermore it ensures cryptographic keys such as the OSPD Secure Channel encryption key are safely and securely stored in the onboard EAL6+ Certified compute module.

Grows with your needs

AXIS A1610 is fully integrated within Axis end-to-end solution and supported by our partner solutions. This scalable solution is optimized for both small and large installations and is designed to meet your changing needs as they develop. You can store up to 250k credentials and 250k event logs on the device itself. Plus it ensures flexible and secure authentication using different types of credentials. For instance you can grant access to hundreds of thousands of visitors using traditional access types such as card or PIN codes as well as dynamic QR code for visitor access and license plates for vehicle access.
